Assembly and Connection
11.1

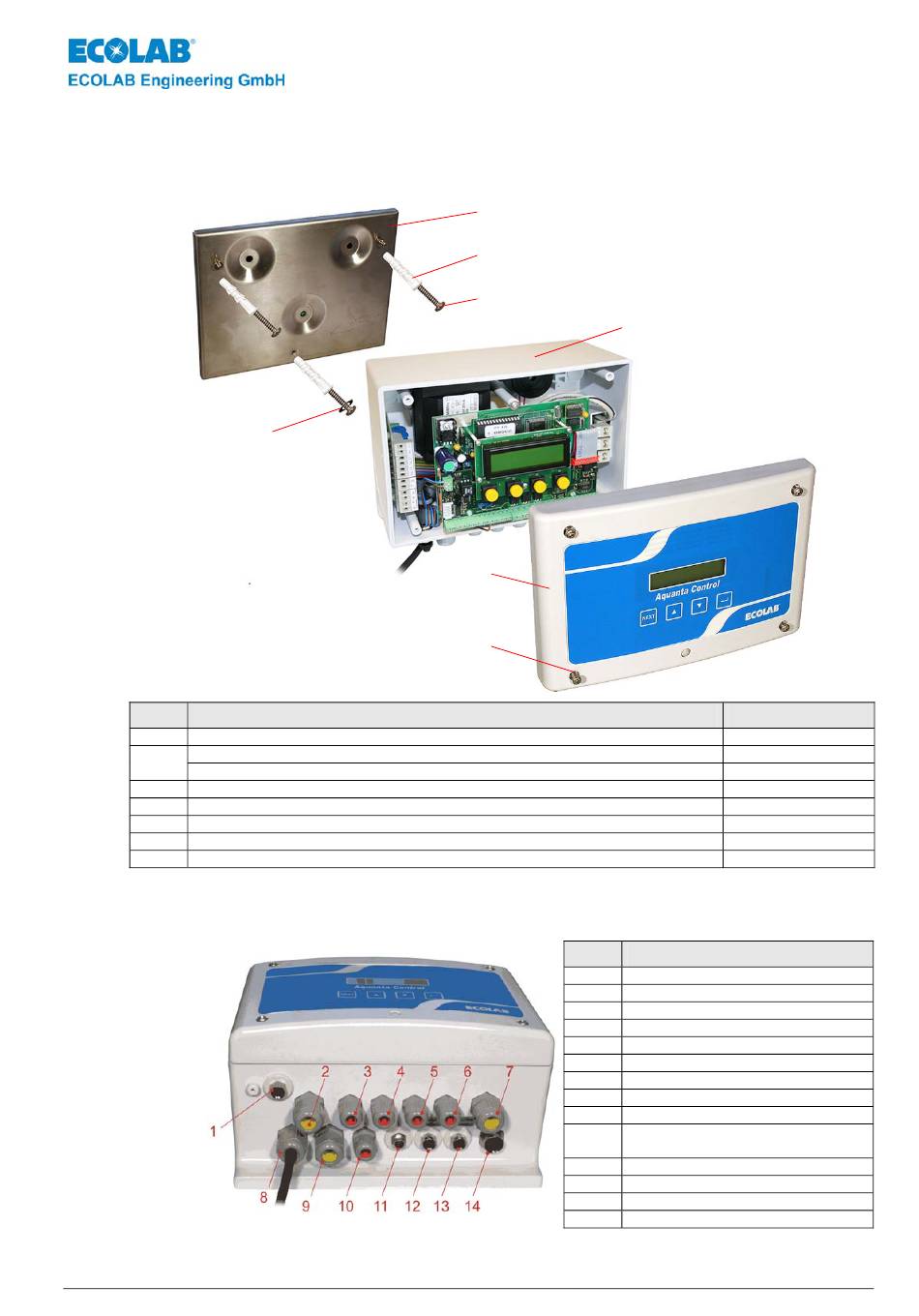

Overview "Wall Assembly"
Fig. 11.1
Item
Designation
1
Housing
2
Lid
Front label Aquanta Control
3
Screw (4x)
4
Screw (3x)
5
Washer (2x)
6
Plug (3x)
7
Mounting plate
11.2
Overview "Electrical Connection"
Fig. 11.2
417101386_AquantaControl_II.doc
5
7
6
x3
4
x3
1
2
3
x4
Item
Designation
1
RS485 interface coupling
2
Crate counter
3
WZ I
4
WZ II
5
LL-R
6
LL-K
7
LL-S / LL-A
8
Mains transformer
9
Pump control
10
Switch for detergent 1 and detergent
2 metering
11
Mains disconnection module
12
Temperature sensor dry zone
13
Temperature sensor rinsing
14
Probe
- 83 -
Article No.
32350161
32350105
32350151
413071172
413109489
413501720
417200003
223512
Rev. 4-2/10
