12
Getting started

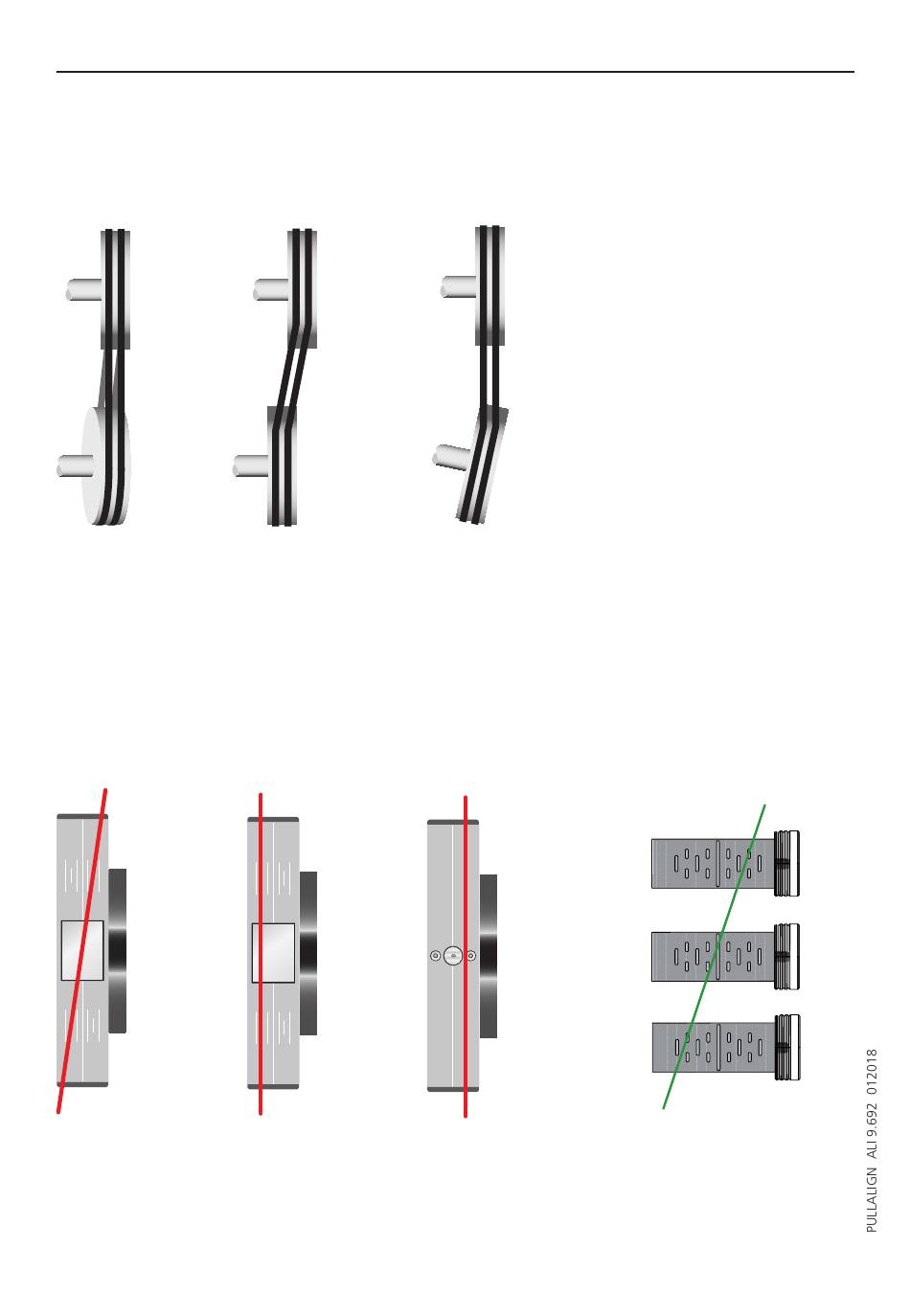

Misalignment conditions as they appear on a machine

Vertical angularity
Misalignment conditions as observed on the
PULLALIGN units
Vertical angularity
The images above depict the condition observed
when using the PULLALIGN reflector ALI 2.300.
Offset
Offset
Horizontal angularity
Horizontal angularity
The image above depicts the condition
observed when using PULLALIGN
targets ALI 2.302 or ALI 2.303.
Depending on type of laser used, the
beam could be either green or red.
Angular and offset
