Serial path signatures
SETUP CONDITIONS
lnternal Signatures (Auxiliary Board)
SA CLOCK
1
TP 1411 (Digital Board)
SA START
- L
SA STOP
1
I
Pin 9 of U1520 (Digital Board)
SA GND
TP 1420 (Digital Board)
NOTE
Power up DC 5010 while holding in CH A ATTEN
button
to
get signatures,
Auxiliary board circuit locations

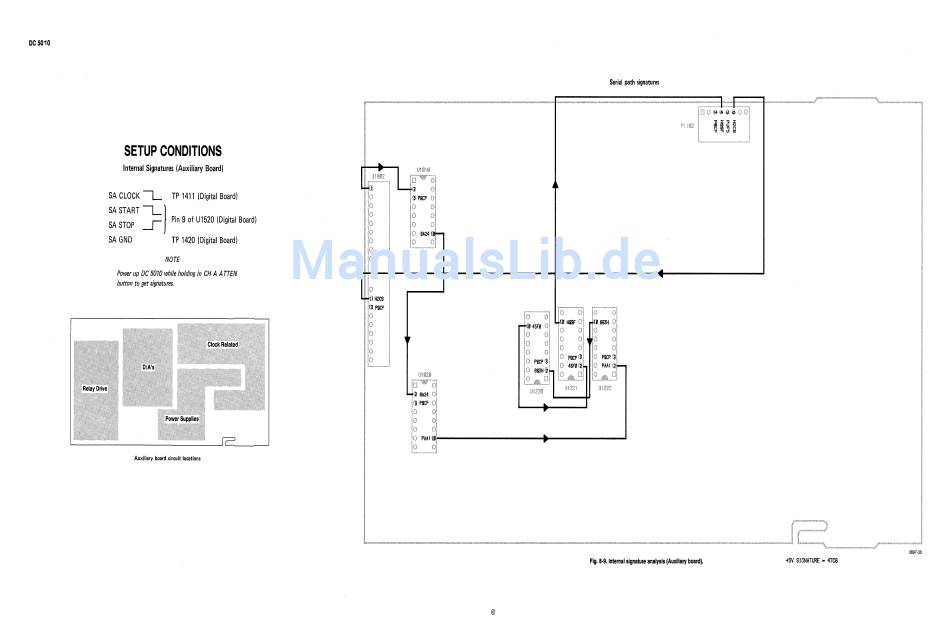

Fig, 8.9, Internal signature analysis (Auxiliary board).
