Calibration-DC
501 0

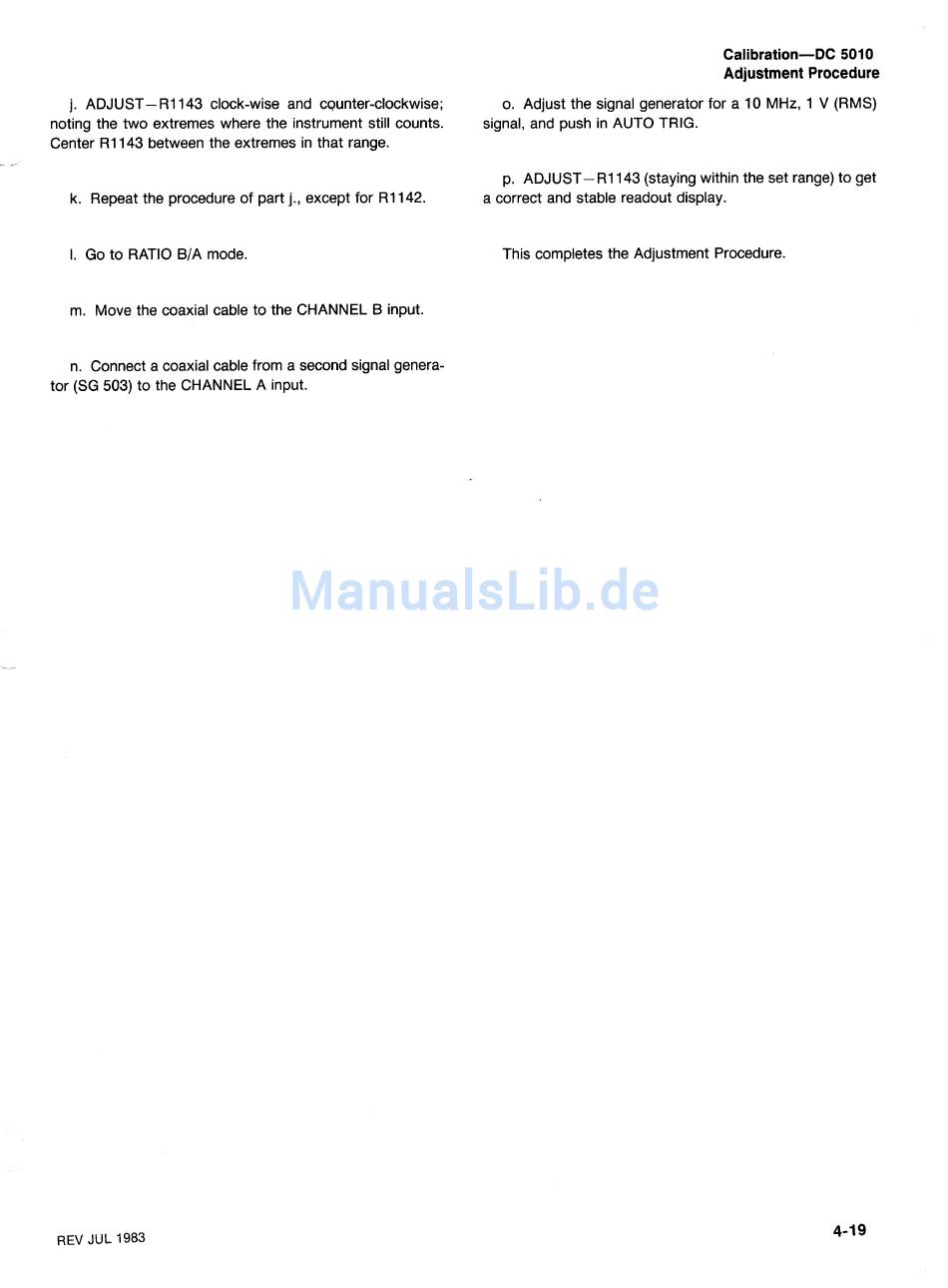

Adjustment Procedure
j. ADJUST- R1143 clock-wise and c~unter-clockwise;
o. Adjust the signal generator for a 10 MHz, 1 V (RMS)
noting the two extremes where the instrument still counts.
signal, and push in AUTO TRIG.
Center R1143 between the extremes in that range.
. .
--
p. ADJUST- R1143 (staying within the set range) to get
k. Repeat the procedure of part j., except for R1142.
a correct and stable readout display.
I. Go to RATIO B/A mode.
This completes the Adjustment Procedure.
m. Move the coaxial cable to the CHANNEL B input.
n. Connect a coaxial cable from a second signal genera-
tor (SG 503) to the CHANNEL A input.
REV JUL 1983
