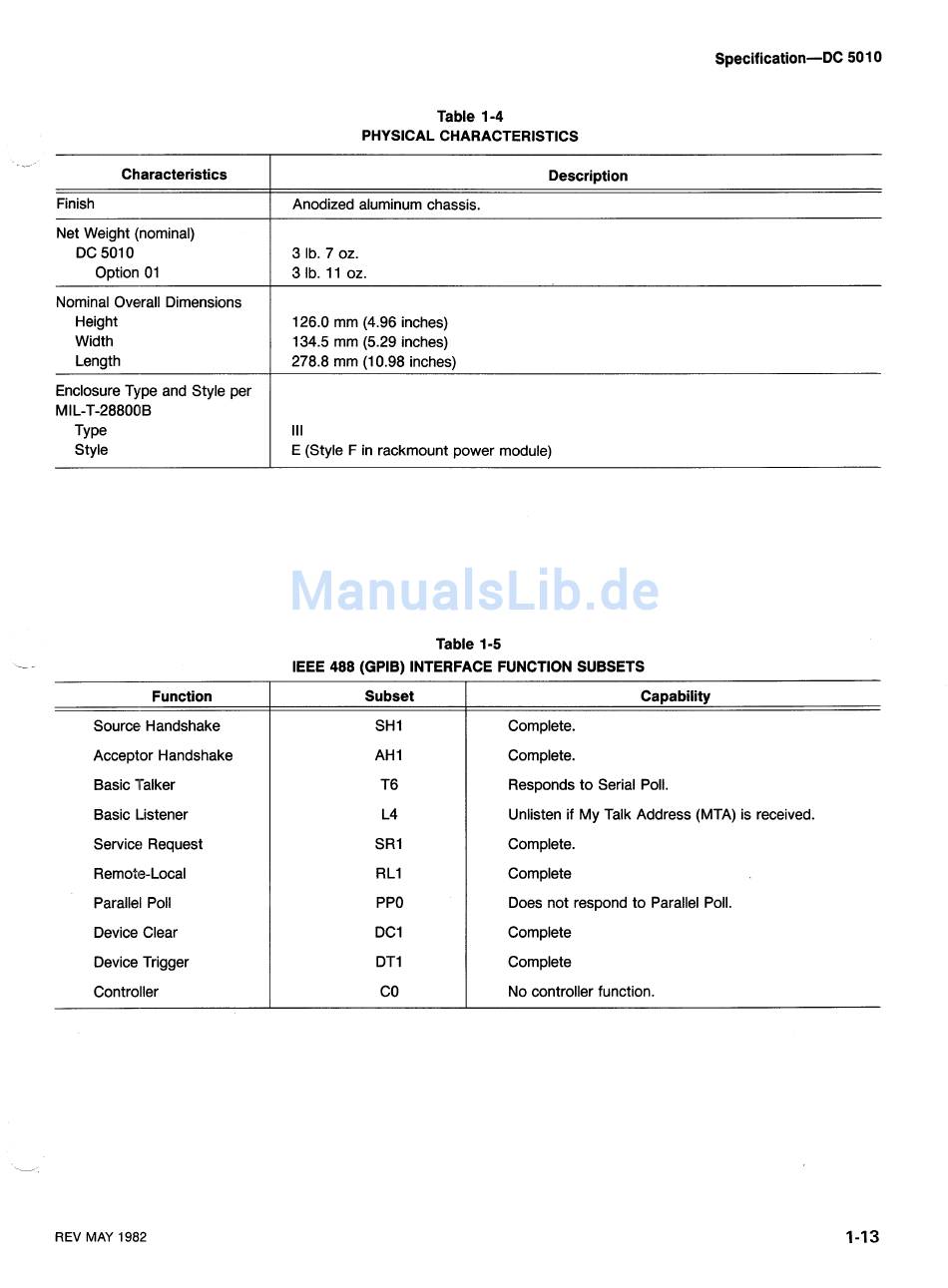

Specif ication-DC 50 1 0
Table 1-4
PHYSICAL CHARACTERISTICS
Net Weight (nominal)
DC 5010
Option 01
-
--
Characteristics
Finish
3 Ib. 7 oz.
3 Ib. 11 oz.
Description
Anodized aluminum chassis.
Nominal Overall Dimensions
Height
Width
Length
126.0 mm (4.96 inches)
134.5 mm (5.29 inches)
278.8 mm (1 0.98 inches)
Enclosure Type and Style per
MI L-T-28800lB
TY pe
Style
I I I
E
(Style F in rackmount power module)
Function
Source Handshake
Acceptor Handshake
Basic Talker
Basic Listener
Service Request
Remote-Local
Parallel Poll
Device Clear
Device Trigger
Controller
Table 1-5
IEEE 488 (GPIB) INTERFACE FUNCTION SUBSETS
Subset
SH1
AH1
T6
L4
SR1
RLI
PPO
DC1
DT1
co
Capability
Complete.
Complete.
Responds to Serial Poll.
Unlisten if My Talk Address (MTA) is received.
Complete.
Complete
Does not respond to Parallel Poll.
Complete
Complete
No controller function.
REV MAY 1982
