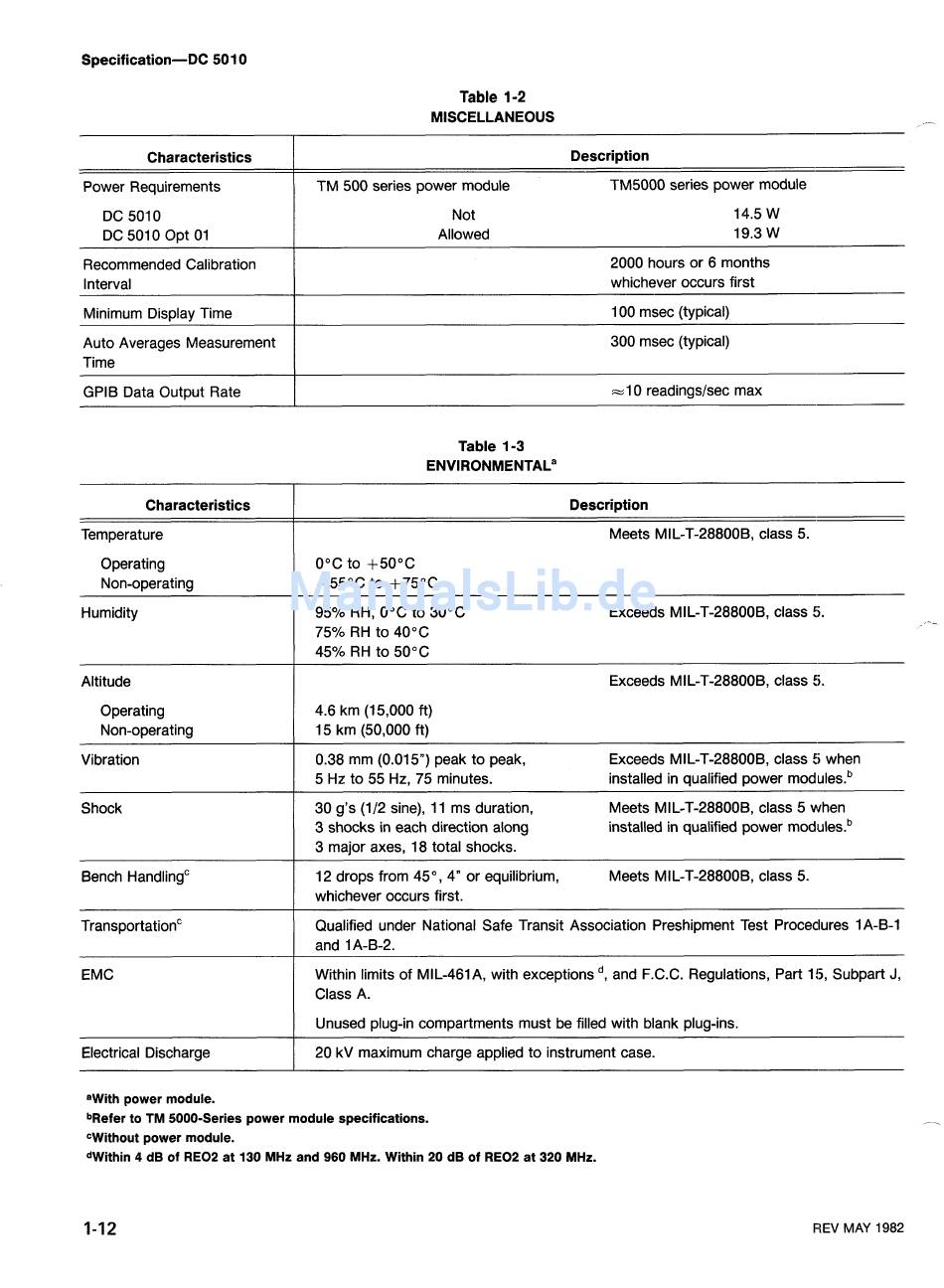

Table
1-2
MISCELLANEOUS
/-.
Characteristics
Power Requirements
Description
TM 500 series power module TM5000 series power module
DC 5010
DC 501 0 Opt 01
Recommended Calibration
Interval
GPlB Data Output Rate
I
=
1 0 readingslsec max
Not
14.5 W
Allowed 19.3 W
2000 hours or 6 months
whichever occurs first
Minimum Display Time
Auto Averages Measurement
Time
Characteristics
100 msec (typical)
300 msec (typical)
- -
Temperature
Operating
Non-operating
Humidity
Altitude
Operating
Non-operating
Vibration
Shock
Bench HandlingC
EMC
Electrical Discharge
aWith power module.
Table 1-3
ENVIRONMENTALa
Description
Meets MI L-T-28800B, class 5.
95% RH, 0°C to 30°C
75% RH to 40°C
45% RH to 50°C
Exceeds MI L-T-28800B, class 5.
-
Exceeds M IL-T-28800B, class
5.
4.6 km (1 5,000 ft)
15 km (50,000 ft)
0.38 mm (0.015") peak to peak, Exceeds MIL-1-288008, class 5 when
5 Hz to 55 Hz, 75 minutes. installed in qualified power m o d ~ l e s . ~
30 g's (112 sine), 11 ms duration, Meets MIL-T-28800B, class 5 when
3 shocks in each direction along installed in qualified power m o d ~ l e s . ~
3 major axes, 18 total shocks.
12 drops from 45", 4" or equilibrium, Meets MIL-T-28800B, class 5.
whichever occurs first.
Qualified under National Safe Transit Association Preshipment Test Procedures 1A-B-1
and 1A-B-2.
Within limits of MIL-461A, with exceptions
d,
and F.C.C. Regulations, Part 15, Subpart J,
Class A.
Unused plug-in compartments must be filled with blank plug-ins.
20 kV maximum charge applied to instrument case.
bRefer to TM 5000-Series power module specifications.
- .
=Without power module.
dWithin 4 dB of RE02 at 130 MHz and 960 MHz. Within 20 dB of RE02 at 320 MHz.
FIEV MAY 1982
