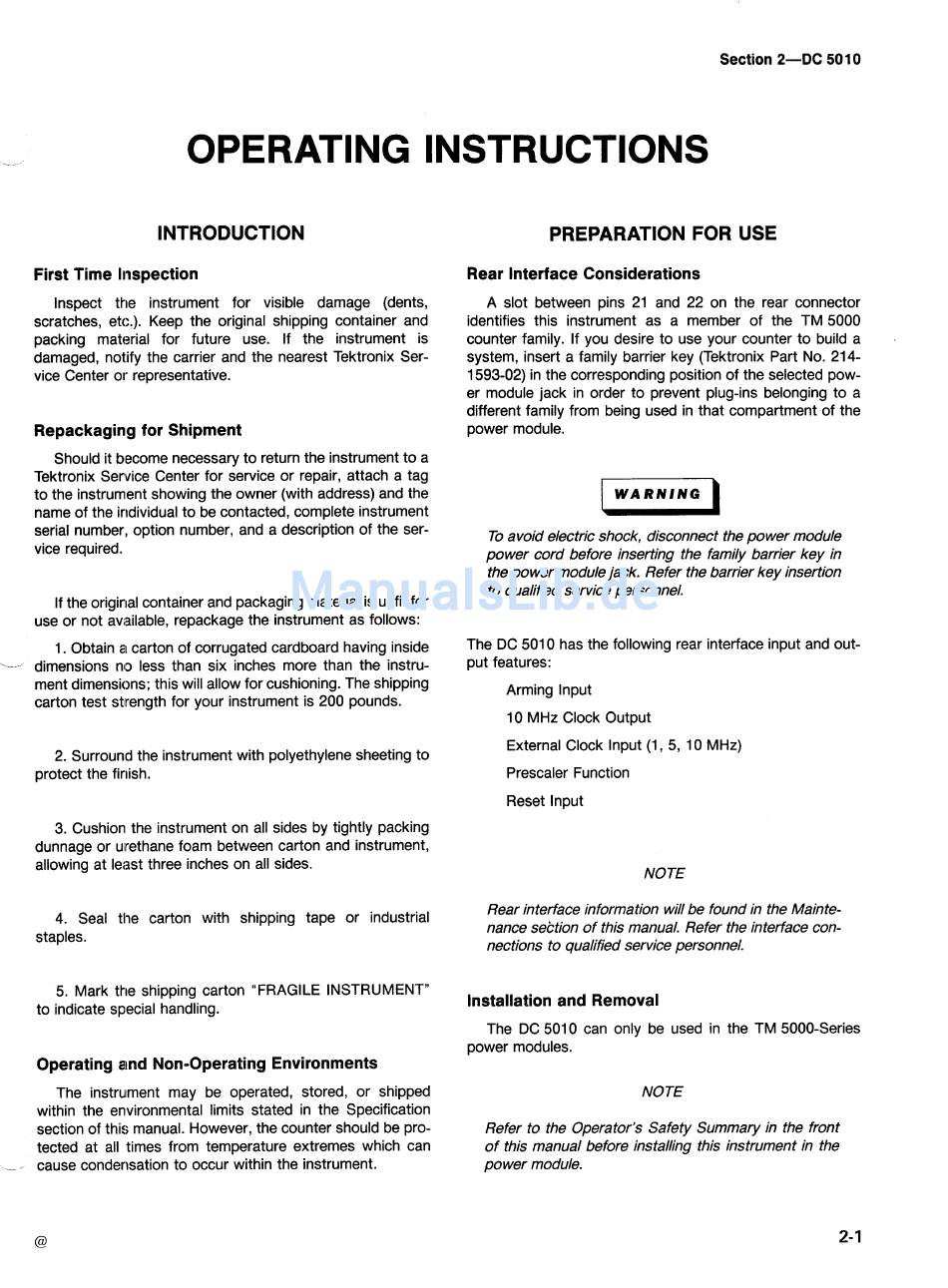

OPERATING INSTRUCTIONS
INTRODUCTION
First Time hispection
Inspect the instrument for visible damage (dents,
scratches, etc.). Keep the original shipping container and
packing material for future use. If the instrument is
damaged, notify the carrier and the nearest Tektronix Ser-
vice Center or representative.
Repackaging for Shipment
Should it blecome necessary to return the instrument to a
Tektronix Service Center for service or repair, attach a tag
to the instrument showing the owner (with address) and the
name of the irldividual to be contacted, complete instrument
serial number, option number, and a description of the ser-
vice required.
If the original container and packaging material is unfit for
use or not available, repackage the instrument as follows:
1. Obtain a1 carton of corrugated cardboard having inside
\--
dimensions no less than six inches more than the instru-
ment dimensions; this will allow for cushioning. The shipping
carton test st~rength for your instrument is 200 pounds.
2. Surroun'd the instrument with polyethylene sheeting to
protect the finish.
3. Cushion the instrument on all sides by tightly packing
dunnage or urethane foam between carton and instrument,
allowing at least three inches on all sides.
4. Seal the carton with shipping tape or industrial
staples.
5. Mark the shipping carton "FRAGILE INSTRUMENTn
to indicate special handling.
Operating and Non-Operating Environments
The instrument may be operated, stored, or shipped
within the environmental limits stated in the Specification
section of this manual. However, the counter should be pro-
tected at all times from temperature extremes which can
-
cause condensation to occur within the instrument.
PREPARATION FOR USE
Rear Interface Considerations
A slot between pins 21 and 22 on the rear connector
identifies this instrument as a member of the TM 5000
counter family. If you desire to use your counter to build a
system, insert a family barrier key (Tektronix Part No. 214-
1593-02) in the corresponding position of the selected pow-
er module jack in order to prevent plug-ins belonging to a
different family from being used in that compartment of the
power module.
To avoid electric shock, disconnect the power module
power cord before inserting the family barrier key in
the power module jack. Refer the barrier key insertion
to qualified service personnel.
The DC 501 0 has the following rear interface input and out-
put features:
Arming lnput
10 MHz Clock Output
External Clock lnput (1, 5, 10 MHz)
Prescaler Function
Reset lnput
NOTE
Rear interface information will be found in the Mainte-
nance section of this manual. Refer the interface con-
nections to qualified service personnel.
Installation and Removal
The DC 5010 can only be used in the TM 5000-Series
power modules.
NOTE
Refer to the Operator's Safety Summary in the front
of this manual before installing this instrument in the
power module.
