FOUNDATION Fieldbus temperature transmitter
Dimensions
Weight
Materials
Terminals
LC display
Remote operation
Ex certification
CE mark
FOUNDATION Fieldbus

certification

Endress+Hauser

10.8 Mechanical construction

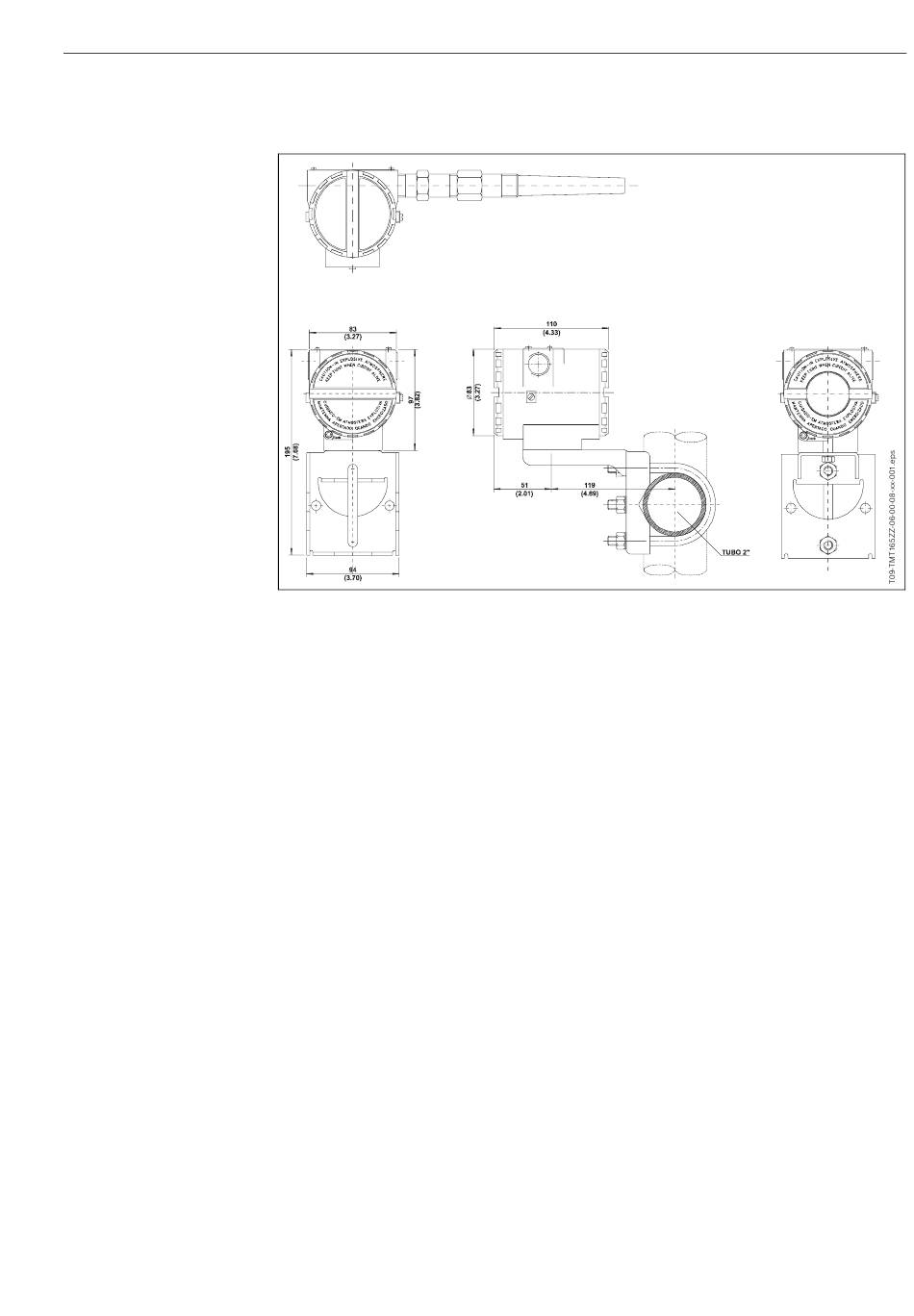

Fig. 10-2: Field transmitter dimensions in mm (Inch)
Aluminium housing approx. 800 g (without display), approx. 930 g (with display), approx
1530 g (with display and mounting kit)
Transmitter housing:
Aluminium with polyester coating or 316 stainless steel
2
Cable up to 2.5 mm (secured screws)

10.9 Display and operating system

4 ½ digit numeric and 5 digit alphanumeric
Operation using FOUNDATION Fieldbus and a suitable configuration or operating
software.
10.10 Certification
For further details on the available Ex versions (ATEX, FM, CSA, usw.) please contact your
respective E+H sales organisation. All relevant data for explosion hazardous area can be found
in separate Ex documentation. If required please request copies from us or your E+H sales
organisation.
The measurement system fulfils the requirements demanded by the EU regulations.
Endress+Hauser acknowledges successful unit testing by adding the CE mark.
The TMT 165 temperature field transmitter has successfully completed all the test
procedures run and is both certified and registered by the Fieldbus FOUNDATION. The
measurement unit therefore fulfills all the requirements for the following specifications:
• Certified to the fieldbus specification, Revision ITK 4.0
10 Technical Data
109
