5 Operation
94

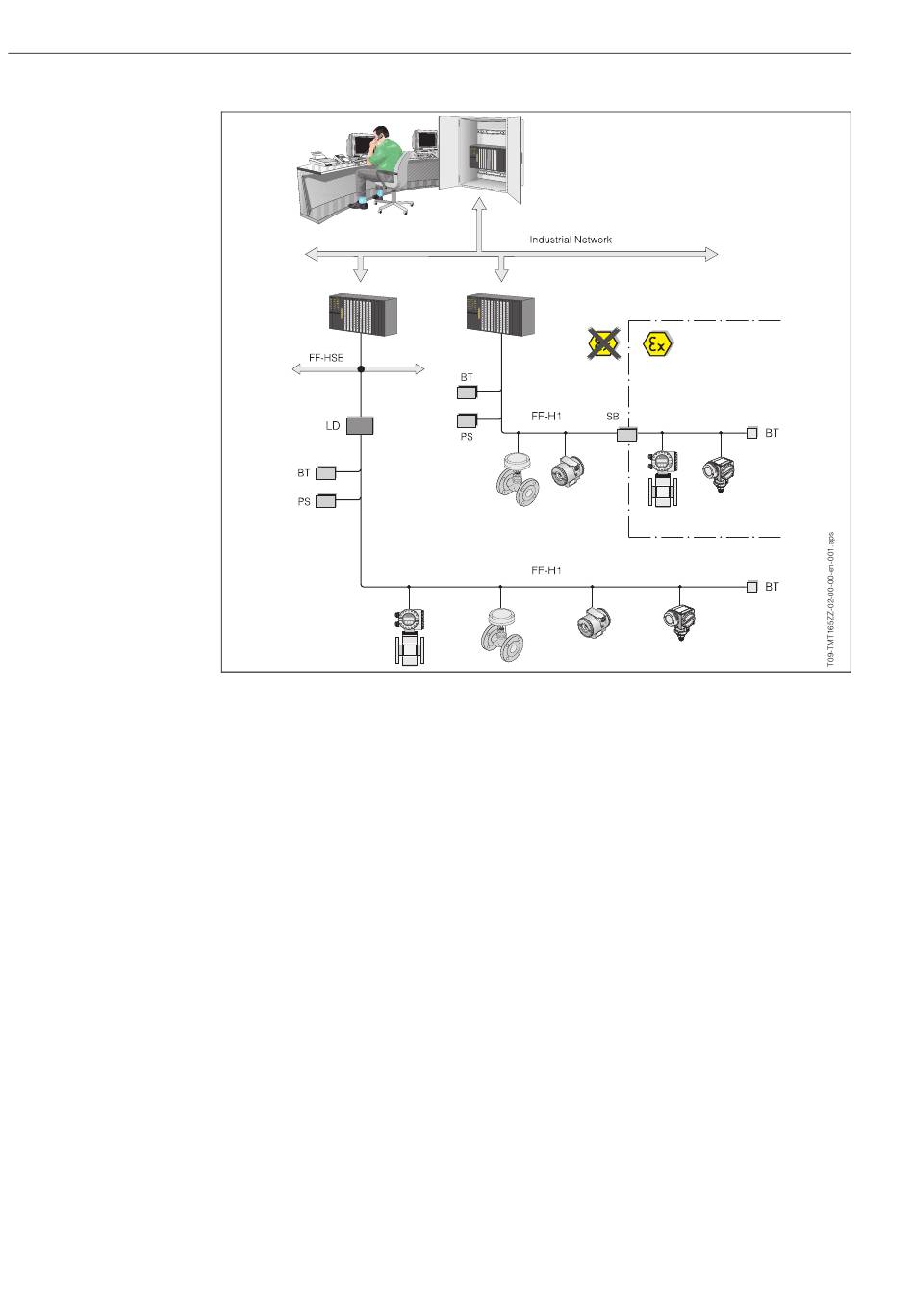

Fig. 5-1 FOUNDATION Fieldbus system architecture including associated components (line structure)
FF-HSE = High Speed Ethernet, FF-H1 = FOUNDATION Fieldbus-H1, LD = Linking Device, PS = Fieldbus
Power Supply, SB = Safety Barrier, BT = Bus Terminator
The following possibilities can be realised in respect of system connection:
– A linking device can be used to connect to higher ranking fieldbus protocols (e.g. to the High Speed
Ethernet - HSE) (Control Net)
– An FF-H1 card is required for direct connection to a process control system.
– System inputs are available directly for FF-H1 and FF-H2 (FF-HSE).
The system architecture of the FOUNDATION Fieldbus can be divided into two
subnetworks:
H1 bus system:
In the field, fieldbus devices are connected only via the slower H1 bus system that is
specified following IEC 61158-2. The H1 bus system allows simultaneous feed to the
field devices and data transfer on the two-wire line.
The following points describe some important characteristics of the H1 bus system:
• All fieldbus devices are powered via the H1 bus. Like the fieldbus devices, the power
supply is connected in parallel to the bus line. Devices requiring external power must
use a separate power supply.
• One of the most common network structures is the line structure. Star, tree or mixed
network structures are also possible using connecting components (junction boxes).
• The bus connection to the individual fieldbus devices is achieved by means of a T-
connector or via a spur. This has the advantage that individual fieldbus devices can
be connected or disconnected without interrupting the bus or the bus communication.
• The number of connected fieldbus devices depends on various factors, such as use
in hazardous areas, length of spur, cable types, current consumption of field devices
etc. (see page 87).
