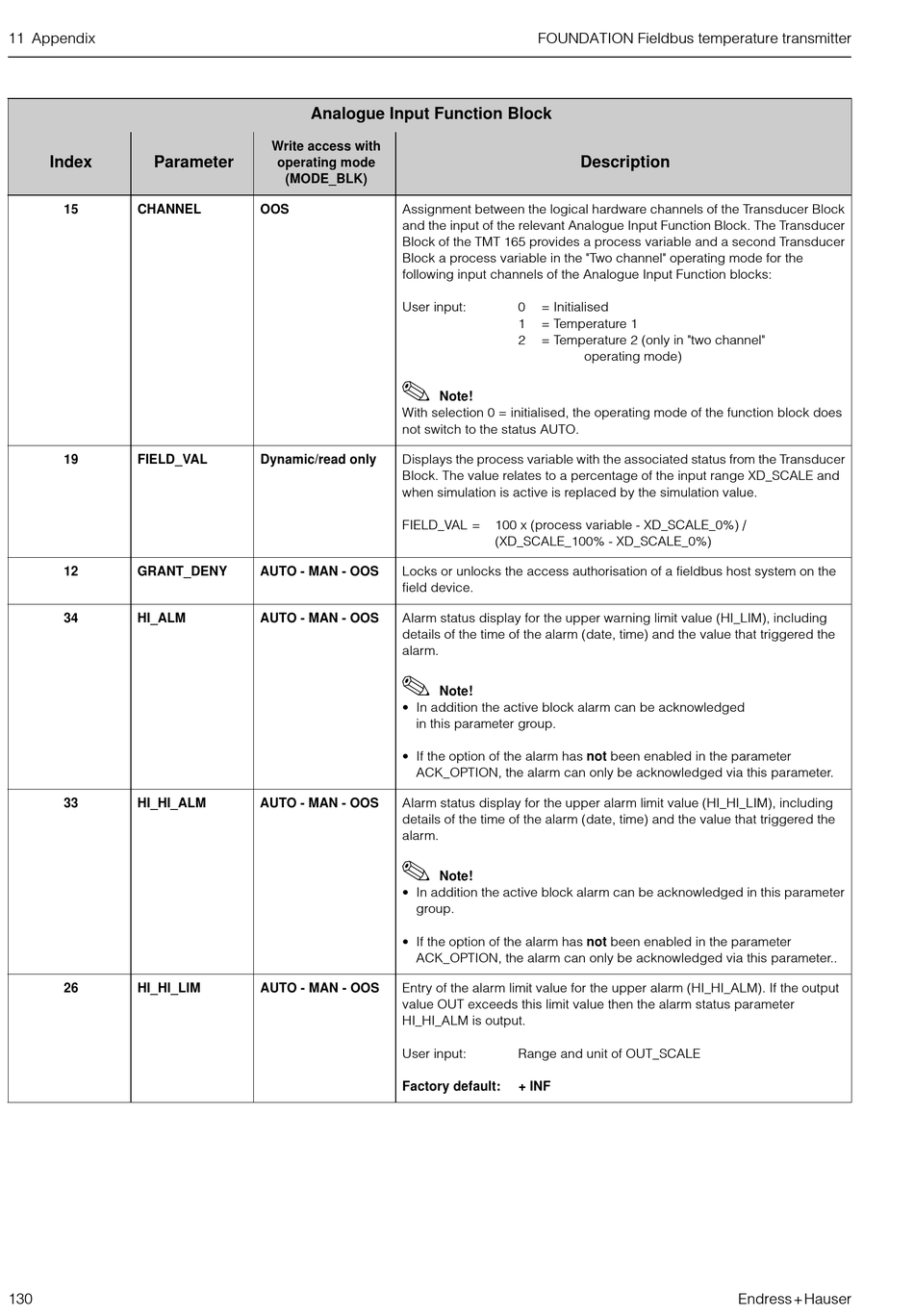

11 Appendix
Index Parameter
15 CHANNEL
19 FIELD_VAL
12 GRANT_DENY
34 HI_ALM
33 HI_HI_ALM
26 HI_HI_LIM
130
Analogue Input Function Block
Write access with
operating mode
(MODE_BLK)
OOS Assignment between the logical hardware channels of the Transducer Block
and the input of the relevant Analogue Input Function Block. The Transducer
Block of the TMT 165 provides a process variable and a second Transducer
Block a process variable in the "Two channel" operating mode for the
following input channels of the Analogue Input Function blocks:
User input:
2
With selection 0 = initialised, the operating mode of the function block does
not switch to the status AUTO.
Dynamic/read only Displays the process variable with the associated status from the Transducer
Block. The value relates to a percentage of the input range XD_SCALE and
when simulation is active is replaced by the simulation value.
FIELD_VAL =
AUTO - MAN - OOS Locks or unlocks the access authorisation of a fieldbus host system on the
field device.
AUTO - MAN - OOS Alarm status display for the upper warning limit value (HI_LIM), including
details of the time of the alarm (date, time) and the value that triggered the
alarm.
2
• In addition the active block alarm can be acknowledged
in this parameter group.
• If the option of the alarm has not been enabled in the parameter
ACK_OPTION, the alarm can only be acknowledged via this parameter.
AUTO - MAN - OOS Alarm status display for the upper alarm limit value (HI_HI_LIM), including
details of the time of the alarm (date, time) and the value that triggered the
alarm.
2
• In addition the active block alarm can be acknowledged in this parameter
group.
• If the option of the alarm has not been enabled in the parameter
ACK_OPTION, the alarm can only be acknowledged via this parameter..
AUTO - MAN - OOS Entry of the alarm limit value for the upper alarm (HI_HI_ALM). If the output
value OUT exceeds this limit value then the alarm status parameter
HI_HI_ALM is output.
User input:
Factory default:
FOUNDATION Fieldbus temperature transmitter
Description
0 = Initialised
1 = Temperature 1
2 = Temperature 2 (only in "two channel"
operating mode)
Note!
100 x (process variable - XD_SCALE_0%) /
(XD_SCALE_100% - XD_SCALE_0%)
Note!
Note!
Range and unit of OUT_SCALE
+ INF
