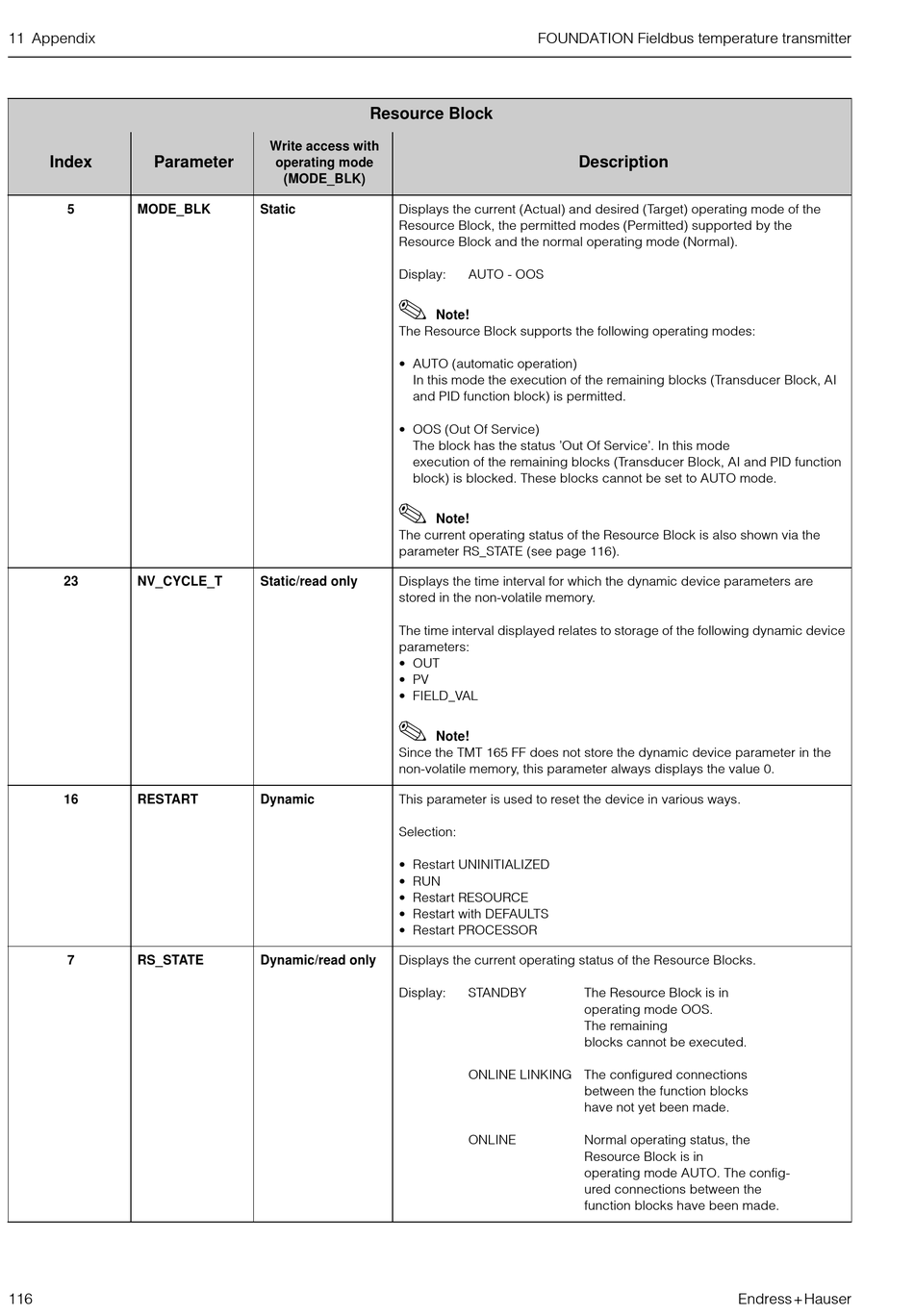

Resource Block
Write access with
operating mode
(MODE_BLK)
Static Displays the current (Actual) and desired (Target) operating mode of the
Resource Block, the permitted modes (Permitted) supported by the
Resource Block and the normal operating mode (Normal).
Display:
2
The Resource Block supports the following operating modes:
• AUTO (automatic operation)
In this mode the execution of the remaining blocks (Transducer Block, AI
and PID function block) is permitted.
• OOS (Out Of Service)
The block has the status 'Out Of Service'. In this mode
execution of the remaining blocks (Transducer Block, AI and PID function
block) is blocked. These blocks cannot be set to AUTO mode.
2
The current operating status of the Resource Block is also shown via the
parameter RS_STATE (see page 116).
Static/read only Displays the time interval for which the dynamic device parameters are
stored in the non-volatile memory.
The time interval displayed relates to storage of the following dynamic device
parameters:
• OUT
• PV
• FIELD_VAL
2
Since the TMT 165 FF does not store the dynamic device parameter in the
non-volatile memory, this parameter always displays the value 0.
Dynamic This parameter is used to reset the device in various ways.
Selection:
• Restart UNINITIALIZED
• RUN
• Restart RESOURCE
• Restart with DEFAULTS
• Restart PROCESSOR
Dynamic/read only Displays the current operating status of the Resource Blocks.
Display:
FOUNDATION Fieldbus temperature transmitter
Description
AUTO - OOS
Note!
Note!
Note!
STANDBY The Resource Block is in
operating mode OOS.
The remaining
blocks cannot be executed.
ONLINE LINKING The configured connections
between the function blocks
have not yet been made.
ONLINE Normal operating status, the
Resource Block is in
operating mode AUTO. The config-
ured connections between the
function blocks have been made.
