Mechanical data
Enclosure rating
Ambient temperature, operation
10.2

Dimensional drawings

en
64 O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
WTM12L-xxxxx8:
2
1
3
4

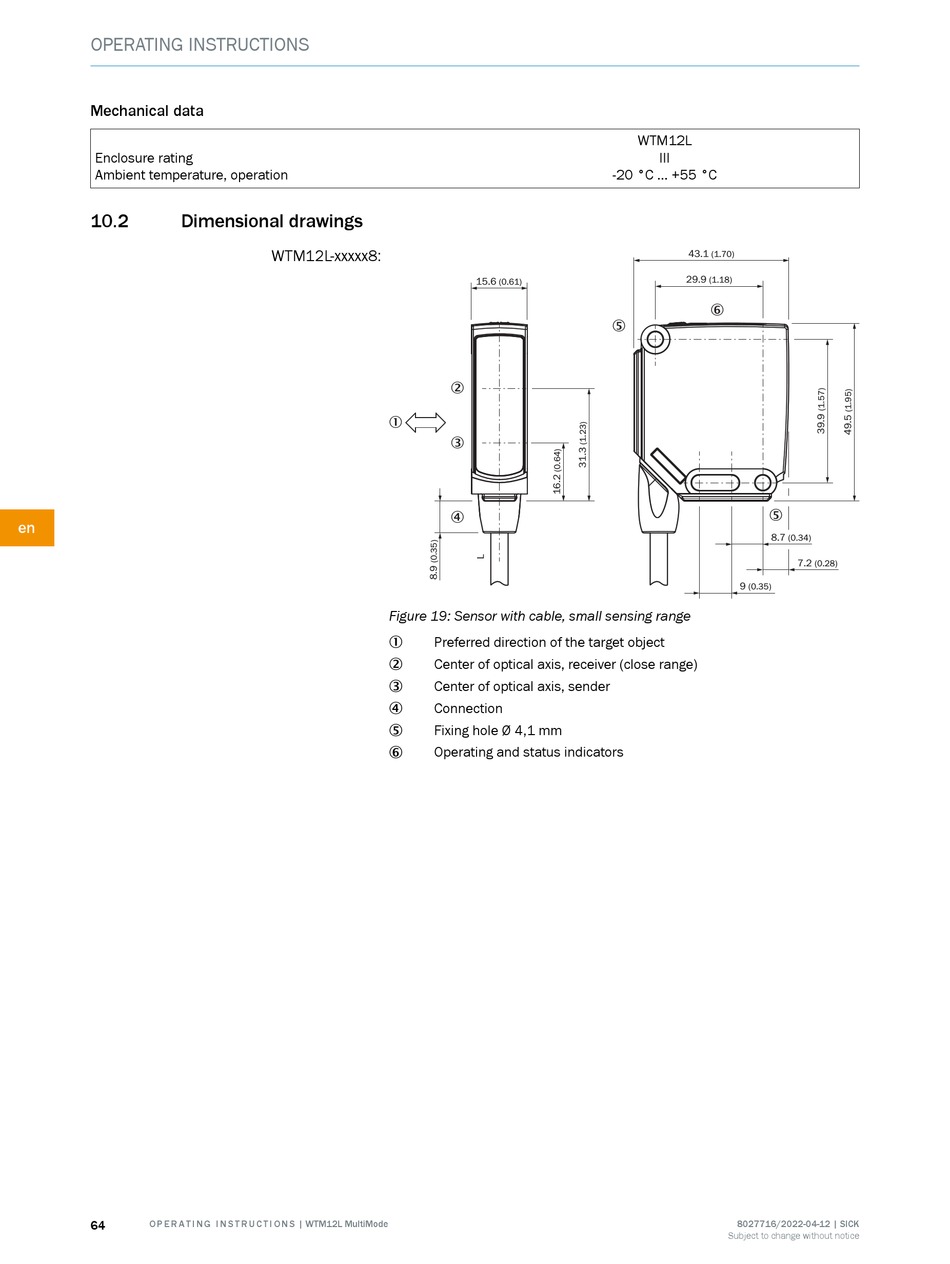

Figure 19: Sensor with cable, small sensing range
Preferred direction of the target object
1
Center of optical axis, receiver (close range)
2
Center of optical axis, sender
3
Connection
4
Fixing hole Ø 4,1 mm
5
Operating and status indicators
6
WTM12L
-20 °C ... +55 °C
15.6 (0.61)
5
III
43.1
(1.70)
29.9
(1.18)
6
5
8.7 (0.34)
7.2
(0.28)
9
(0.35)
