OPERATING INSTRUCTIONS
en
6 Commissioning
6.1 Alignment
48 O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode

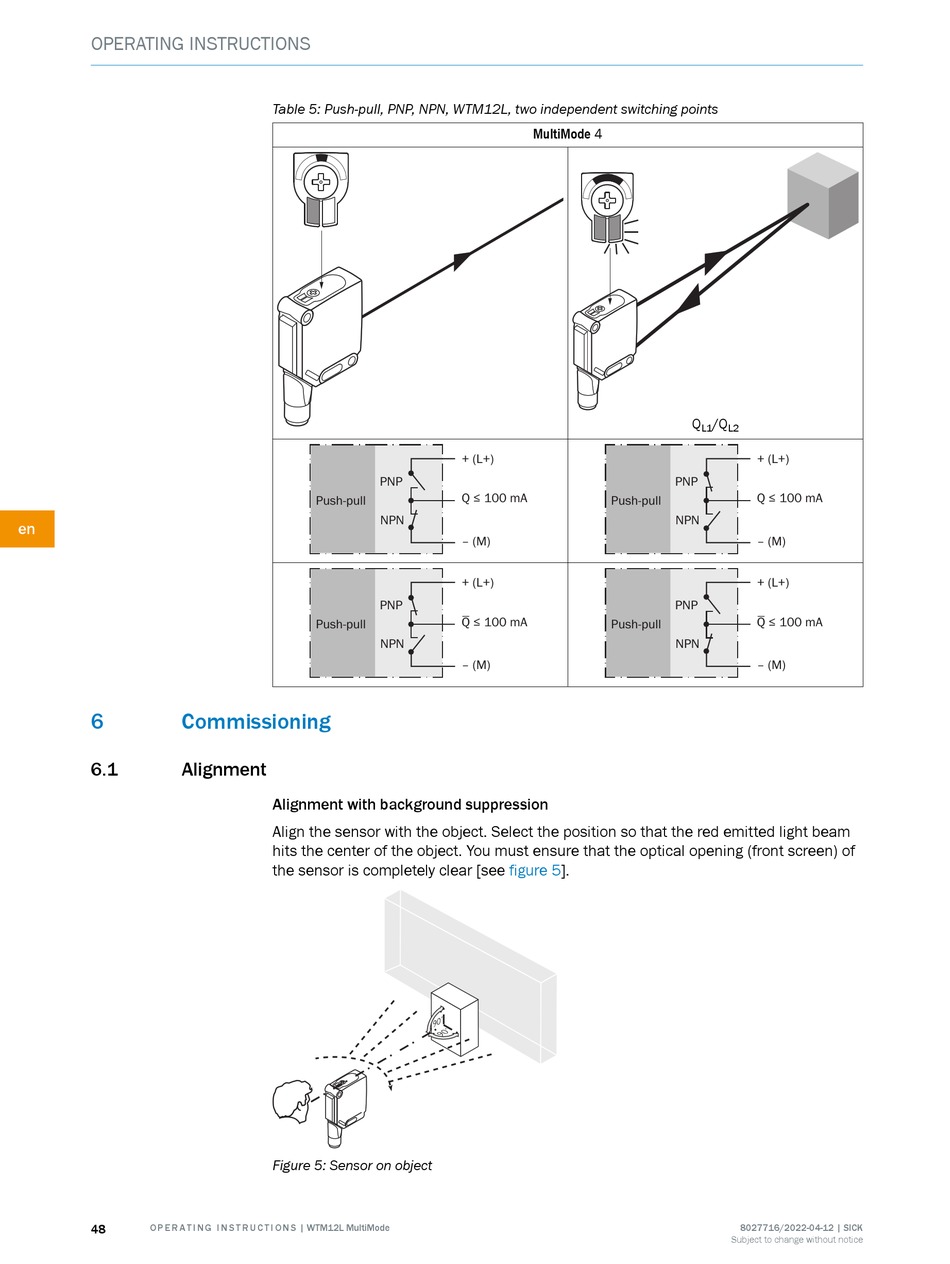

Table 5: Push-pull, PNP, NPN, WTM12L, two independent switching points
PNP
Push-pull
NPN
PNP
Push-pull
NPN
Alignment with background suppression
Align the sensor with the object. Select the position so that the red emitted light beam
hits the center of the object. You must ensure that the optical opening (front screen) of
the sensor is completely clear [see
Figure 5: Sensor on object
MultiMode 4
+ (L+)
Q ≤ 100 mA
Push-pull
‒ (M)
+ (L+)
Q ≤ 100 mA
Push-pull
‒ (M)
figure 5].
Q /Q
L1 L2
+ (L+)
PNP
Q ≤ 100 mA
NPN
‒ (M)
+ (L+)
PNP
Q ≤ 100 mA
NPN
‒ (M)
8027716/2022-04-12 | SICK
Subject to change without notice
