Multi‐
Minimum distance in mm (y) between the set sensing
range and white background (90 % remission)
Mode1+
y
6:
30
(1.18)
25 18%/90%
(0.98)
20
(0.79)
6%/90%
1
15
(0.59)
10
(0.39)
5
(0.20)
0
0
200
(7.87)
Recommended sensing range for
the best performance

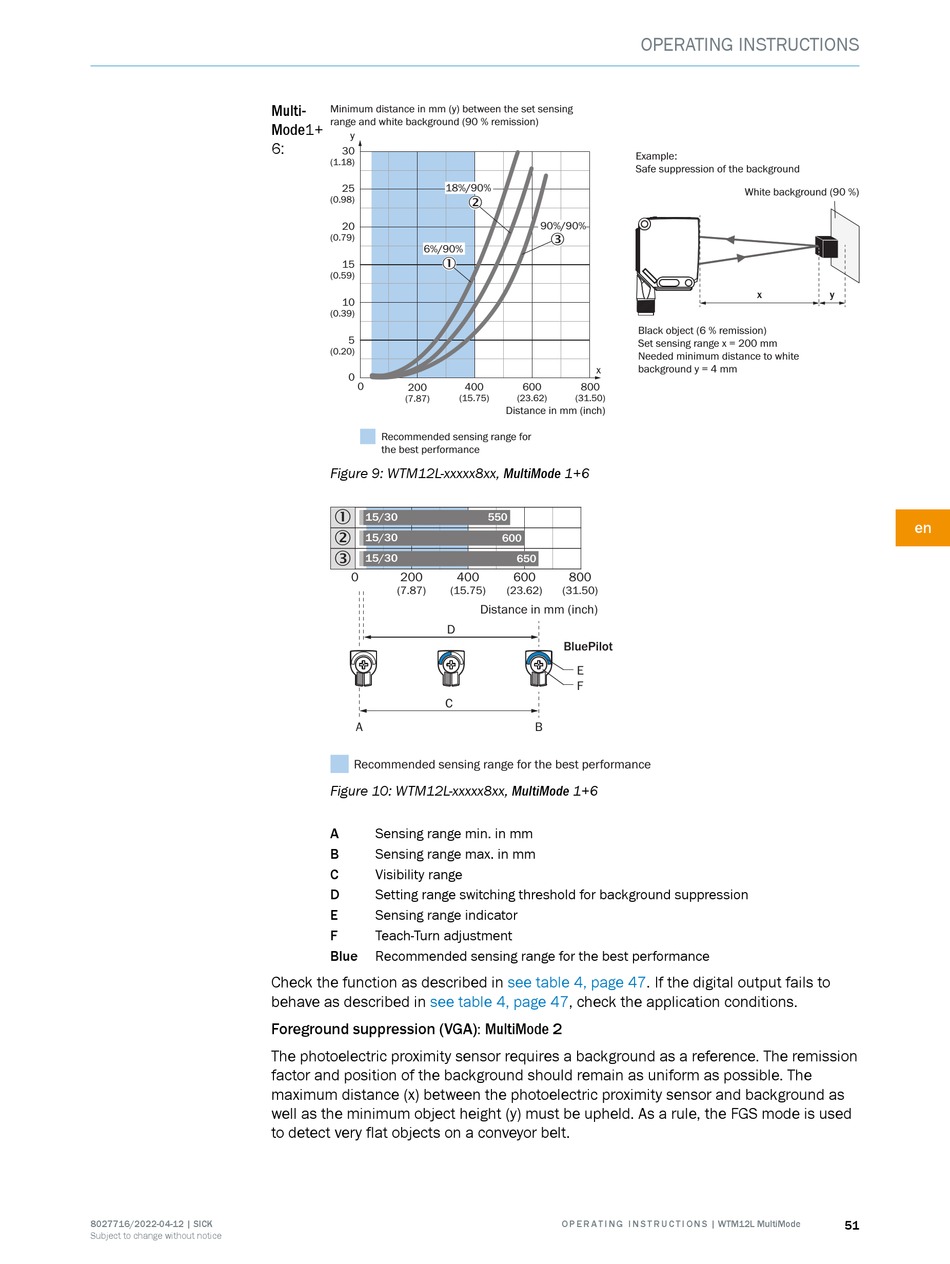

Figure 9: WTM12L-xxxxx8xx, MultiMode 1+6
1
15/30
2
15/30
3
15/30
0 200
(7.87) (15.75)
D
C
A
Recommended sensing range for the best performance
Figure 10: WTM12L-xxxxx8xx, MultiMode 1+6
A Sensing range min. in mm
B Sensing range max. in mm
C Visibility range
D Setting range switching threshold for background suppression
E Sensing range indicator
F Teach-Turn adjustment
Blue Recommended sensing range for the best performance
Check the function as described in
behave as described in see table 4, page
Foreground suppression (VGA): MultiMode 2
The photoelectric proximity sensor requires a background as a reference. The remission
factor and position of the background should remain as uniform as possible. The
maximum distance (x) between the photoelectric proximity sensor and background as
well as the minimum object height (y) must be upheld. As a rule, the FGS mode is used
to detect very flat objects on a conveyor belt.
Example:
Safe suppression of the background
2
90%/90%
3 3
x
400 600 800
(15.75) (23.62) (31.50)
Distance in mm (inch)
550
600
650
400 600 800
(23.62) (31.50)
Distance in mm (inch)
BluePilot
E
F
B
see table 4, page 47. If the digital output fails to
47, check the application conditions.
O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
OPERATING INSTRUCTIONS
White background (90 %)
x
Black object (6 % remission)
Set sensing range x = 200 mm
Needed minimum distance to white
background y = 4 mm
y
en
