Q1 = near switching point (taught in first) - LED 3
Q2 = far switching point (taught in last) - LED 5

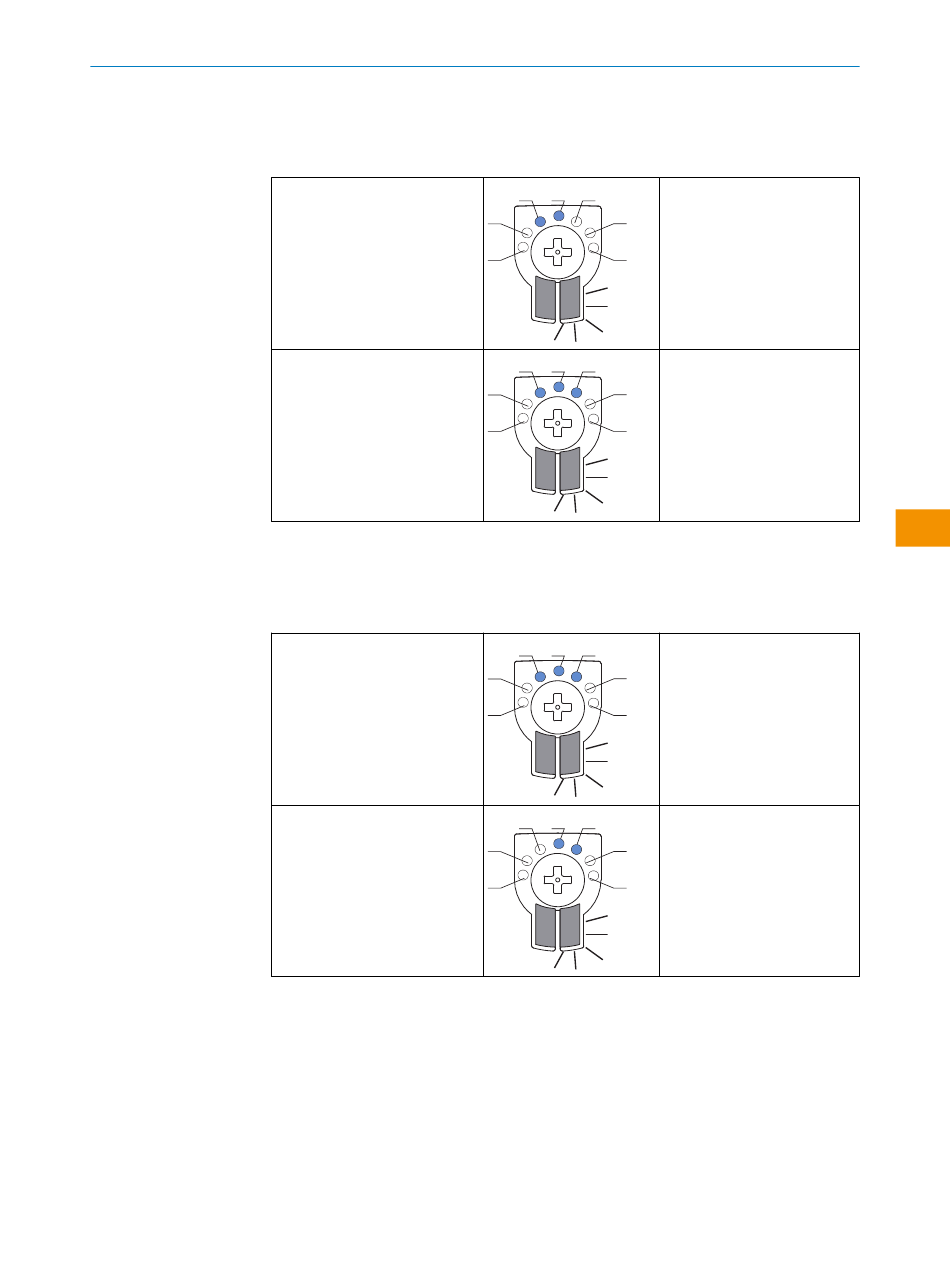

Table 7: Display behavior, case 1
Object detected in near switching
point Q1
Object detected in far switching
point Q2
Case 2:
Q1 = far switching point (taught in first) - LED 3
Q2 = near switching point (taught in last) - LED 5
Table 8: Display behavior, case 2
Object detected in far switching
point Q1
Object detected in near switching
point Q2
Please refer to the enclosed "IO-Link photoelectric sensors" operating instructions for
information about adjusting the IO-Link sensing range.
OPERATING INSTRUCTIONS
Digital output 1 is indicated by
3 4 5
the yellow LED and also by blue
6
2
LED 3.
1 M
Digital output 2 is indicated by
3 4 5
the yellow LED and also by blue
6
2
LED 3 + 5.
1 M
Digital output 1 is indicated by
3 4 5
the yellow LED and also by blue
6
2
LED 3 + 5.
1 M
Digital output 2 is indicated by
3 4 5
the yellow LED and also by blue
6
2
LED 5.
1 M
