Minimum distance in mm (y) between the set sensing
range and white background (90 % remission)
y
40
(1.57)
18%/90%
2
30
(1.18)
20
(0.79)
6%/90%
1
90%/90%
10
(0.39)
0
0
100 200 300
(3.94) (7.87) (11.81)
Distance in mm (inch)
Recommended sensing range for
the best performance

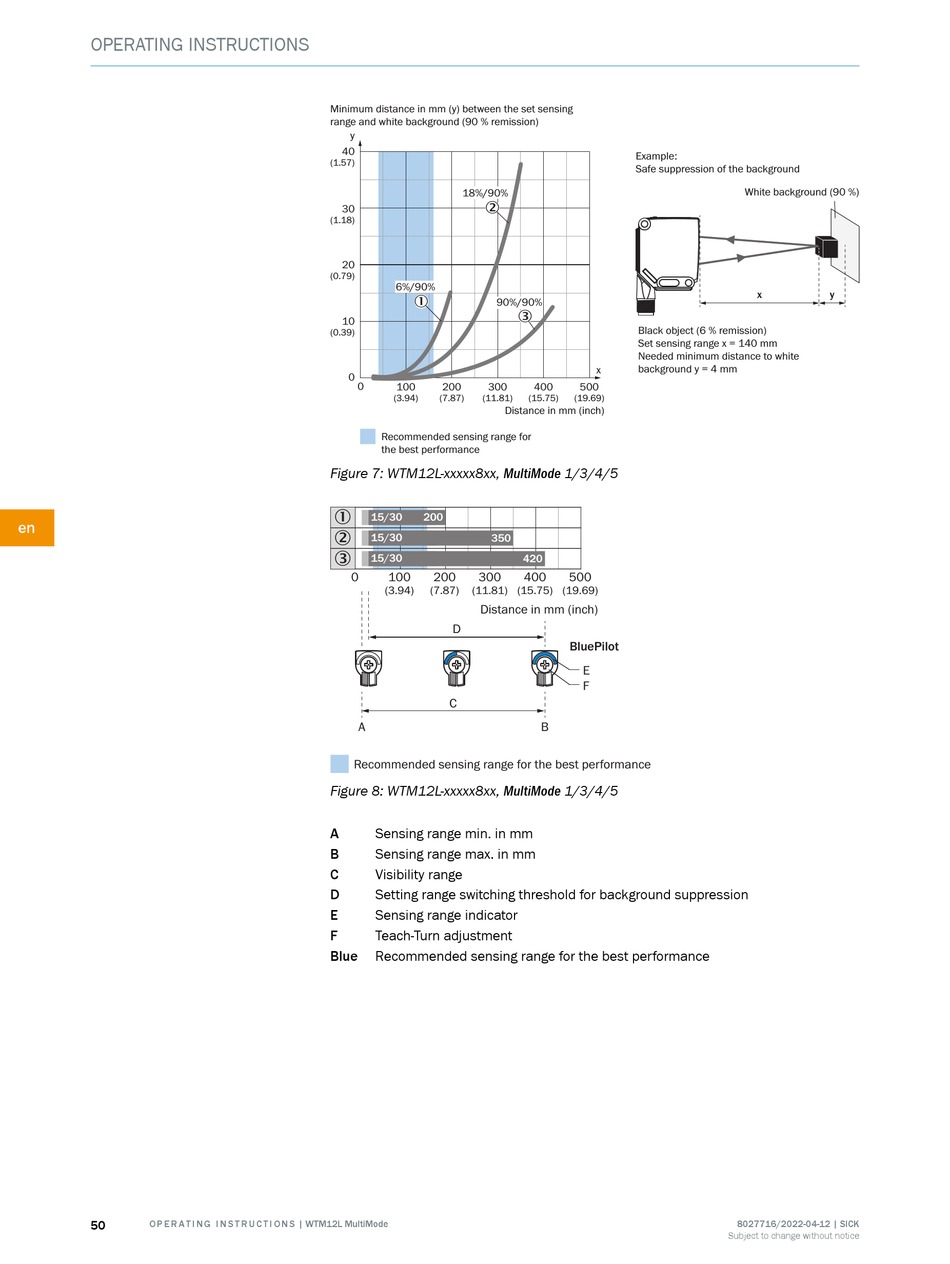

Figure 7: WTM12L-xxxxx8xx, MultiMode 1/3/4/5
1
15/30 200
2
15/30
350
3
15/30
0 100 200 300
(3.94) (7.87) (11.81)
Distance in mm (inch)
D
C
A
Recommended sensing range for the best performance
Figure 8: WTM12L-xxxxx8xx, MultiMode 1/3/4/5
A Sensing range min. in mm
B Sensing range max. in mm
C Visibility range
D Setting range switching threshold for background suppression
E Sensing range indicator
F Teach-Turn adjustment
Blue Recommended sensing range for the best performance
Example:
Safe suppression of the background
3 3
Black object (6 % remission)
Set sensing range x = 140 mm
Needed minimum distance to white
background y = 4 mm
x
400 500
(15.75) (19.69)
420
400 500
(15.75) (19.69)
BluePilot
E
F
B
White background (90 %)
x y
