6.2

Check the application conditions

8027716/2022-04-12 | SICK
Subject to change without notice

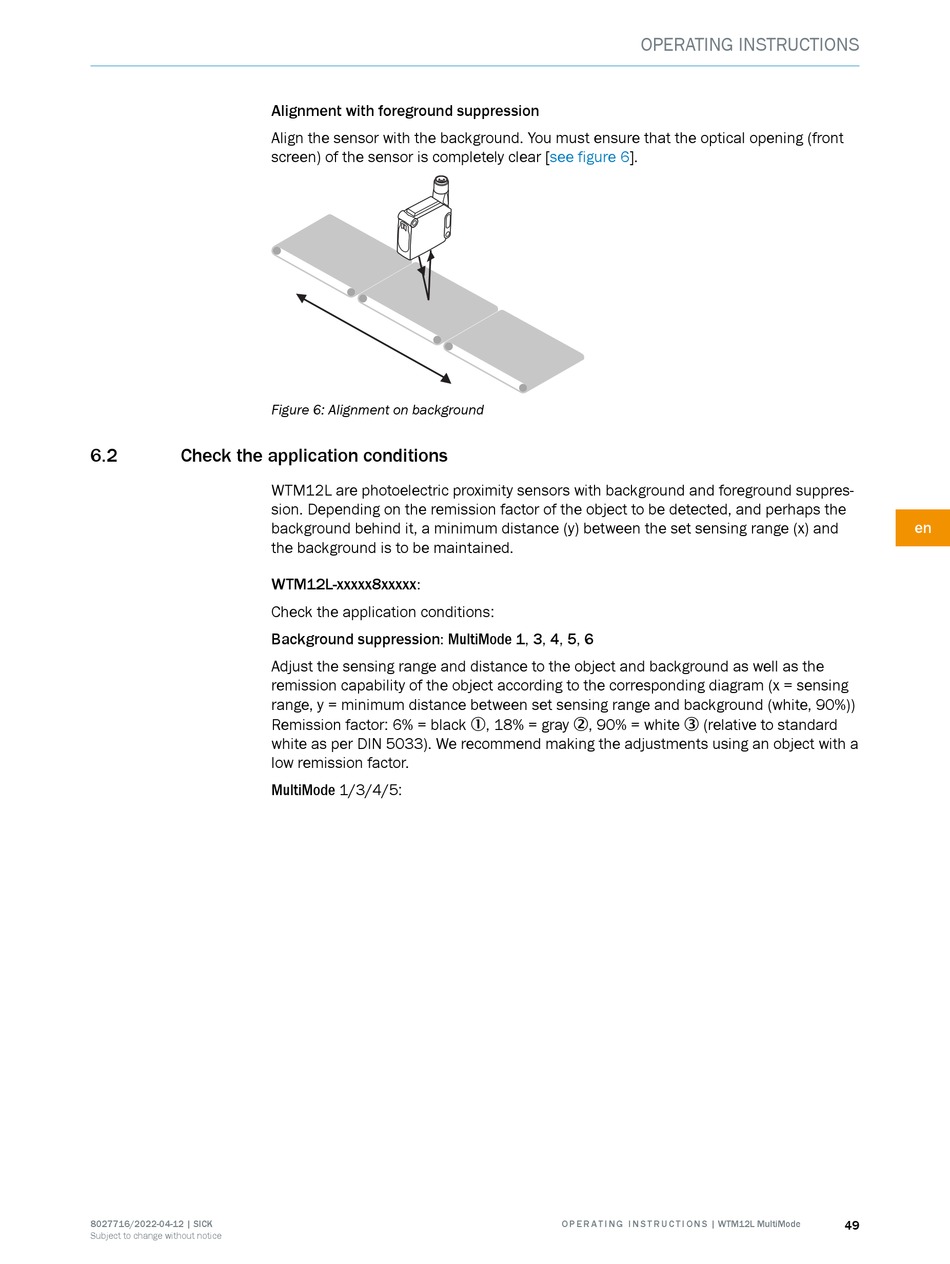

Alignment with foreground suppression
Align the sensor with the background. You must ensure that the optical opening (front
screen) of the sensor is completely clear
Figure 6: Alignment on background
WTM12L are photoelectric proximity sensors with background and foreground suppres‐
sion. Depending on the remission factor of the object to be detected, and perhaps the
background behind it, a minimum distance (y) between the set sensing range (x) and
the background is to be maintained.
WTM12L-xxxxx8xxxxx:
Check the application conditions:
Background suppression: MultiMode 1, 3, 4, 5, 6
Adjust the sensing range and distance to the object and background as well as the
remission capability of the object according to the corresponding diagram (x = sensing
range, y = minimum distance between set sensing range and background (white, 90%))
Remission factor: 6% = black 1, 18% = gray 2, 90% = white 3 (relative to standard
white as per DIN 5033). We recommend making the adjustments using an object with a
low remission factor.
MultiMode 1/3/4/5:
OPERATING INSTRUCTIONS
[see figure 6].
