OPERATING INSTRUCTIONS
6.3.1
Basic mode setting
en
6.3.2
Optional: Activation of ApplicationSelect mode for MultiMode 1 background suppression
56
O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
1.
Select basic mode: Operating mode in which the sensor is to be operated.
2.
Activate ApplicationSelect mode if desired (only possible in combination with back‐
ground suppression (LED 1)).
3.
Sensor teach-in.
1.

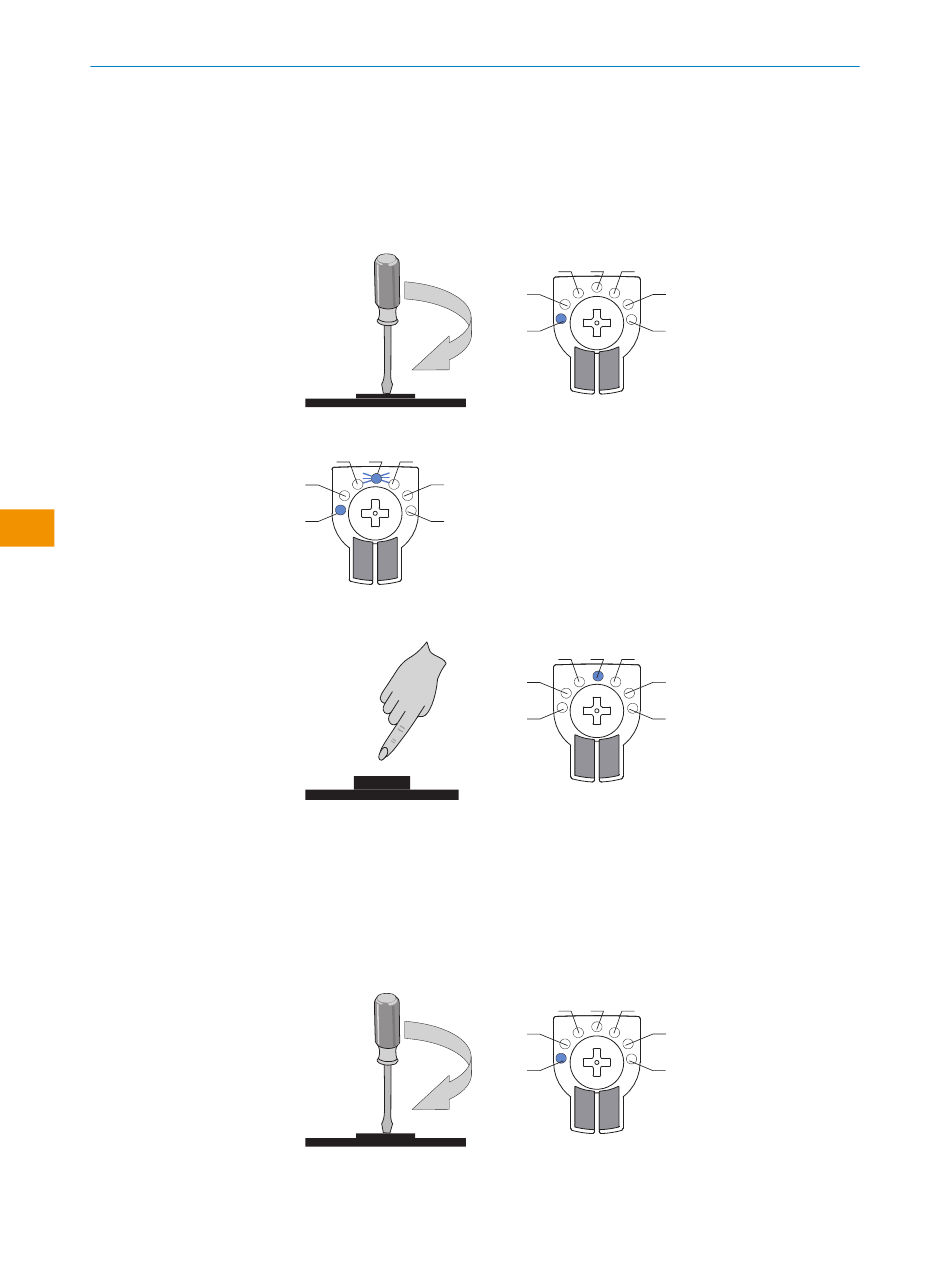

Select the desired basic mode (1-5) by turning the potentiometer.
2.
The desired mode starts to flash.
3
4
5
6
2
1
M
3.
Confirm the desired basic mode by pressing the control element for 1-3 seconds.
Activate with this mode. Blue LED then lights up with the selected mode.
✓
The basic mode is selected.
By activating ApplicationSelect mode, the sensing range of the sensor increases and
sensitivity rises so that even shiny, dark and uneven objects, even in an inclined
position, are reliably detected.
1.
After setting the MultiMode 1 basic mode, ApplicationSelect mode can also be acti‐
vated. To do so, select ApplicationSelect mode by turning the potentiometer to LED 6
2.
The desired mode LED 6 starts flashing.
3
4
5
6
2
1
M
3
4
5
6
2
1
M
3
4
5
6
2
1
M
8027716/2022-04-12 | SICK
