OPERATING INSTRUCTIONS

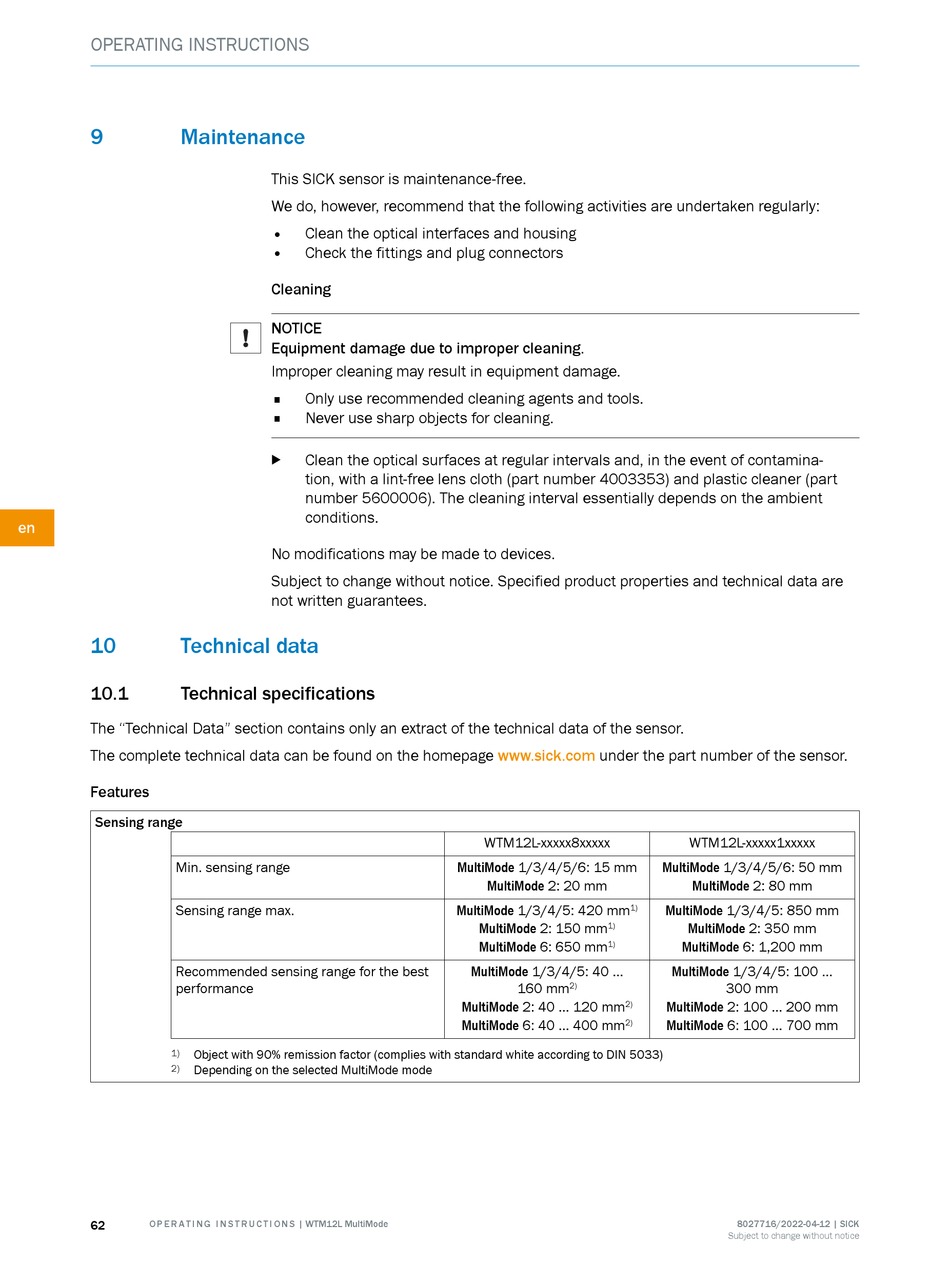

9 Maintenance
en
10

Technical data

10.1

Technical specifications

The "Technical Data" section contains only an extract of the technical data of the sensor.
The complete technical data can be found on the homepage
Features
Sensing range
Min. sensing range
Sensing range max.
Recommended sensing range for the best
performance
1) Object with 90% remission factor (complies with standard white according to DIN 5033)
2) Depending on the selected MultiMode mode
62 O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
This SICK sensor is maintenance-free.
We do, however, recommend that the following activities are undertaken regularly:
• Clean the optical interfaces and housing
• Check the fittings and plug connectors
Cleaning
NOTICE
Equipment damage due to improper cleaning.
Improper cleaning may result in equipment damage.
Only use recommended cleaning agents and tools.
■
Never use sharp objects for cleaning.
■
Clean the optical surfaces at regular intervals and, in the event of contamina‐
b
tion, with a lint-free lens cloth (part number 4003353) and plastic cleaner (part
number 5600006). The cleaning interval essentially depends on the ambient
conditions.
No modifications may be made to devices.
Subject to change without notice. Specified product properties and technical data are
not written guarantees.
www.sick.com under the part number of the sensor.
WTM12L-xxxxx8xxxxx
MultiMode 1/3/4/5/6: 15 mm
MultiMode 2: 20 mm
MultiMode 1/3/4/5: 420 mm 1)
MultiMode 2: 150 mm
1)
MultiMode 6: 650 mm
1)
MultiMode 1/3/4/5: 40 ...
160 mm
2)
MultiMode 2: 40 ... 120 mm
2)
MultiMode 6: 40 ... 400 mm 2)
WTM12L-xxxxx1xxxxx
MultiMode 1/3/4/5/6: 50 mm
MultiMode 2: 80 mm
MultiMode 1/3/4/5: 850 mm
MultiMode 2: 350 mm
MultiMode 6: 1,200 mm
MultiMode 1/3/4/5: 100 ...
300 mm
MultiMode 2: 100 ... 200 mm
MultiMode 6: 100 ... 700 mm
