6.3.3

Teaching in sensor in MultiMode 1 and 1+6:

8027716/2022-04-12 | SICK
Subject to change without notice
3 4 5
6
2
1 M
3. Confirm the desired ApplicationSelect mode by pressing the control element. Acti‐
vate with this mode.
✓
ApplicationSelect mode is active.

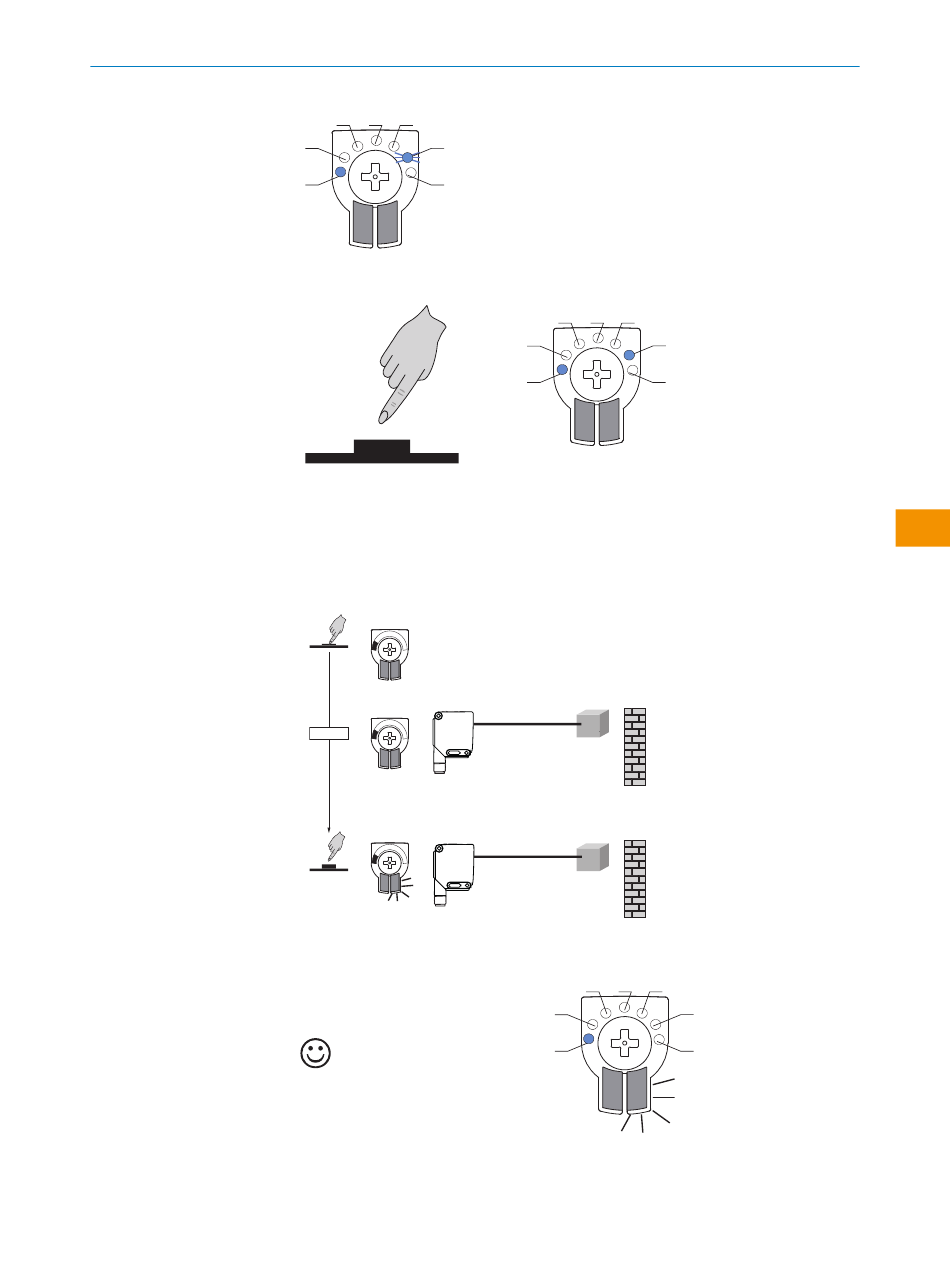

Teaching in the sensor with background suppression
1. Position object in the desired position and press the control element for 1-3 sec‐
onds until the yellow LED flashes.
1...3 sec.
✓
The sensor is adjusted and ready for operation.
Table 6: Teach result with object
Object present
Please refer to the enclosed "IO-Link photoelectric sensors" operating instructions for
information about adjusting the IO-Link sensing range.
OPERATING INSTRUCTIONS
3 4 5
6
2
1 M
3 4 5
6
2
1 M
O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
en
57
