OPERATING INSTRUCTIONS
4
Mounting
en
44
O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
NOTE
Operating mode 6 can only be used together with background suppression (LED 1).
Mount the sensor using a suitable mounting bracket (see the SICK range of accesso‐
ries).
Note the maximum permissible tightening torque for the sensor of 1.4 Nm.
Mounting with the background suppression principle of operation
MultiMode 1, 3, 4, 5, 6, M:
Note the preferred alignment of the sensor relative to the movement direction of the
object, see
figure
3.

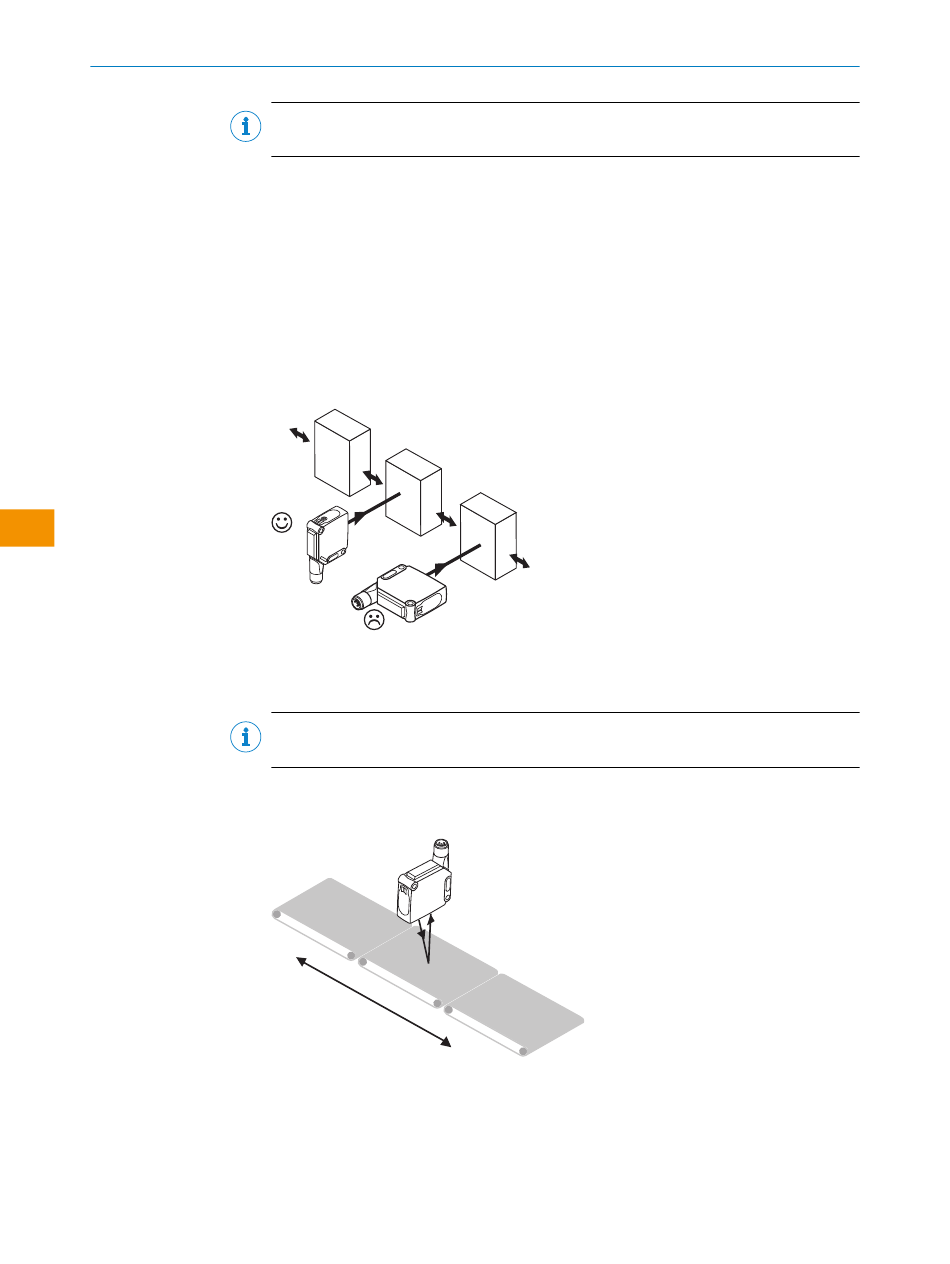

Figure 3: Alignment of the sensor relative to the object direction
Note the preferred direction of the object relative to the sensor, cf.
NOTE
WTM12L: No preferred direction must be observed in mode M.
Mounting with the foreground suppression principle of operation
MultiMode 2:
Figure 4: Alignment of the sensor
Note the preferred direction of the object relative to the sensor, cf.
figure
19.
figure
4.
8027716/2022-04-12 | SICK
Subject to change without notice
