OPERATING INSTRUCTIONS
6.3.4
Setting in MultiMode 3-5:
en
58
O P E R A T I N G I N S T R U C T I O N S | WTM12L MultiMode
Teaching in the sensor with background suppression and 2 switching points
NOTE
In MultiMode 4: First taught-in sensing range is always Q1 and is symbolized by LED
3. Second taught-in sensing range is always Q2 and is symbolized by LED 5.
1.

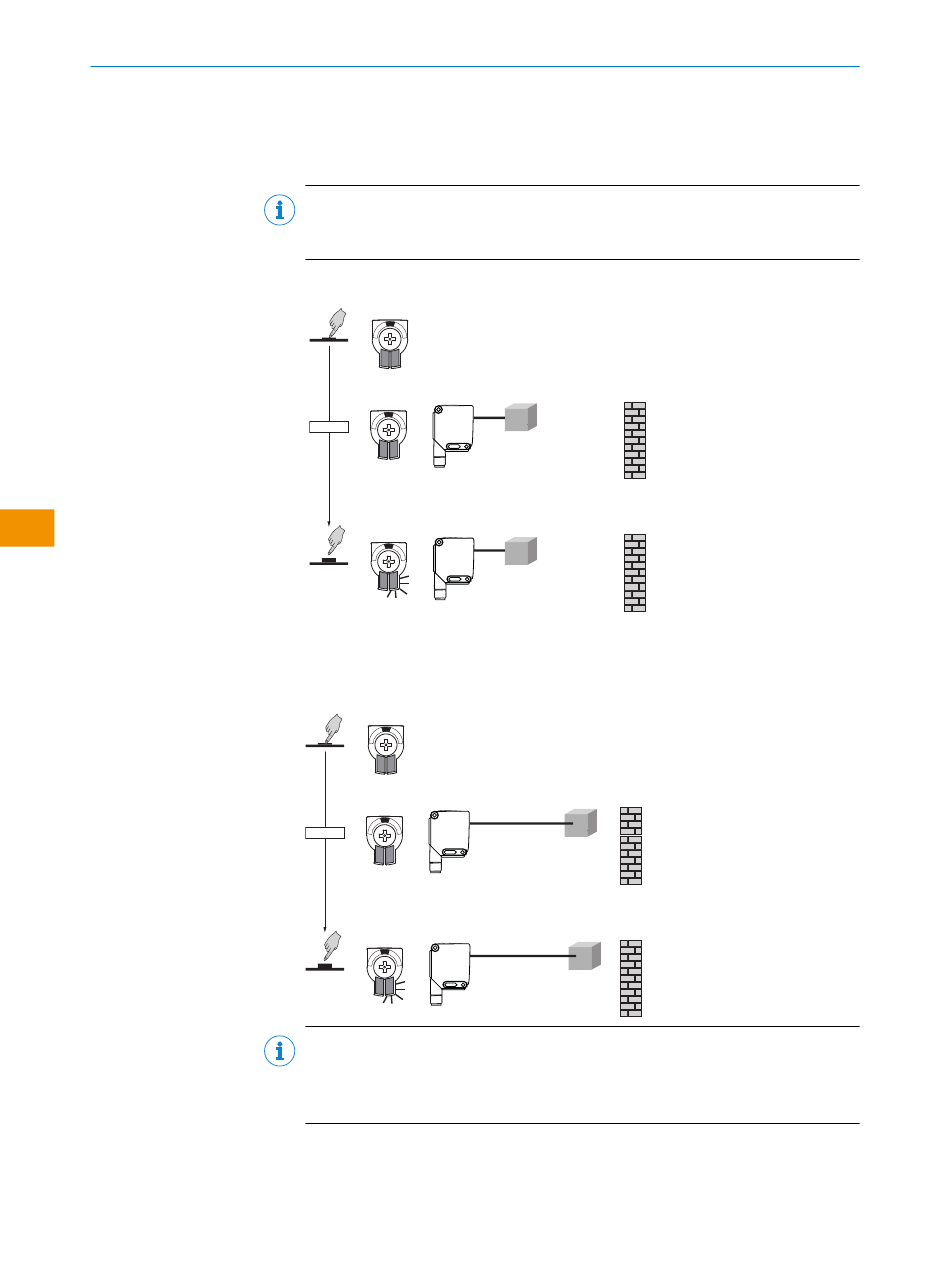

Position object in desired position 1 and press the control element for 1-3 seconds
until the yellow LED flashes.
1...3 sec.
✓
Sensing range Q1 is set.
2.
After a short pause, the yellow LED flashes again, now the 2nd sensing range can
be taught in.
3.
Position object in the desired position 2 and press the control element for 1-3 sec‐
onds until the yellow LED flashes.
1...3 sec.
NOTE
Addition for mode 3: Set sensing range is now exactly between the 2 taught-in
points
Supplement for mode 5: QL (window signal, derived from Qint.1 and Qint.2)
LED display for MultiMode 4 (2 independent switching points):
Case 1:
8027716/2022-04-12 | SICK
Subject to change without notice
