System Operation
en

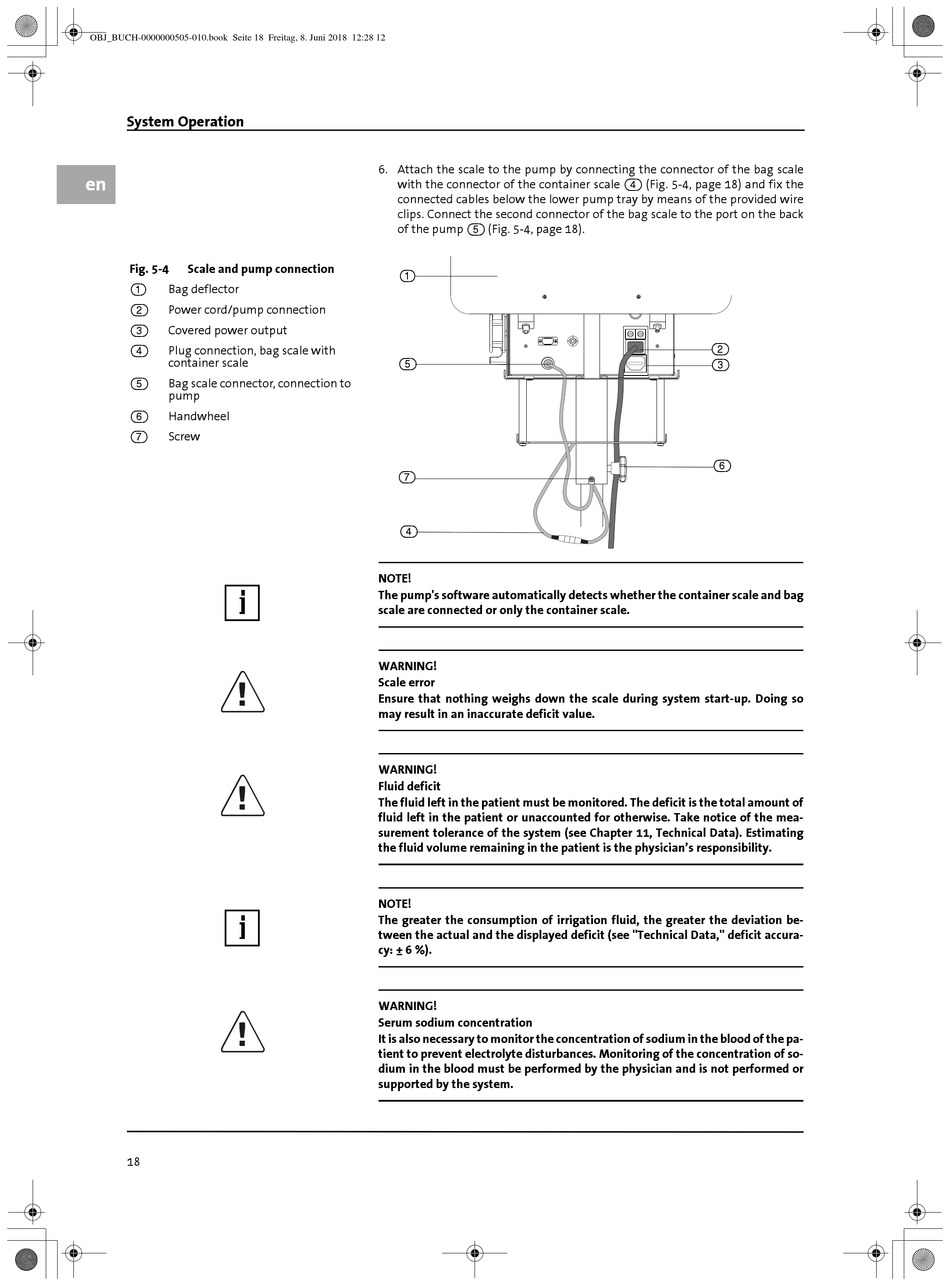

Fig. 5-4
Scale and pump connection
Bag deflector
(1)
(2)
Power cord/pump connection
Covered power output
(3)
(4)
Plug connection, bag scale with
container scale
Bag scale connector, connection to
(5)
pump
Handwheel
(6)
(7)
Screw
18
6. Attach the scale to the pump by connecting the connector of the bag scale
with the connector of the container scale (4) (Fig. 5-4, page 18) and fix the
connected cables below the lower pump tray by means of the provided wire
clips. Connect the second connector of the bag scale to the port on the back
of the pump (5) (Fig. 5-4, page 18).
(1)
(5)
(7)
(4)
NOTE!
The pump's software automatically detects whether the container scale and bag
scale are connected or only the container scale.
WARNING!
Scale error
Ensure that nothing weighs down the scale during system start-up. Doing so
may result in an inaccurate deficit value.
WARNING!
Fluid deficit
The fluid left in the patient must be monitored. The deficit is the total amount of
fluid left in the patient or unaccounted for otherwise. Take notice of the mea-
surement tolerance of the system (see Chapter 11, Technical Data). Estimating
the fluid volume remaining in the patient is the physician's responsibility.
NOTE!
The greater the consumption of irrigation fluid, the greater the deviation be-
tween the actual and the displayed deficit (see "Technical Data," deficit accura-
cy: ± 6 %).
WARNING!
Serum sodium concentration
It is also necessary to monitor the concentration of sodium in the blood of the pa-
tient to prevent electrolyte disturbances. Monitoring of the concentration of so-
dium in the blood must be performed by the physician and is not performed or
supported by the system.
(2)
(3)
(6)
