System Operation
en

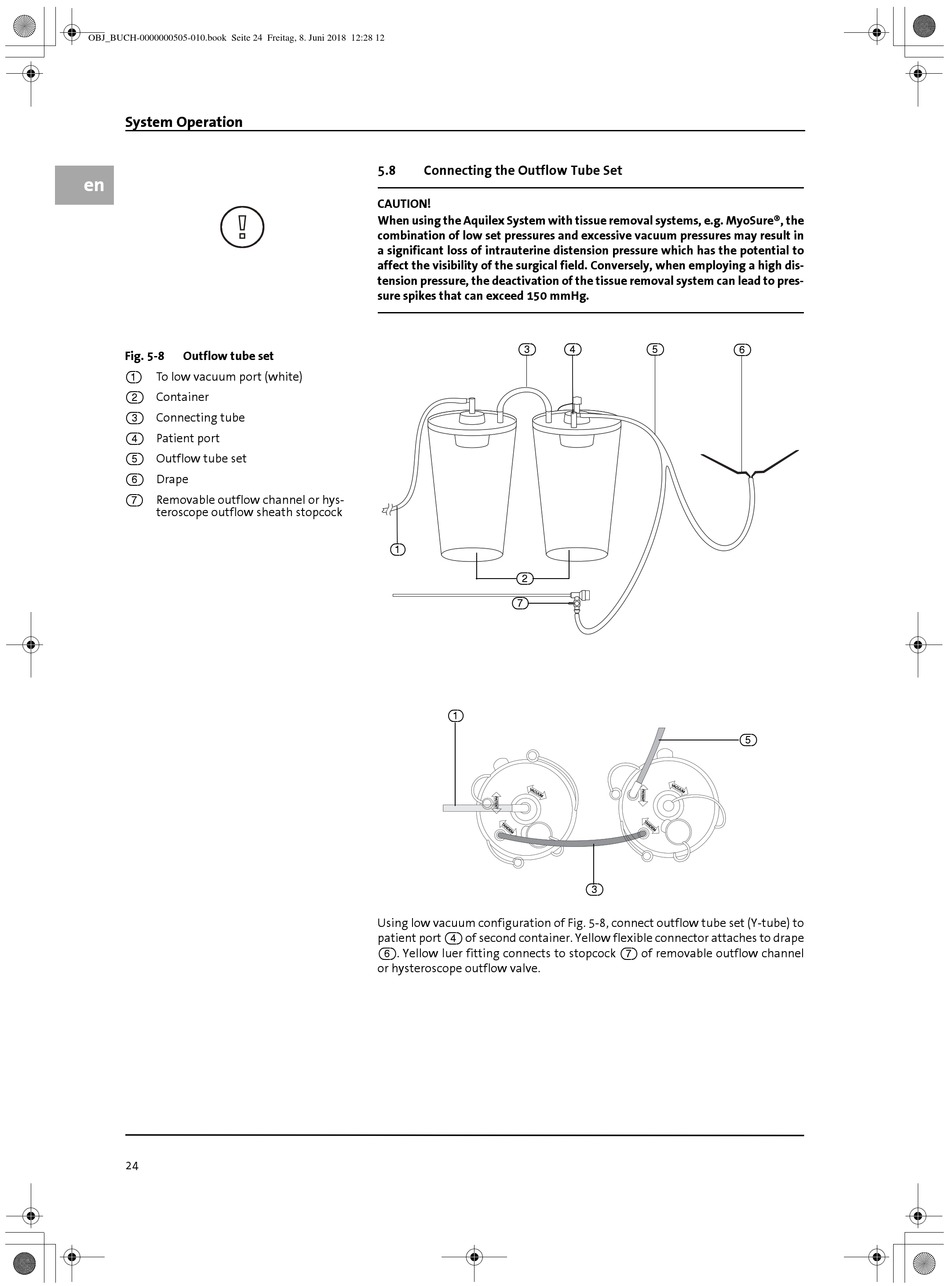

Fig. 5-8 Outflow tube set
To low vacuum port (white)
(1)
(2) Container
(3) Connecting tube
(4) Patient port
(5) Outflow tube set
(6) Drape
(7) Removable outflow channel or hys-
teroscope outflow sheath stopcock
24
5.8

Connecting the Outflow Tube Set

CAUTION!
When using the Aquilex System with tissue removal systems, e.g. MyoSure®, the
combination of low set pressures and excessive vacuum pressures may result in
a significant loss of intrauterine distension pressure which has the potential to
affect the visibility of the surgical field. Conversely, when employing a high dis-
tension pressure, the deactivation of the tissue removal system can lead to pres-
sure spikes that can exceed 150 mmHg.
(3)
(1)
(2)
(7)
(1)
Using low vacuum configuration of Fig. 5-8, connect outflow tube set (Y-tube) to
patient port (4) of second container. Yellow flexible connector attaches to drape
(6). Yellow luer fitting connects to stopcock (7) of removable outflow channel
or hysteroscope outflow valve.
(4) (5)
(6)
(5)
(3)
