System Operation

en

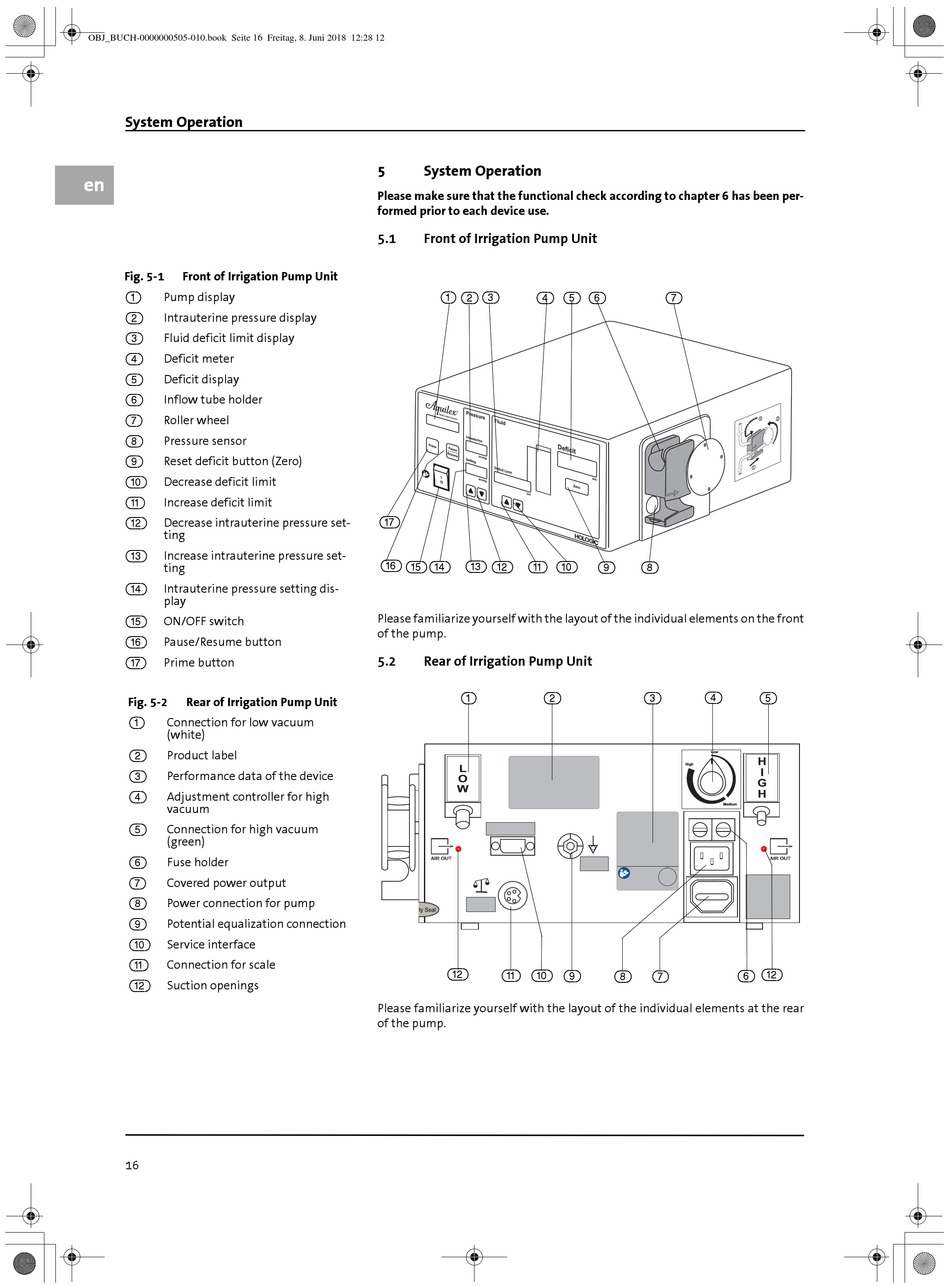

Fig. 5-1

Front of Irrigation Pump Unit

Pump display
(1)
(2) Intrauterine pressure display
Fluid deficit limit display
(3)
Deficit meter
(4)
Deficit display
(5)
Inflow tube holder
(6)
Roller wheel
(7)
Pressure sensor
(8)
Reset deficit button (Zero)
(9)
Decrease deficit limit
(10)
(11) Increase deficit limit
Decrease intrauterine pressure set-
(12)
ting
Increase intrauterine pressure set-
(13)
ting
(14) Intrauterine pressure setting dis-
play
ON/OFF switch
(15)
Pause/Resume button
(16)
Prime button
(17)
Fig. 5-2

Rear of Irrigation Pump Unit

Connection for low vacuum
(1)
(white)
Product label
(2)
Performance data of the device
(3)
Adjustment controller for high
(4)
vacuum
(5) Connection for high vacuum
(green)
Fuse holder
(6)
Covered power output
(7)
Power connection for pump
(8)
(9) Potential equalization connection
Service interface
(10)
(11) Connection for scale
Suction openings
(12)
16
5 System Operation
Please make sure that the functional check according to chapter 6 has been per-
formed prior to each device use.
5.1 Front of Irrigation Pump Unit
(1) (2) (3) (4) (5) (6)
(17)
(16)
(15)(14) (13) (12) (11) (10)
Please familiarize yourself with the layout of the individual elements on the front
of the pump.
5.2 Rear of Irrigation Pump Unit
(1) (2)
Aquilex Fluid Control System TM
TYPE
L
SN / REF Ser. Nr. WOM
100-240 V / 50-60 Hz
O
YYYY-MM
W
(12)
(11) (10)
Please familiarize yourself with the layout of the individual elements at the rear
of the pump.
(7)
(9) (8)
(3) (4)
Low
High
/
Medium
Potential
Equalization
(9) (6)
(8) (7)
(5)
H
I
G
H
only for
®
MyoSure
(12)
