1. Switch system on. (See Chapter 5.4, Turning On the Aquilex System)
2. Insert tube set into pump and close clamps on the bags.
3. Hang the fluid bags onto the fluid bag hooks.
4. Insert tap spikes into the fluid bags and open clamps on the fluid bags.
5. Insert hysteroscope tube into the measuring cup.
6. Set intrauterine nominal pressure to 150 mmHg.
7. Press the Prime button
8. The roller wheel starts to rotate in order to remove the air from the tubes and
to carry out the automatic lumen calibration.
9. When the automatic lumen calibration is completed, press Pause/Resume
button (about 20 seconds).
10. Empty the measuring cup.
11. Place hysteroscope tube back into the measuring cup.
12. Press the Pause/Resume button.
13. Press Pause/Resume button after one minute. The measuring cup should
contain approx. 800 ml +/- 60 ml of fluid.
Enter the results into the test log in section 16.1. The test is successfully complet-
ed when the results are within the permissible tolerance limit.
9.2.3

Pressure Measuring Test

The test setup is depicted in Fig. 9-2.
The pressure test checks the pressure chamber, the pressure sensor, and the ac-
curacy of the pressure measurement, to ensure that all elements function cor-
rectly. For this test, an inflow tube set and a water-filled container is required.
The height of the water column (hydrostatic pressure) is used to test the pressure
transducer.
Annual Inspection

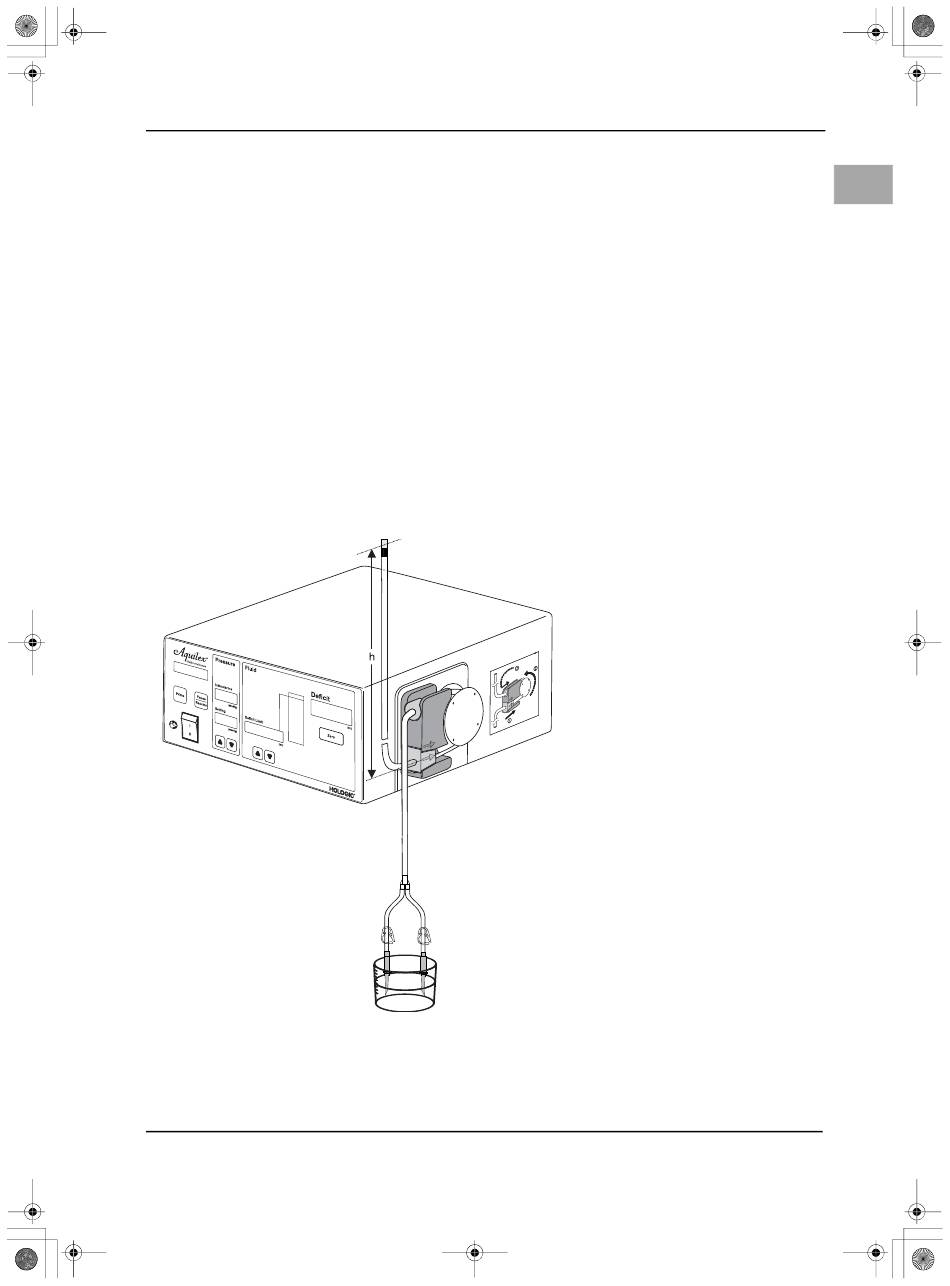

Fig. 9-2 Set-up of pressure measuring
test
h Height of the water line
