• Connection for high vacuum (green)
· Connect vacuum tube set with the green connectors to the high vacuum
port (green) (8) in Fig. 5-6. This vacuum can be adjusted to a maximum
500 mmHg using adjustment dial.
· Use the connecting tube ((12) Fig. 5-6) when two containers are serially
connected to the same vacuum port.
(6)
(7)
5.4

Turning On the Aquilex System

1. Press the ON/OFF switch. The displays and indicators light up and system
turns on.
2. The system now performs a device self-test.
The device self-test is used by the system to check whether the container and
the bag scale are connected, among others. If the bag scale is not connected,
the message "System OK. Bag Scale Not Connected" is displayed. In this case,
please check the appropriate data connection of the scales with the pump ac-
cording to chapter 5.3.
(12)
(11)
on ly
for
My oS
ur e
®
(8)
System Operation

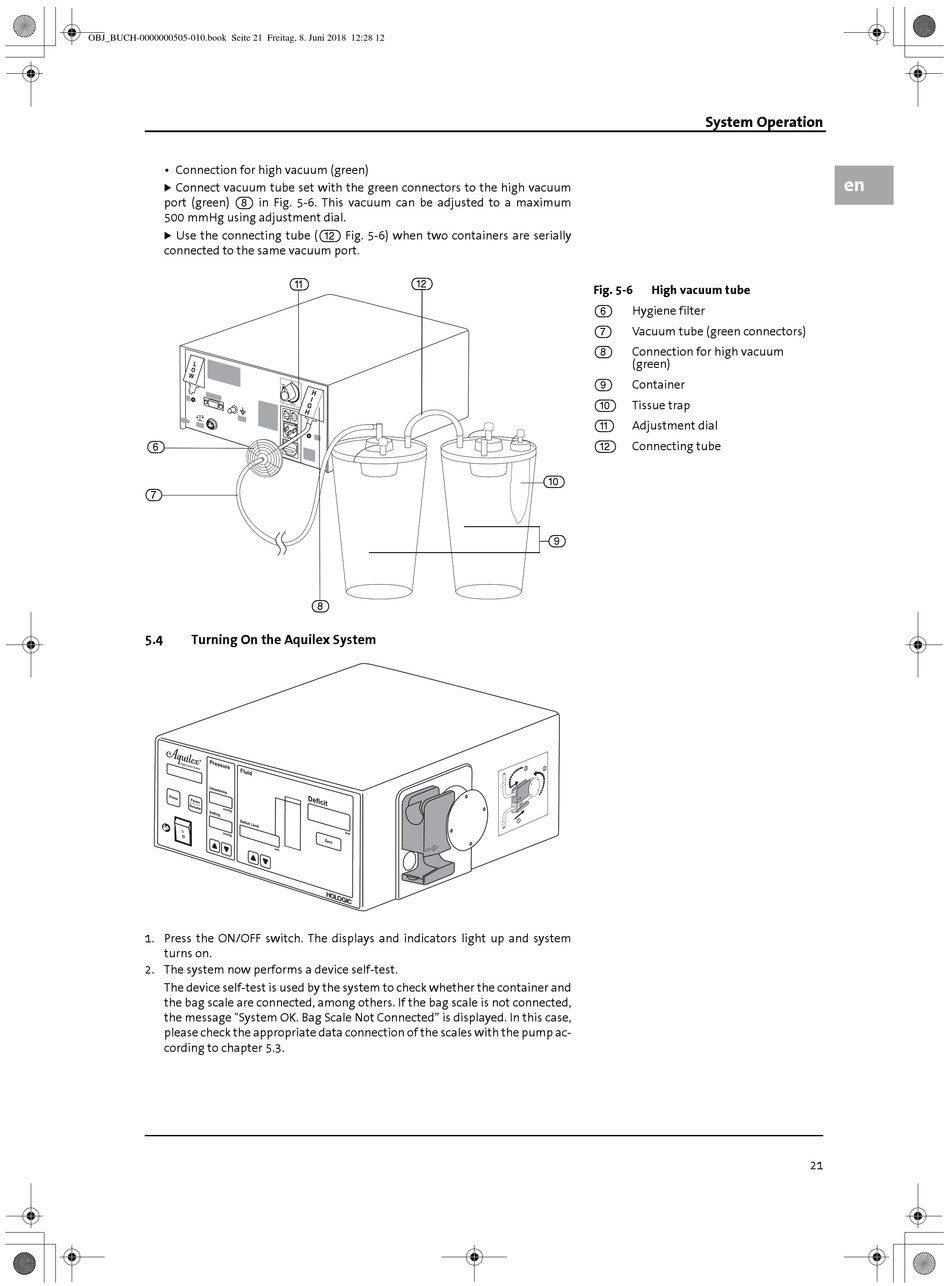

Fig. 5-6 High vacuum tube
(6) Hygiene filter
Vacuum tube (green connectors)
(7)
(8) Connection for high vacuum
(green)
Container
(9)
Tissue trap
(10)
Adjustment dial
(11)
(12) Connecting tube
(10)
(9)
