System Operation
en

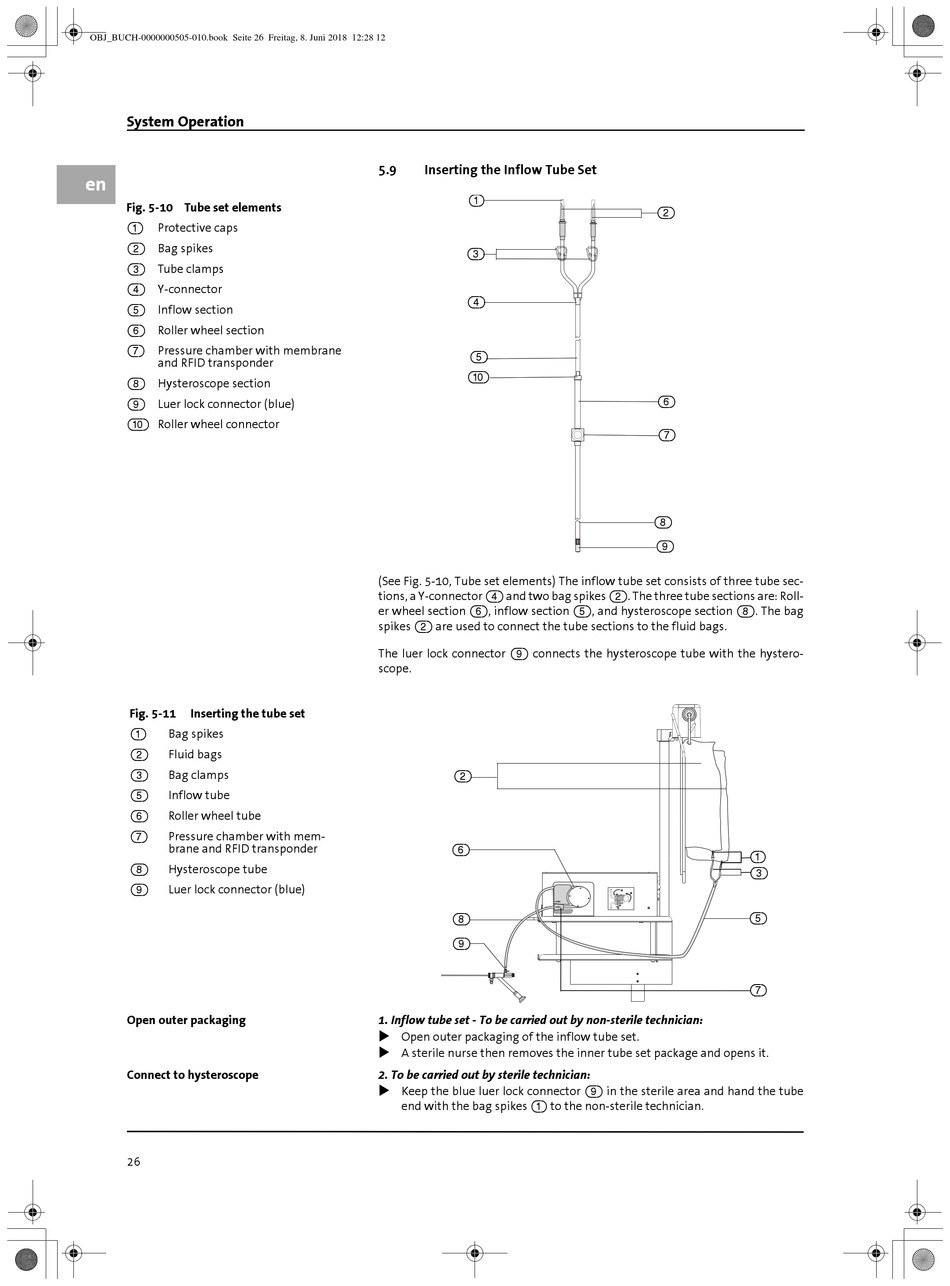

Fig. 5-10 Tube set elements
Protective caps
(1)
(2) Bag spikes
(3) Tube clamps
(4) Y-connector
(5) Inflow section
(6) Roller wheel section
(7) Pressure chamber with membrane
and RFID transponder
(8) Hysteroscope section
(9) Luer lock connector (blue)
(10) Roller wheel connector
Fig. 5-11 Inserting the tube set
Bag spikes
(1)
Fluid bags
(2)
(3) Bag clamps
Inflow tube
(5)
(6) Roller wheel tube
Pressure chamber with mem-
(7)
brane and RFID transponder
Hysteroscope tube
(8)
Luer lock connector (blue)
(9)
Open outer packaging
Connect to hysteroscope
26
5.9

Inserting the Inflow Tube Set

(1)
(3)
(4)
(5)
(10)
(See Fig. 5-10, Tube set elements) The inflow tube set consists of three tube sec-
tions, a Y-connector (4) and two bag spikes (2). The three tube sections are: Roll-
er wheel section (6), inflow section (5), and hysteroscope section (8). The bag
spikes (2) are used to connect the tube sections to the fluid bags.
The luer lock connector (9) connects the hysteroscope tube with the hystero-
scope.
(2)
(6)
(8)
(9)
1. Inflow tube set - To be carried out by non-sterile technician:

Open outer packaging of the inflow tube set.

A sterile nurse then removes the inner tube set package and opens it.
2. To be carried out by sterile technician:

Keep the blue luer lock connector (9) in the sterile area and hand the tube
end with the bag spikes (1) to the non-sterile technician.
(2)
(6)
(7)
(8)
(9)
(1)
(3)
3
2
1
(5)
(7)
