Initial System Set-up
Grounding contact
en
Only for U.S. operators
Potential equalization
Precautionary measures

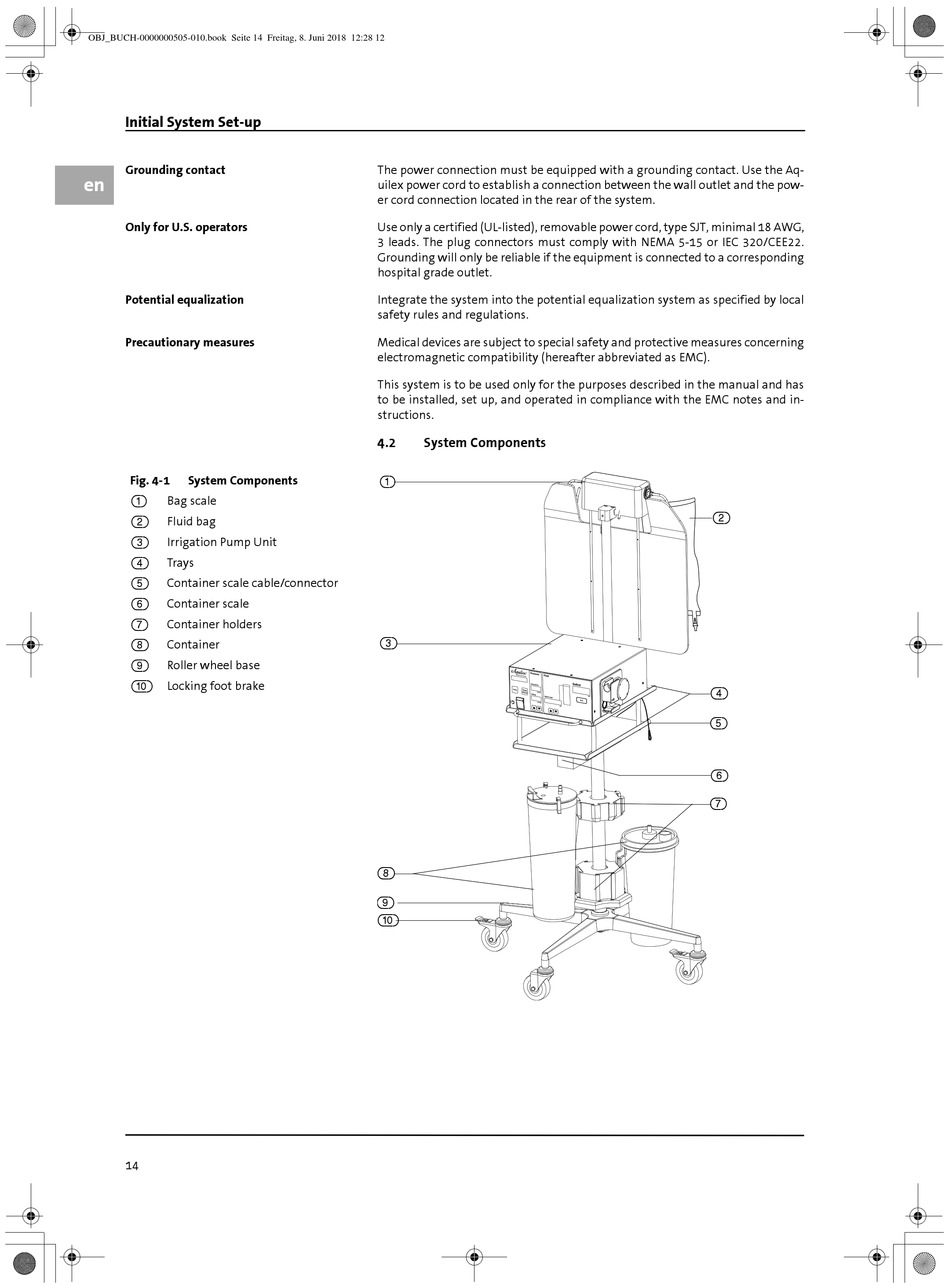

Fig. 4-1

System Components

Bag scale
(1)
(2) Fluid bag
Irrigation Pump Unit
(3)
(4) Trays
Container scale cable/connector
(5)
(6) Container scale
Container holders
(7)
Container
(8)
Roller wheel base
(9)
Locking foot brake
(10)
14
The power connection must be equipped with a grounding contact. Use the Aq-
uilex power cord to establish a connection between the wall outlet and the pow-
er cord connection located in the rear of the system.
Use only a certified (UL-listed), removable power cord, type SJT, minimal 18 AWG,
3 leads. The plug connectors must comply with NEMA 5-15 or IEC 320/CEE22.
Grounding will only be reliable if the equipment is connected to a corresponding
hospital grade outlet.
Integrate the system into the potential equalization system as specified by local
safety rules and regulations.
Medical devices are subject to special safety and protective measures concerning
electromagnetic compatibility (hereafter abbreviated as EMC).
This system is to be used only for the purposes described in the manual and has
to be installed, set up, and operated in compliance with the EMC notes and in-
structions.
4.2 System Components
(1)
(3)
(8)
(9)
(10)
(2)
(4)
(5)
(6)
(7)
