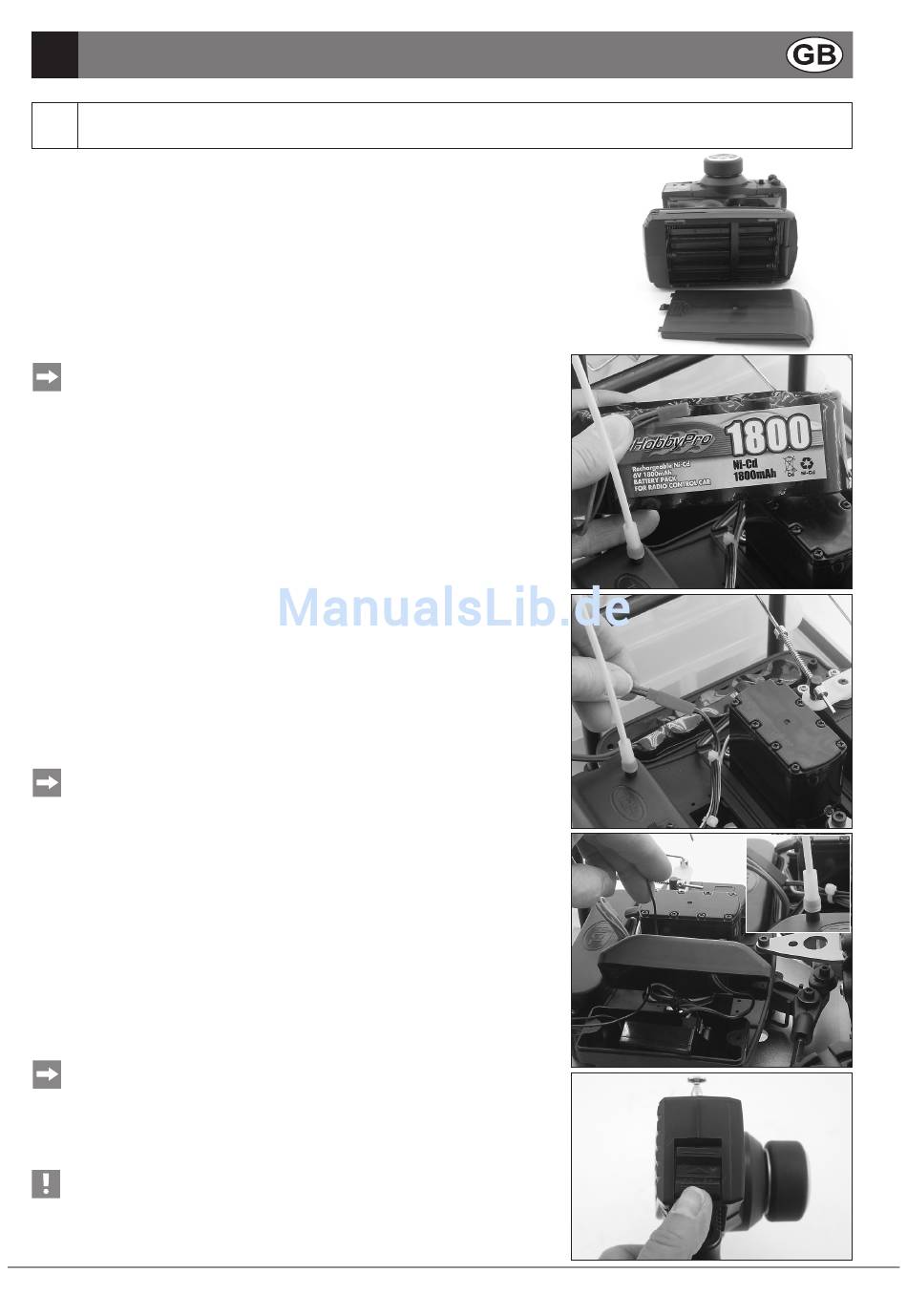

Putting The Rc System Into Operation - Reely BIG PYRO Bedienungsanleitung

4 P
RePaRaTIOn
4.4
s
TaRTInG The
Transmitter
- Remove lid of battery compartment on the lower side of the transmitter.
- Insert 8 AA (rechargeable) batteries in the compartment,
observe the correct polarity!
- Close the lid again
Receiver battery
The rechargeable battery gets hot during charging and therefore should
not be charged in the battery box, in order to ensure sufficient heat dis-
sipation.
- Charge the NiCd rechargeable battery completely!
- Insert the rechargeable battery.
- Close the rechargeable battery box without jamming the cable and
screw together the battery box.
Connecting the receiver
- Open the cover of the receiver box by unscrewing both screws.
- Remove the receiver
- Unwind the wire of the antenna and guide it outwards through the
opening in the cover of the receiver box.
- Place the receiver in the box again.
- Close the receiver box without jamming the cable and
screw together the receiver box
- Connect the cable of the rechargeable battery with the receiver. Connect the cable of the rechargeable battery with the receiver.
The receiver box is screwed at the same time onto the RC board
via the locking screws of the cover!
- Thread the antenna of the receiver through the guide tube of the Thread the antenna of the receiver through the guide tube of the
antenna.
- Insert the lower end of the guide tube of the antenna into the base of Ins
the antenna on the cover of the receiver box
- Secure the wire of the antenna in the base of the antenna with a piece
of fuel hose.
- Fasten the antenna wire on the top at the guidance tube, by wrapping
adhesive tape around it or by placing a rubber cap.
Do not shorten the antenna!
- Switch the transmitter on. The green LED lights up.
If the LED does not light up, check batteries /rechargeable batteries
and replace them, if necessary.
- Switch on the receiver with the switch on the chassis.
The servos must turn in neutral position.
Always switch ON the transmitter first then the receiver.
First switch OFF the receiver, then the transmitter.
