Installation and assembly

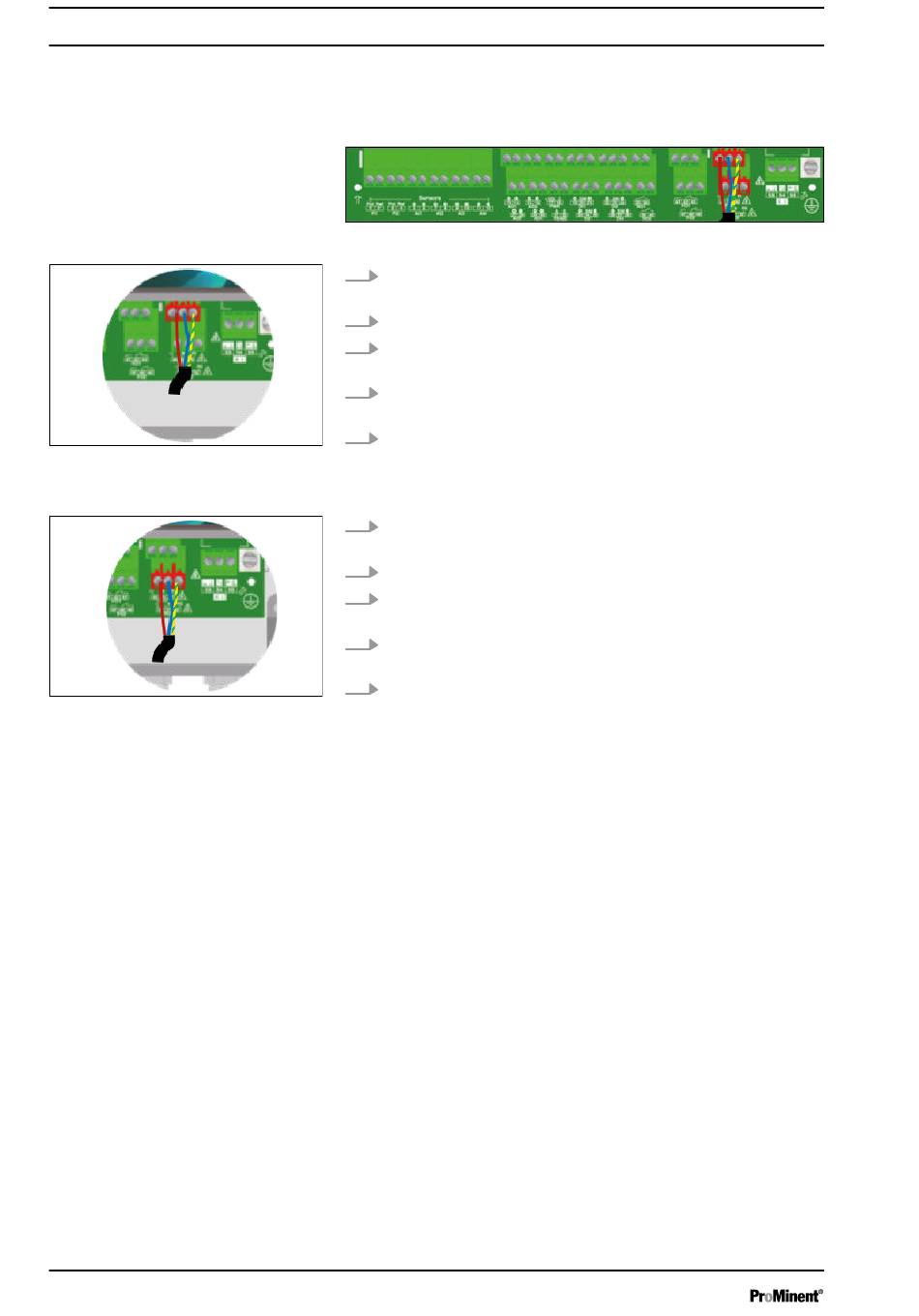

4.3.6 Connectors for self-fed relay outputs (PO1 and PO2)

Fig. 25: Mains power terminal strip
PO1
Fig. 26: Mains power terminal strip
PO2
34
The self-fed PO1 output relay output (primary power supply =
voltage available at P3) can be used for metering, alarm, timer...
Fig. 24: Connectors for self-fed relay outputs (PO1 and PO2)
1. Strip away 7 mm of the insulation on the 3 leads of the power
PO1
cable of the device.
2. Insert the 3-pole cable through a cable gland.
3. Connect the phase to L1 (44) and the neutral conductor to N
(45) on the mains power terminal strip PO1.
4. Connect the earth to PE (46) on the mains terminal strip
PO1.
5. Tighten the cable gland to make a seal.
A3009
1. Strip away 7 mm of the insulation on the 3 leads of the power
PO2
cable of the device.
2. Insert the 3-pole cable through a cable gland.
3. Connect the phase to L1 (50) and the neutral conductor to N
(51) on the mains power terminal strip PO2.
4. Connect the earth to PE (52) on the mains terminal strip
PO2.
5. Tighten the cable gland to make a seal.
A3010
A3008
