8.1.2.3 Configuration of the digital input
'TIMERS' configuration and installation
8.1.2.4 Menu:
Setting measuring and control parameters
You can configure the digital inputs here. Press the selection
button to be set and set the respective input within the possible
parameters.
To remove a sensor from the selection: select " NO " from the
sensor list and save your configuration by pressing "SAVE".
Setting the digital input
DI1 function – Water circulation system
Contact in a de-energised state
Activation delay time
Deactivation delay time

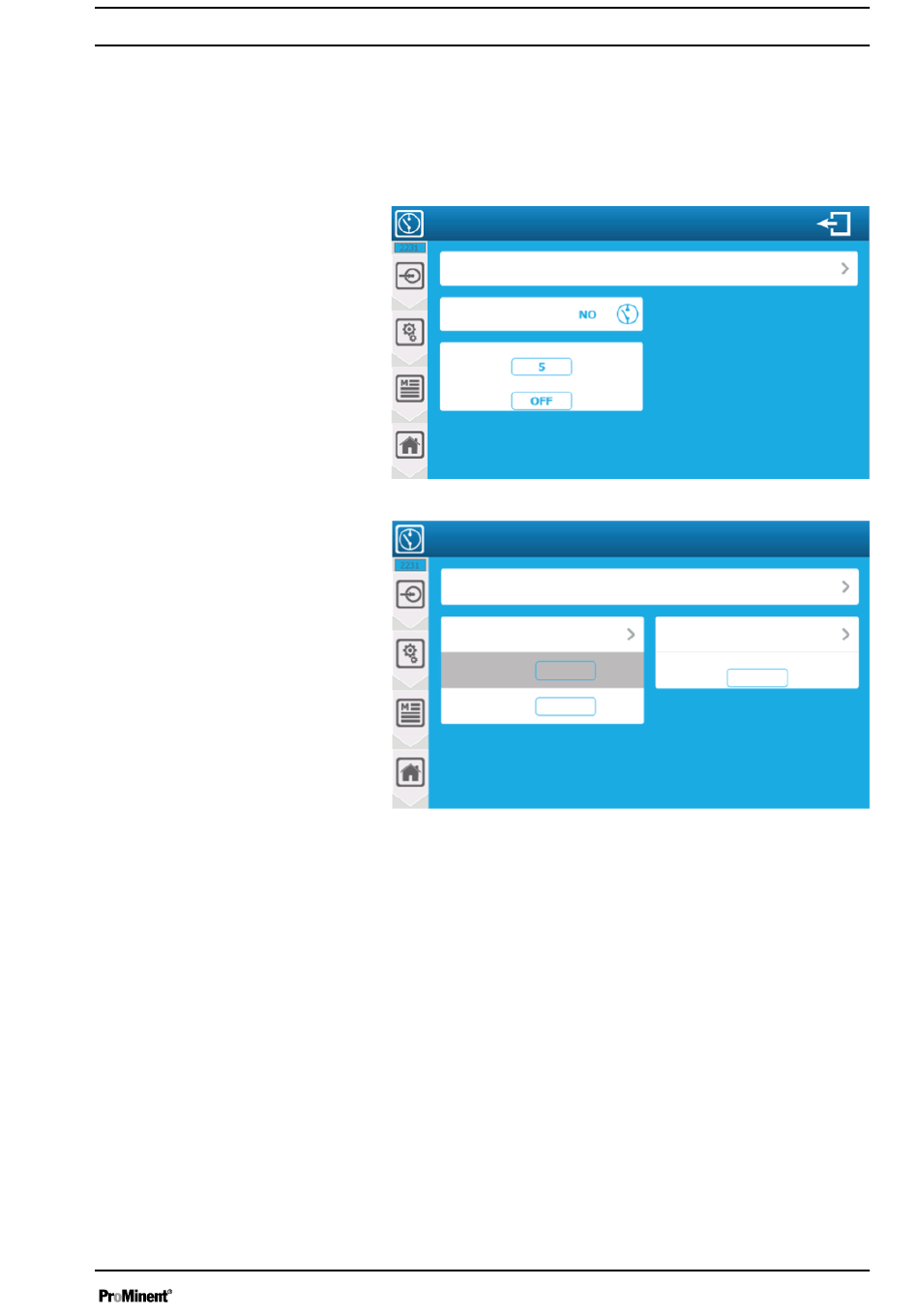

Fig. 78: Standard case
Setting the digital input
DI1 function – Flow
Unit: l/h
Min. flow volume: 0
Max. flow volume: 100
Fig. 79: Special case of a pulse flow
Volume per pulse ratio of 1,0000 pulse/l: enter the pulse weight for
the flow calculation. This is the actual value (1.0000). This value is
directly related to your flow rate and your system. Refer to the flow
volume documentation to calculate the current value. Press the
display field to open the numeric keyboard and enter the required
value.
'TIMERS' menu provides access to the configuration of the
The
TIMERS, which can be used to control relay or parameter opera‐
tion.
Seconds
Seconds
Unit: pulse/l
Volume per pulse ratio
l/h
10000
l/h
A3115
Pulse/l
A3116
