7.4 Ethernet modem connector

7.5 Setting up the communication

Communication programming instructions
10
11

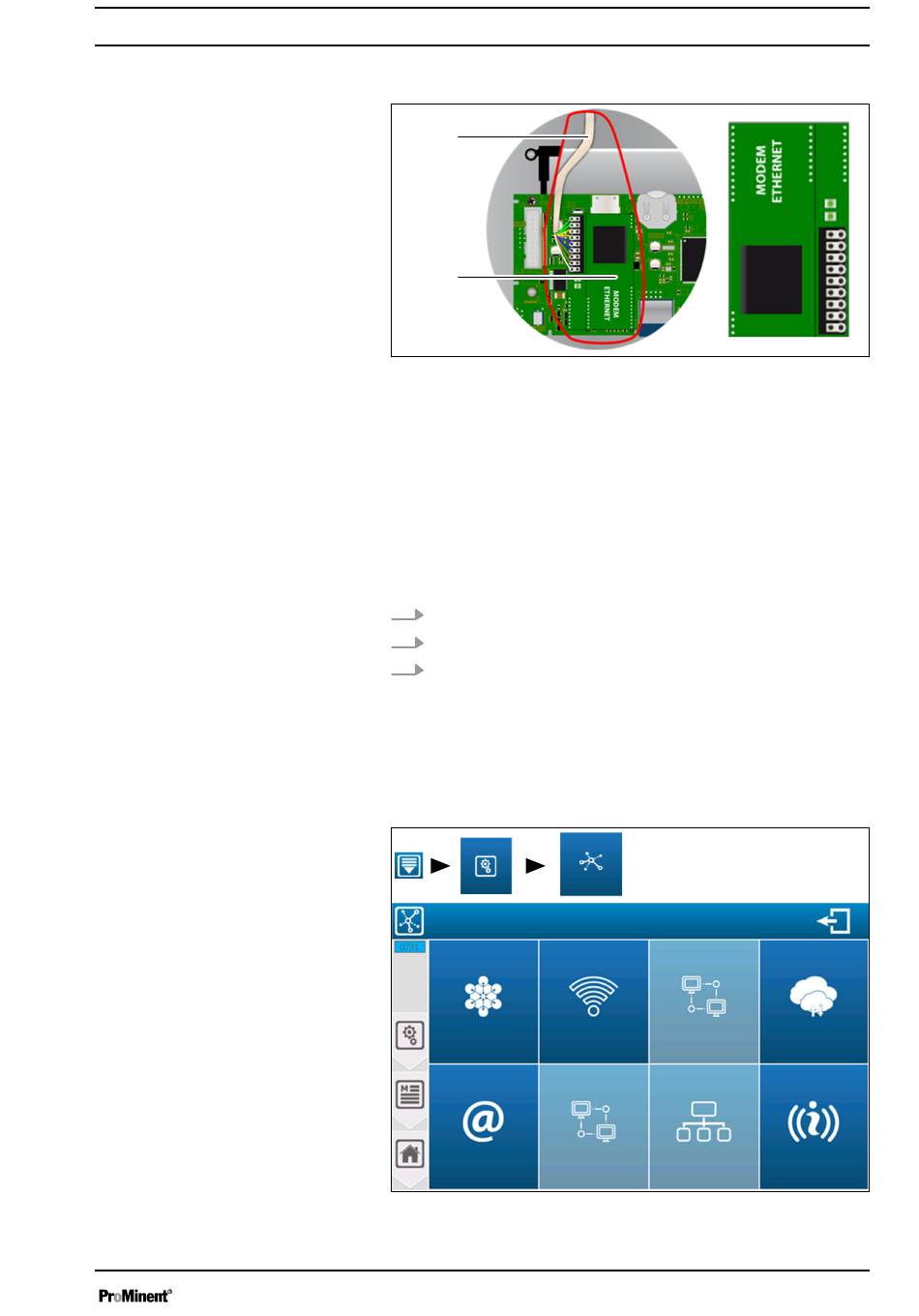

Fig. 65: Ethernet modem connector
1 Cable: Green/White
2 Cable: Green
3 Cable: Orange/White
4 Cable: Orange
5 Cable: Blue/White
6 Cable: Blue
7 Cable: Brown/White
8 Cable: Brown
9 Cable: Earthing
10 Connecting cable to the network
11 Ethernet modem
1. Install the Ethernet modem (11) at its intended position.
2. Guide the cable through the cable gland to the network (10).
3. Connect wires 1 ... 9, as shown.
To connect the device to the bus, the RS485 communication of the
device and the other systems connected to the same bus must be
identical.
Menu
Settings
Communication
Communication settings
MODBUS MODBUS
Manufacturer
ETHERNET
Fig. 66: Setting up the communication
WIFI ETHERNET ETHERNET
MODEM MODUS
SLAVES
9
8
7
6
5
4
3
2
1
A3054
INTERNET
WEB SERVICE
COMMUNICATION
INFO
A3055
