Operating concept and operation

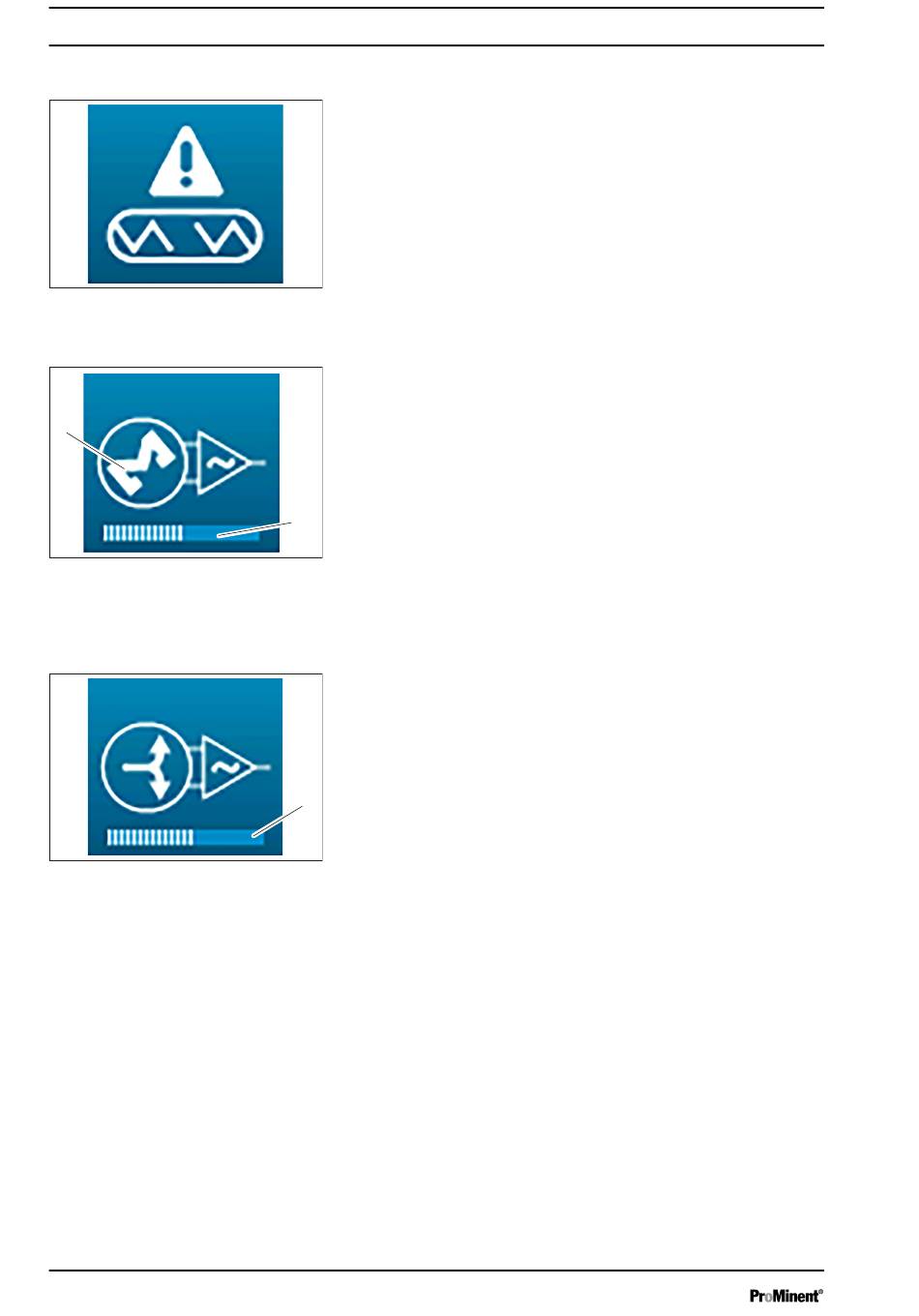

Protective fuse out of action
Fig. 41: Protective fuse out of action
4 ... 20mA output in metering mode
2
Fig. 42: 4 ... 20mA output in metering
mode
4 ... 20mA output in transmission
mode
Fig. 43: 4 ... 20mA output in transmis‐
sion mode
42
The self-fed PO1 and PO2 relays have a TR5 fuse. If a fuse is
destroyed, a special symbol (see figure opposite) appears on the
relevant output.
A3028
A bar diagram (1) showing the metering capacity of the 4 ... 20 mA
output. Of 0 ... 100%.
Rotation (2) according to the capacity.
1
A3029
A bar diagram (1) showing the level of the 4...20 mA output. From
0/4 mA ... 20 mA.
1
A3030
