4.3.5.8 Connection of a flow meter sensor to DI3:
4.3.5.9 Serial input SI1
Connecting a CTFS sensor to SI1:

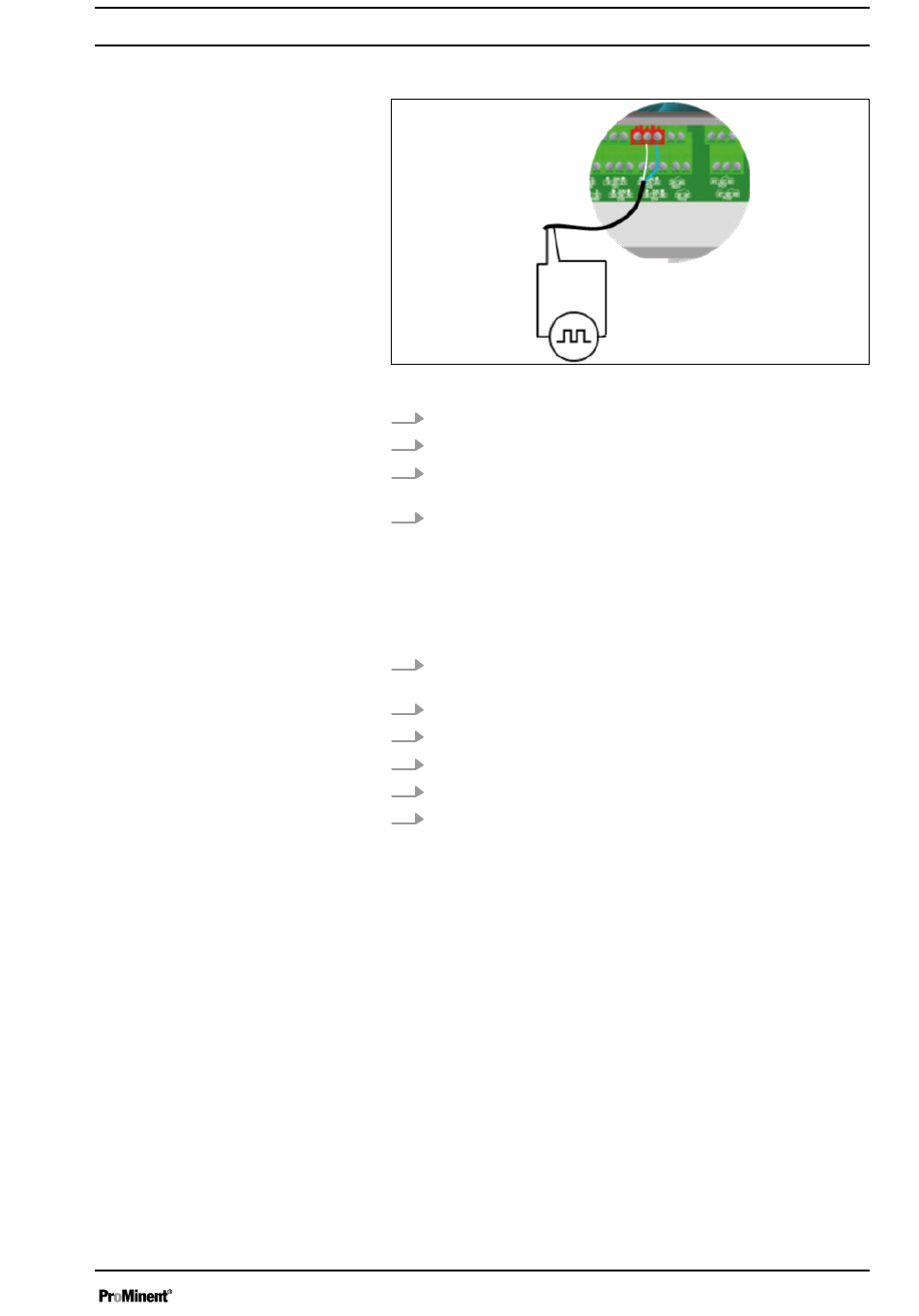

Fig. 23: Connection of a flow meter sensor to DI3
1. Use a two-core cable.
2. Connect a sensor core to connector DI3 (SW) (23).
3. Connect the other sensor core to the connector DI3 (minus)
(24).
4. Tighten the cable gland to form a seal.
The controller has 1 serial input to which 1 CTFS sensor can be
connected.
1. Strip the sleeve from the end of the cable as shown in and
press on the corresponding cable end sleeves.
2. Insert the cable through a cable gland.
3. Connect the red core to SI1 + (9).
4. Connect the black core to SI1 - (10).
5. Connect the green core to SI1 (11).
6. Tighten the cable gland to form a seal.
Installation and assembly
