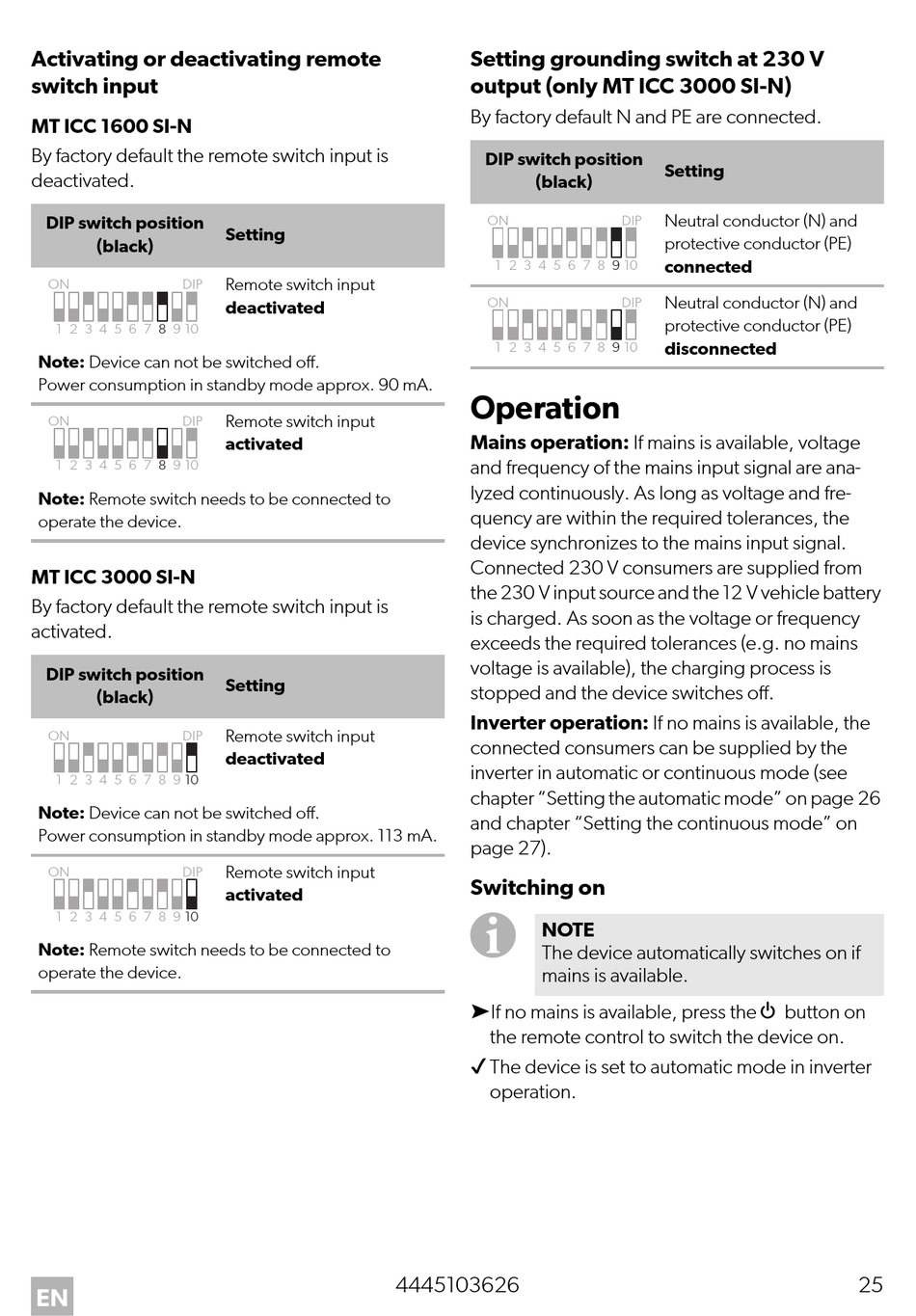

Activating or deactivating remote
switch input
MT ICC 1600 SI-N
By factory default the remote switch input is
deactivated.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
Note: Device can not be switched off.
Power consumption in standby mode approx. 90 mA.
ON DIP
1 2 3 4 5 6 7 8 9 10
Note: Remote switch needs to be connected to
operate the device.
MT ICC 3000 SI-N
By factory default the remote switch input is
activated.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
Note: Device can not be switched off.
Power consumption in standby mode approx. 113 mA.
ON DIP
1 2 3 4 5 6 7 8 9 10
Note: Remote switch needs to be connected to
operate the device.
EN
Setting
Remote switch input
deactivated
Remote switch input
activated
Setting
Remote switch input
deactivated
Remote switch input
activated
4445103626
Setting grounding switch at 230 V
output (only MT ICC 3000 SI-N)
By factory default N and PE are connected.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10

Operation

Mains operation: If mains is available, voltage
and frequency of the mains input signal are ana-
lyzed continuously. As long as voltage and fre-
quency are within the required tolerances, the
device synchronizes to the mains input signal.
Connected 230 V consumers are supplied from
the 230 V input source and the 12 V vehicle battery
is charged. As soon as the voltage or frequency
exceeds the required tolerances (e.g. no mains
voltage is available), the charging process is
stopped and the device switches off.
Inverter operation: If no mains is available, the
connected consumers can be supplied by the
inverter in automatic or continuous mode (see
chapter "Setting the automatic mode" on page 26
and chapter "Setting the continuous mode" on
page 27).
Switching on
I
NOTE
The device automatically switches on if
mains is available.
➤If no mains is available, press the P button on
the remote control to switch the device on.
✔ The device is set to automatic mode in inverter
operation.
Setting
Neutral conductor (N) and
protective conductor (PE)
connected
Neutral conductor (N) and
protective conductor (PE)
disconnected
