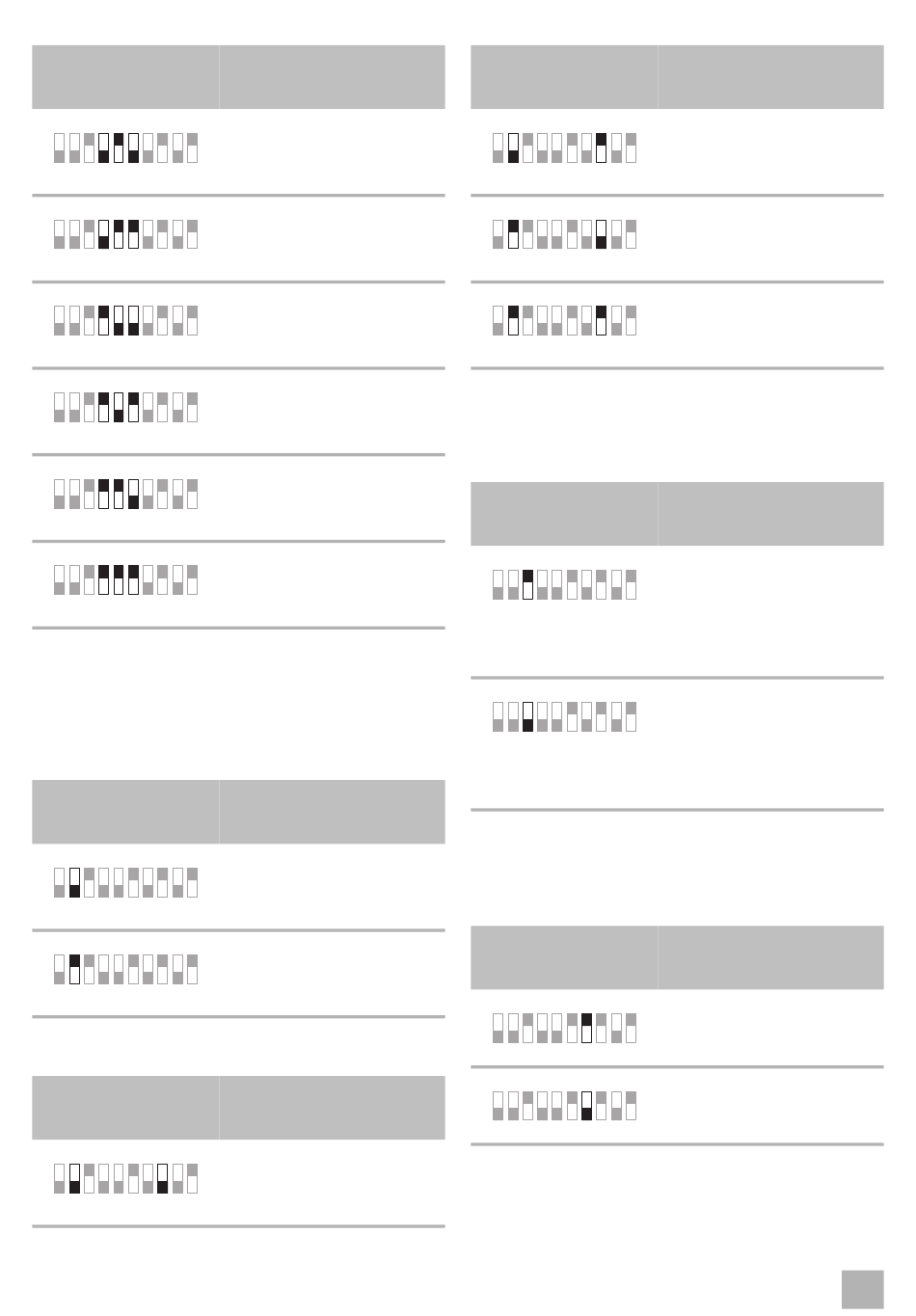

Dometic Buttner POWER & CONTROL MT ICC Montage- Und Bedienungsanleitung Seite 24

DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Reducing the charging current
By factory default the charging current is set to
100 %.
MT ICC 1600 SI-N (60 A)
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
MT ICC 3000 SI-N (120 A)
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
24
Desired charging
program
AGM batteries (14.4 V)
• U1: 14.4 V
• U2: 13.2 V
AGM batteries (14.7 V)
• U1: 14.7 V
• U2: 13.2 V
LiFePO4 batteries (13.9 V)
• U1: 13.9 V
• U2: 13.5 V
LiFePO4 batteries (14.2 V)
• U1: 14.2 V
• U2: 13.4 V
LiFePO4 batteries (14.4 V)
• U1: 14.4 V
• U2: 13.8 V
LiFePO4 batteries (14.6 V)
• U1: 14.6 V
• U2: 13.5 V
Setting
100 % (60 A):
LiFePO4 batteries > 100 Ah,
Lead-acid batteries > 200 Ah
50 % (30 A):
LiFePO4 batteries < 100 Ah,
Lead-acid batteries > 100 Ah
Setting
100 % (120 A):
LiFePO4 batteries > 400 Ah,
Lead-acid batteries > 420 Ah
4445103626
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Setting low voltage protection
By factory default the low voltage protection is acti-
vated.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Setting AC input current boost
By factory default the AC input current boost is acti-
vated.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Setting
75 % (90 A):
LiFePO4 batteries > 200 Ah,
Lead-acid batteries > 320 Ah
50 % (60 A):
LiFePO4 batteries > 100 Ah,
Lead-acid batteries > 200 Ah
25 % (30 A):
LiFePO4 batteries < 100 Ah,
Lead-acid batteries > 100 Ah
Setting
Low voltage protection
activated:
• Battery disconnection:
<10.8 V
• Automatic restart: >12 V
Low voltage protection
deactivated:
• Battery disconnection:
<8.0 V
• Automatic restart: >8.5 V
Setting
AC input current boost
activated
AC input current boost
deactivated
EN
