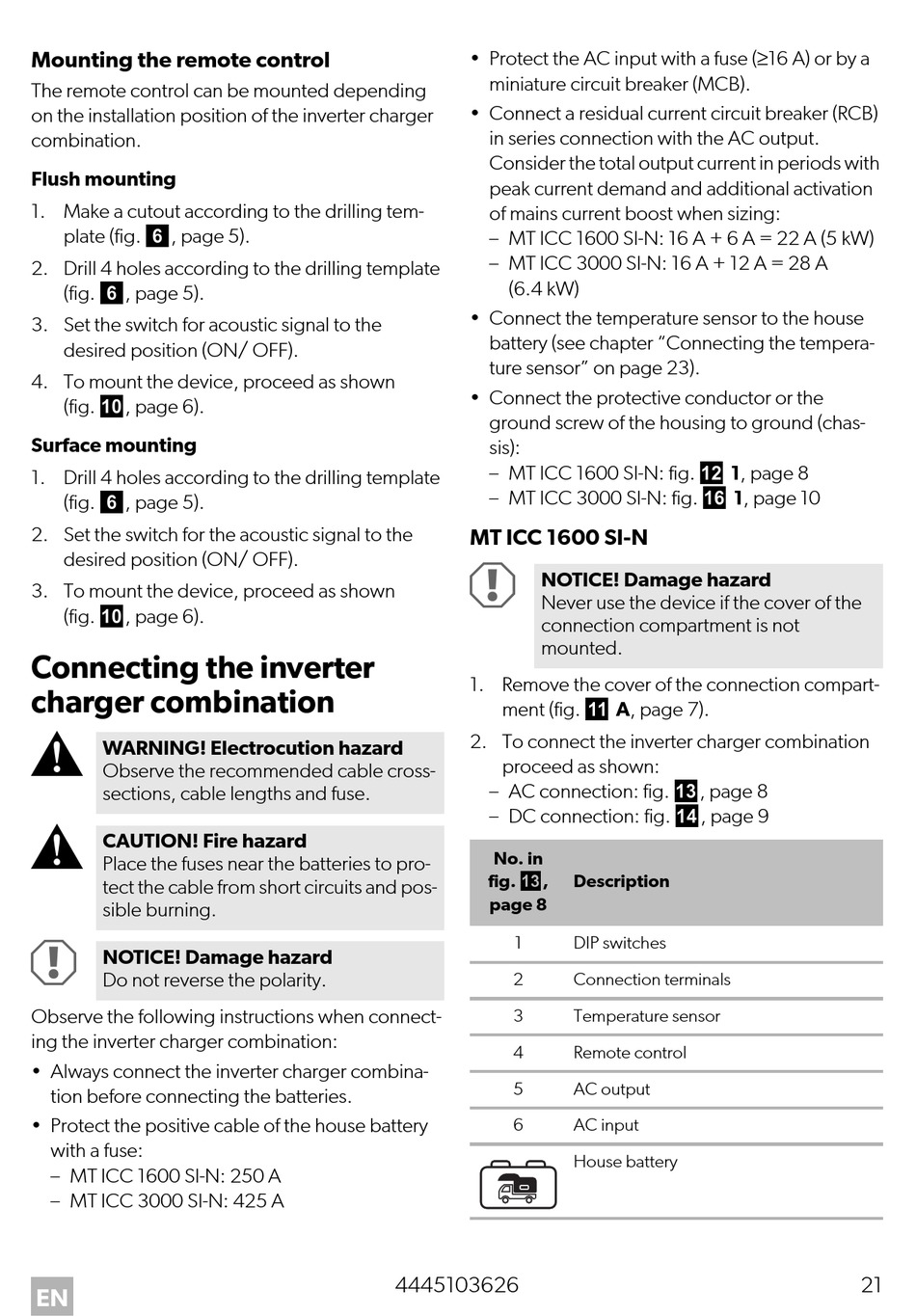

Mounting the remote control
The remote control can be mounted depending
on the installation position of the inverter charger
combination.
Flush mounting
1. Make a cutout according to the drilling tem-
plate (fig. 6, page 5).
2. Drill 4 holes according to the drilling template
(fig. 6, page 5).
3. Set the switch for acoustic signal to the
desired position (ON/ OFF).
4. To mount the device, proceed as shown
(fig. 0, page 6).
Surface mounting
1. Drill 4 holes according to the drilling template
(fig. 6, page 5).
2. Set the switch for the acoustic signal to the
desired position (ON/ OFF).
3. To mount the device, proceed as shown
(fig. 0, page 6).
Connecting the inverter
charger combination
!
WARNING! Electrocution hazard
Observe the recommended cable cross-
sections, cable lengths and fuse.
!
CAUTION! Fire hazard
Place the fuses near the batteries to pro-
tect the cable from short circuits and pos-
sible burning.
A
NOTICE! Damage hazard
Do not reverse the polarity.
Observe the following instructions when connect-
ing the inverter charger combination:
• Always connect the inverter charger combina-
tion before connecting the batteries.
• Protect the positive cable of the house battery
with a fuse:
– MT ICC 1600 SI-N: 250 A
– MT ICC 3000 SI-N: 425 A
EN
• Protect the AC input with a fuse (≥16 A) or by a
miniature circuit breaker (MCB).
• Connect a residual current circuit breaker (RCB)
in series connection with the AC output.
Consider the total output current in periods with
peak current demand and additional activation
of mains current boost when sizing:
– MT ICC 1600 SI-N: 16 A + 6 A = 22 A (5 kW)
– MT ICC 3000 SI-N: 16 A + 12 A = 28 A
(6.4 kW)
• Connect the temperature sensor to the house
battery (see chapter "Connecting the tempera-
ture sensor" on page 23).
• Connect the protective conductor or the
ground screw of the housing to ground (chas-
sis):
– MT ICC 1600 SI-N: fig. b 1, page 8
– MT ICC 3000 SI-N: fig. f 1, page 10
MT ICC 1600 SI-N
A
NOTICE! Damage hazard
Never use the device if the cover of the
connection compartment is not
mounted.
1. Remove the cover of the connection compart-
ment (fig. a A, page 7).
2. To connect the inverter charger combination
proceed as shown:
– AC connection: fig. c, page 8
– DC connection: fig. d, page 9
No. in
fig. c,
page 8
1
2
3
4
5
6
4445103626
Description
DIP switches
Connection terminals
Temperature sensor
Remote control
AC output
AC input
House battery
