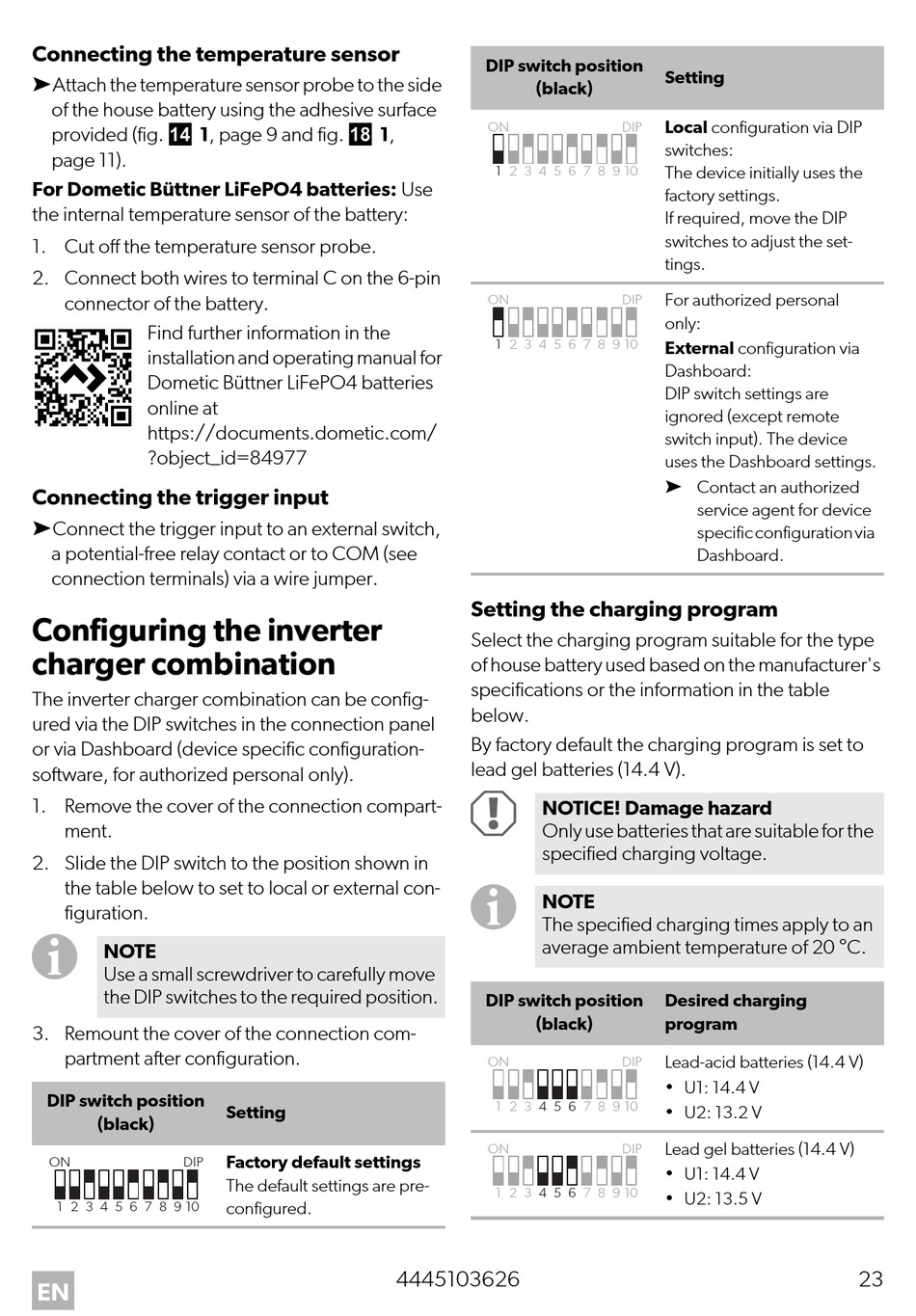

Connecting the temperature sensor
➤Attach the temperature sensor probe to the side
of the house battery using the adhesive surface
provided (fig. d 1, page 9 and fig. h 1,
page 11).
For Dometic Büttner LiFePO4 batteries: Use
the internal temperature sensor of the battery:
1. Cut off the temperature sensor probe.
2. Connect both wires to terminal C on the 6-pin
connector of the battery.
Find further information in the
installation and operating manual for
Dometic Büttner LiFePO4 batteries
online at
https://documents.dometic.com/
?object_id=84977
Connecting the trigger input
➤Connect the trigger input to an external switch,
a potential-free relay contact or to COM (see
connection terminals) via a wire jumper.
Configuring the inverter
charger combination
The inverter charger combination can be config-
ured via the DIP switches in the connection panel
or via Dashboard (device specific configuration-
software, for authorized personal only).
1. Remove the cover of the connection compart-
ment.
2. Slide the DIP switch to the position shown in
the table below to set to local or external con-
figuration.
I
NOTE
Use a small screwdriver to carefully move
the DIP switches to the required position.
3. Remount the cover of the connection com-
partment after configuration.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
EN
Setting
Factory default settings
The default settings are pre-
configured.
4445103626
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Setting the charging program
Select the charging program suitable for the type
of house battery used based on the manufacturer's
specifications or the information in the table
below.
By factory default the charging program is set to
lead gel batteries (14.4 V).
A
NOTICE! Damage hazard
Only use batteries that are suitable for the
specified charging voltage.
I
NOTE
The specified charging times apply to an
average ambient temperature of 20 °C.
DIP switch position
(black)
ON DIP
1 2 3 4 5 6 7 8 9 10
ON DIP
1 2 3 4 5 6 7 8 9 10
Setting
Local configuration via DIP
switches:
The device initially uses the
factory settings.
If required, move the DIP
switches to adjust the set-
tings.
For authorized personal
only:
External configuration via
Dashboard:
DIP switch settings are
ignored (except remote
switch input). The device
uses the Dashboard settings.
➤ Contact an authorized
service agent for device
specific configuration via
Dashboard.
Desired charging
program
Lead-acid batteries (14.4 V)
• U1: 14.4 V
• U2: 13.2 V
Lead gel batteries (14.4 V)
• U1: 14.4 V
• U2: 13.5 V
