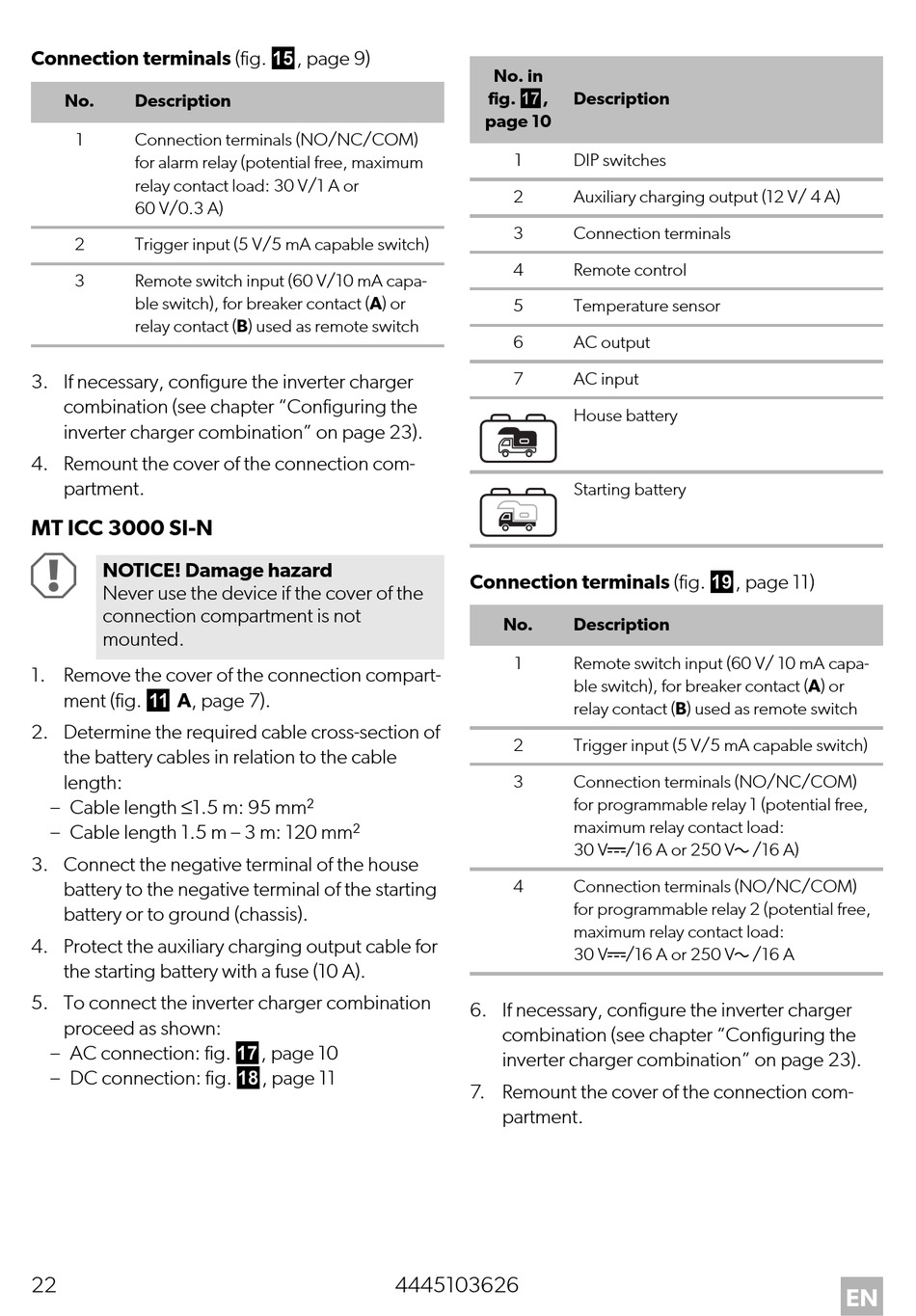

Connection terminals (fig. e, page 9)
No.
Description
1
Connection terminals (NO/NC/COM)
for alarm relay (potential free, maximum
relay contact load: 30 V/1 A or
60 V/0.3 A)
2
Trigger input (5 V/5 mA capable switch)
3
Remote switch input (60 V/10 mA capa-
ble switch), for breaker contact (A) or
relay contact (B) used as remote switch
3. If necessary, configure the inverter charger
combination (see chapter "Configuring the
inverter charger combination" on page 23).
4. Remount the cover of the connection com-
partment.
MT ICC 3000 SI-N
A
NOTICE! Damage hazard
Never use the device if the cover of the
connection compartment is not
mounted.
1. Remove the cover of the connection compart-
ment (fig. a A, page 7).
2. Determine the required cable cross-section of
the battery cables in relation to the cable
length:
– Cable length ≤1.5 m: 95 mm²
– Cable length 1.5 m – 3 m: 120 mm²
3. Connect the negative terminal of the house
battery to the negative terminal of the starting
battery or to ground (chassis).
4. Protect the auxiliary charging output cable for
the starting battery with a fuse (10 A).
5. To connect the inverter charger combination
proceed as shown:
– AC connection: fig. g, page 10
– DC connection: fig. h, page 11
22
No. in
fig. g,
page 10
1
2
3
4
5
6
7
Connection terminals (fig. i, page 11)
No.
1
2
3
4
6. If necessary, configure the inverter charger
combination (see chapter "Configuring the
inverter charger combination" on page 23).
7. Remount the cover of the connection com-
partment.
4445103626
Description
DIP switches
Auxiliary charging output (12 V/ 4 A)
Connection terminals
Remote control
Temperature sensor
AC output
AC input
House battery
Starting battery
Description
Remote switch input (60 V/ 10 mA capa-
ble switch), for breaker contact (A) or
relay contact (B) used as remote switch
Trigger input (5 V/5 mA capable switch)
Connection terminals (NO/NC/COM)
for programmable relay 1 (potential free,
maximum relay contact load:
30 Vg/16 A or 250 Vw/16 A)
Connection terminals (NO/NC/COM)
for programmable relay 2 (potential free,
maximum relay contact load:
30 Vg/16 A or 250 Vw/16 A
EN
