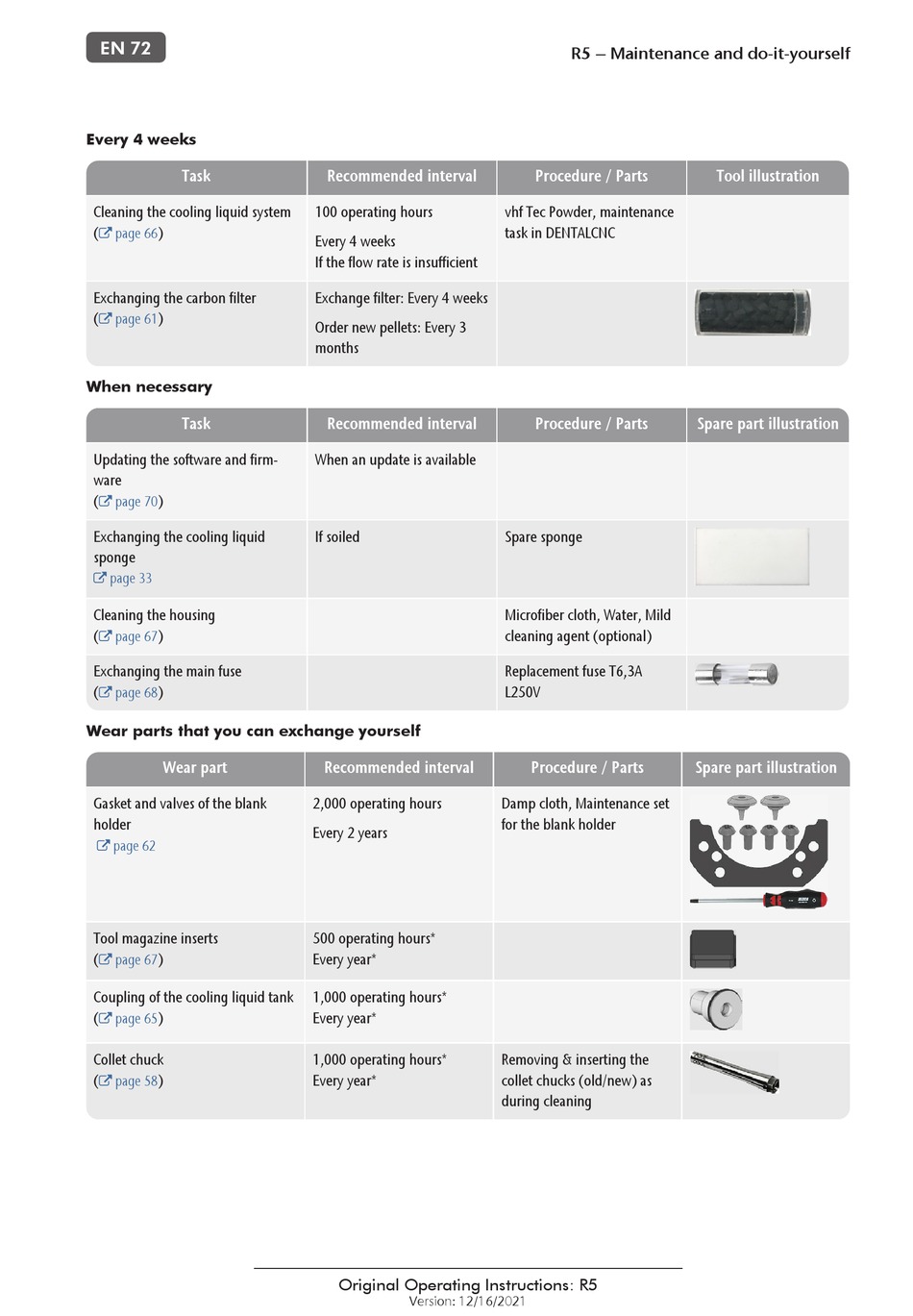

VHF R5 Originalbetriebsanleitung Seite 72

EN 72
Every 4 weeks
Task
Cleaning the cooling liquid system
( )
page 66

Exchanging the carbon filter
( )
page 61

When necessary
Task
Updating the software and firm-
ware
( )
page 70

Exchanging the cooling liquid
sponge
page 33

Cleaning the housing
( )
page 67

Exchanging the main fuse
( )
page 68

Wear parts that you can exchange yourself
Wear part
Gasket and valves of the blank
holder
page 62

Tool magazine inserts
( )
page 67

Coupling of the cooling liquid tank
( )
page 65

Collet chuck
( )
page 58

Recommended interval
100 operating hours
Every 4 weeks
If the flow rate is insufficient
Exchange filter: Every 4 weeks
Order new pellets: Every 3
months
Recommended interval
When an update is available
If soiled
Recommended interval
2,000 operating hours
Every 2 years
500 operating hours
*
Every year
*
1,000 operating hours
*
Every year
*
1,000 operating hours
*
Every year
*
Original Operating Instructions: R5
Version: 12/16/2021
R5 – Maintenance and do-it-yourself
Procedure / Parts
vhf Tec Powder, maintenance
task in DENTALCNC
Procedure / Parts
Spare sponge
Microfiber cloth, Water, Mild
cleaning agent (optional)
Replacement fuse T6,3A
L250V
Procedure / Parts
Damp cloth, Maintenance set
for the blank holder
Removing & inserting the
collet chucks (old/new) as
during cleaning
Tool illustration
Spare part illustration
Spare part illustration
