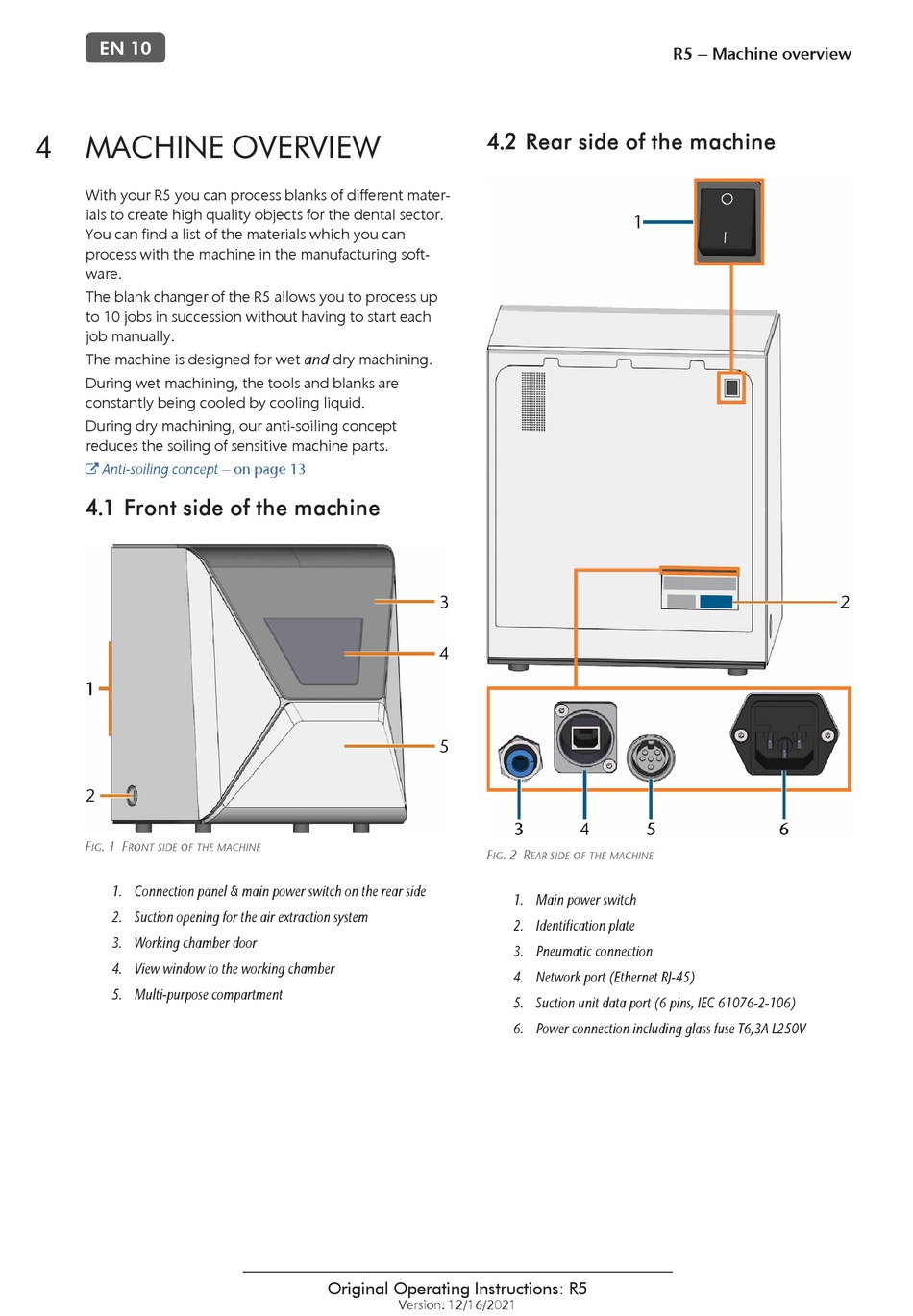

MACHINE OVERVIEW

With your R5 you can process blanks of different mater-
ials to create high quality objects for the dental sector.
You can find a list of the materials which you can
process with the machine in the manufacturing soft-
ware.
The blank changer of the R5 allows you to process up
to 10 jobs in succession without having to start each
job manually.
The machine is designed for wet and dry machining.
During wet machining, the tools and blanks are
constantly being cooled by cooling liquid.
During dry machining, our anti-soiling concept
reduces the soiling of sensitive machine parts.
Anti-soiling concept – on page 13


4.1 Front side of the machine

F . 1 F
IG RONT SIDE OF THE MACHINE
1. Connection panel & main power switch on the rear side
2. Suction opening for the air extraction system
3. Working chamber door
4. View window to the working chamber
5. Multi-purpose compartment

4.2 Rear side of the machine

F
IG
Original Operating Instructions: R5
Version: 12/16/2021
R5 – Machine overview
. 2 R
EAR SIDE OF THE MACHINE
1. Main power switch
2. Identification plate
3. Pneumatic connection
4. Network port (Ethernet RJ-45)
5. Suction unit data port (6 pins, IEC 61076-2-106)
6. Power connection including glass fuse T6,3A L250V
