4.5 Working chamber

You can mount blanks and insert tools into the working
chamber. This is where the blanks are processed.

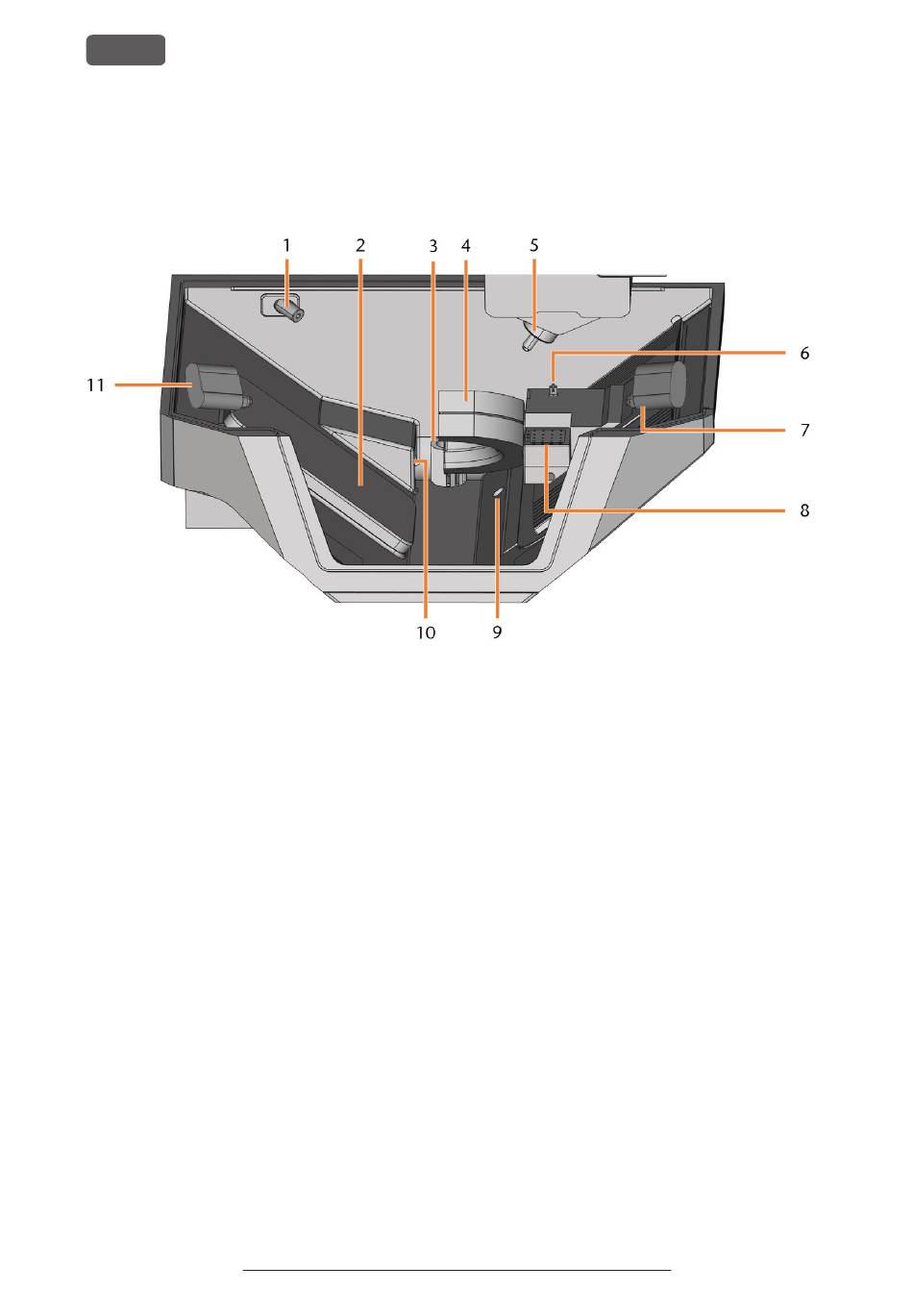

F . 5 W
IG ORKING CHAMBER
1. Webcam
2. Blank changer flap
3. Outlet for the cooling liquid
4. Blank holder; Rotational axis A
5. Spindle
6. Measuring key
7. Right ion jet
8. Tool magazine
9. Emergency overflow
10. Air extraction opening
11. Left ion jet
