R5 – Maintenance and do-it-yourself

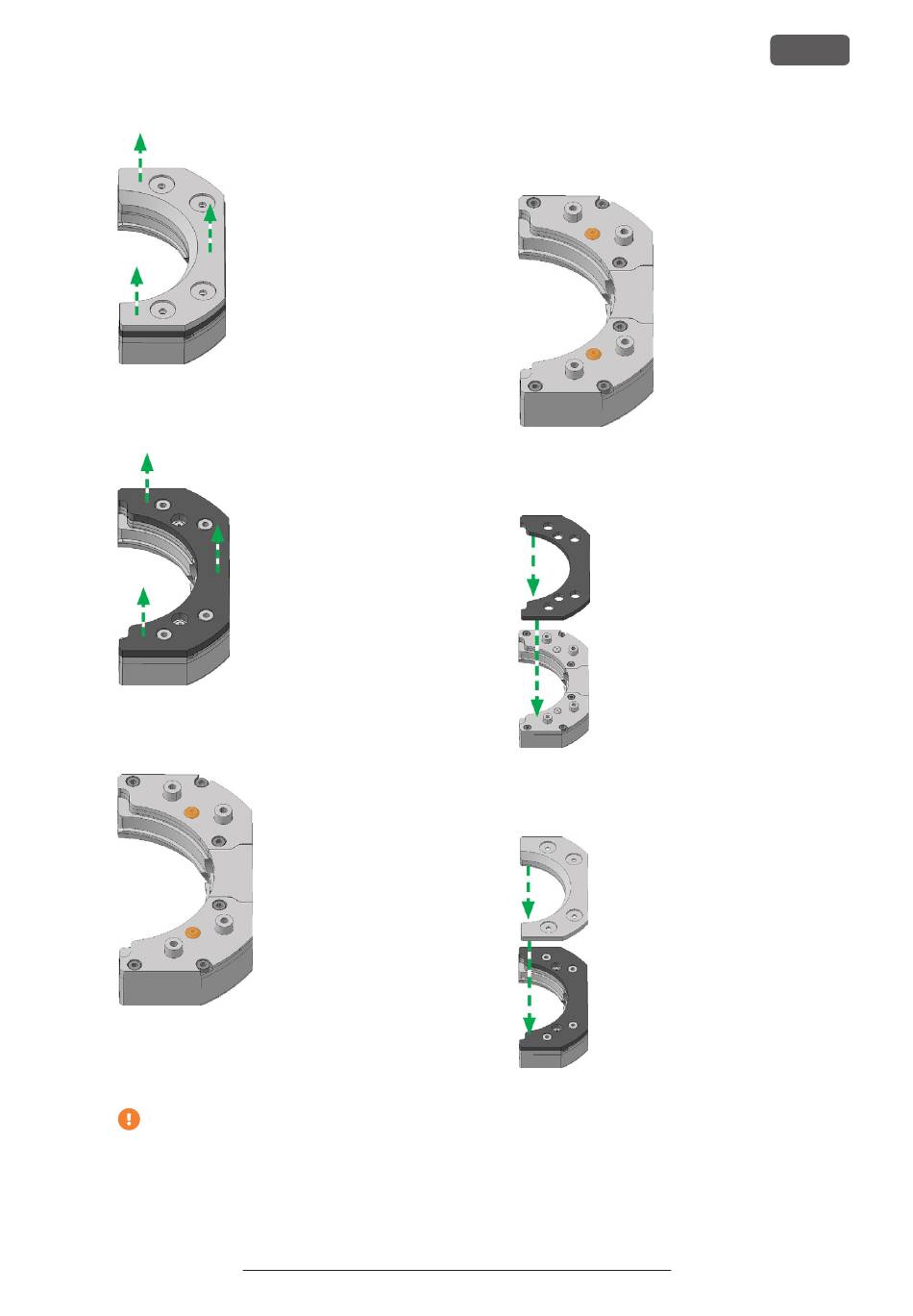

F . 100 L
IG IFTING OFF THE WORKHOLDING STRAP
6. Lift off the gasket.
F . 101 L
IG IFTING OFF THE GASKET
7. Remove the 2 valves (marked orange) by hand.
F . 102 V
IG ALVES
8. Clean the blank holder thoroughly with a damp
cloth and a brush.
The lower part of the blank holder is not to
be wet, otherwise sensitive parts of the
clamping mechanism may rust. Make sure
only to use a damp cloth.
9. Press the 2 new valves (marked orange) by hand
10. Install the new gasket.
11. Install the workholding strap.
Original Operating Instructions: R5
Version: 12/16/2021
into the respective drilling within the blank holder.
F . 103 V
IG ALVES
F . 104 I
IG NSTALLING THE NEW GASKET
F . 105 I
IG NSTALLING THE WORKHOLDING STRAP
EN 63
