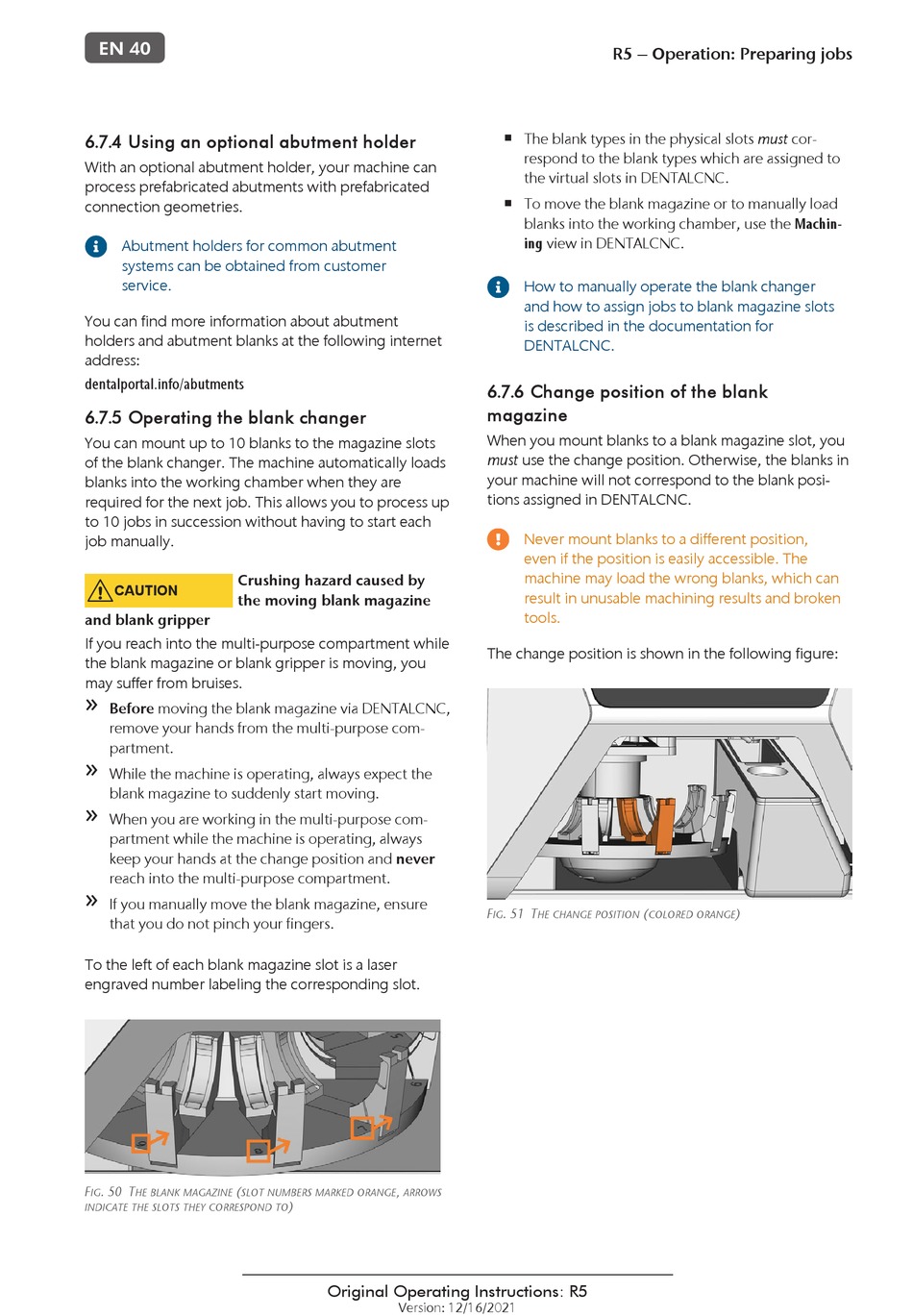

6.7.4 Using an optional abutment holder

With an optional abutment holder, your machine can
process prefabricated abutments with prefabricated
connection geometries.
Abutment holders for common abutment
systems can be obtained from customer
service.
You can find more information about abutment
holders and abutment blanks at the following internet
address:
dentalportal.info/abutments

6.7.5 Operating the blank changer

You can mount up to 10 blanks to the magazine slots
of the blank changer. The machine automatically loads
blanks into the working chamber when they are
required for the next job. This allows you to process up
to 10 jobs in succession without having to start each
job manually.
Crushing hazard caused by
CAUTION
the moving blank magazine
and blank gripper
If you reach into the multi-purpose compartment while
the blank magazine or blank gripper is moving, you
may suffer from bruises.
Before moving the blank magazine via DENTALCNC,
remove your hands from the multi-purpose com-
partment.
While the machine is operating, always expect the
blank magazine to suddenly start moving.
When you are working in the multi-purpose com-
partment while the machine is operating, always
keep your hands at the change position and never
reach into the multi-purpose compartment.
If you manually move the blank magazine, ensure
that you do not pinch your fingers.
To the left of each blank magazine slot is a laser
engraved number labeling the corresponding slot.
F . 50 T (
IG HE BLANK MAGAZINE SLOT NUMBERS MARKED ORANGE
INDICATE THE SLOTS THEY CORRESPOND TO
,
ARROWS
)
Original Operating Instructions: R5
Version: 12/16/2021
R5 – Operation: Preparing jobs
The blank types in the physical slots must cor-
n
respond to the blank types which are assigned to
the virtual slots in DENTALCNC.
To move the blank magazine or to manually load
n
blanks into the working chamber, use the Machin-
ing view in DENTALCNC.
How to manually operate the blank changer
and how to assign jobs to blank magazine slots
is described in the documentation for
DENTALCNC.
6.7.6 Change position of the blank
magazine
When you mount blanks to a blank magazine slot, you
must use the change position. Otherwise, the blanks in
your machine will not correspond to the blank posi-
tions assigned in DENTALCNC.
Never mount blanks to a different position,
even if the position is easily accessible. The
machine may load the wrong blanks, which can
result in unusable machining results and broken
tools.
The change position is shown in the following figure:
F . 51 T (
IG HE CHANGE POSITION COLORED ORANGE
)
