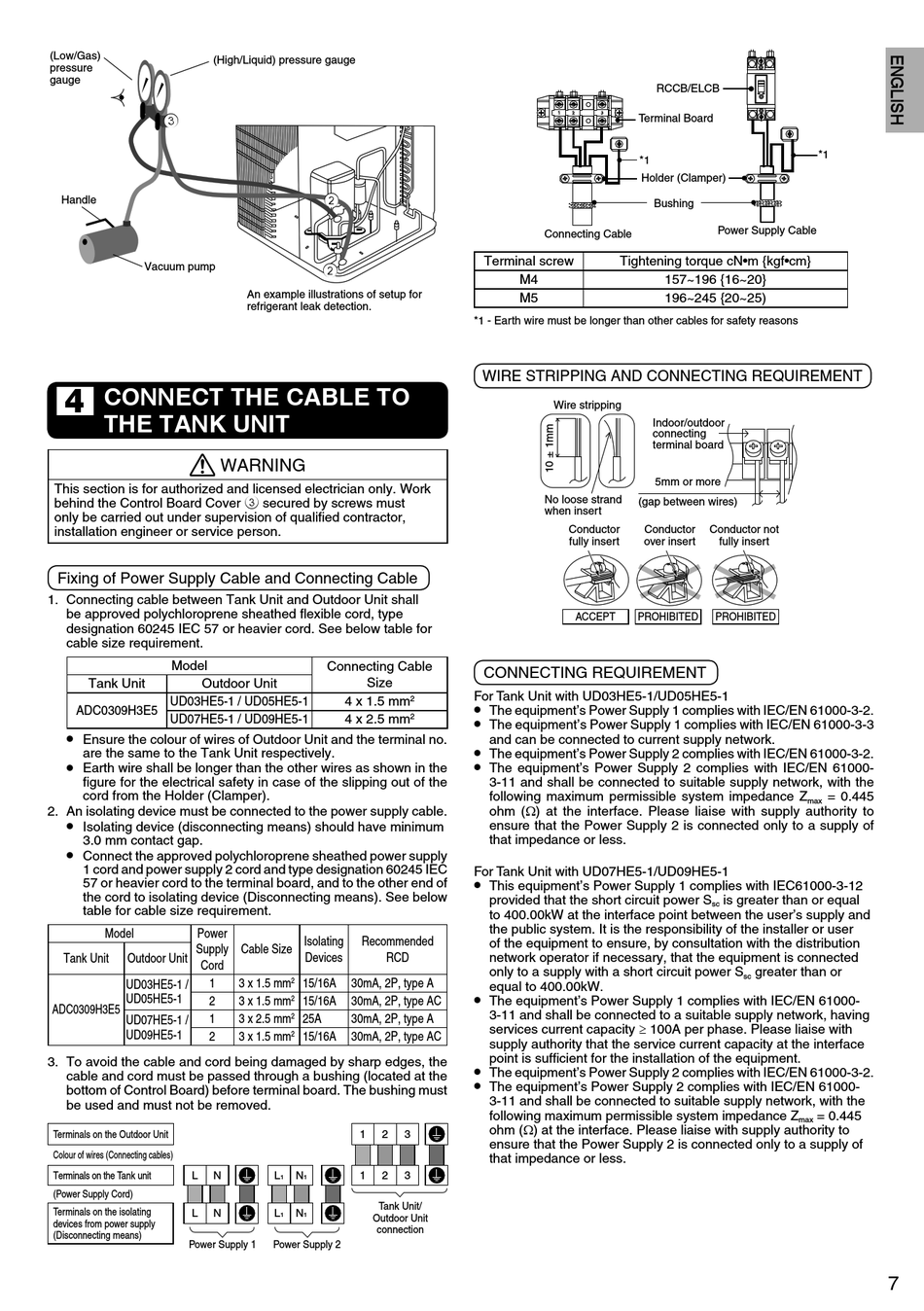

Panasonic ADC0309H3E5 Installationshandbuch Seite 7

(Low/Gas)
(High/Liquid) pressure gauge
pressure
gauge
3
Handle
Vacuum pump
CONNECT THE CABLE TO
4
THE TANK UNIT
WARNING
This section is for authorized and licensed electrician only. Work
behind the Control Board Cover 3 secured by screws must
only be carried out under supervision of qualifi ed contractor,
installation engineer or service person.
Fixing of Power Supply Cable and Connecting Cable
1. Connecting cable between Tank Unit and Outdoor Unit shall
be approved polychloroprene sheathed fl exible cord, type
designation 60245 IEC 57 or heavier cord. See below table for
cable size requirement.
Model
Tank Unit Outdoor Unit
UD03HE5-1 / UD05HE5-1
ADC0309H3E5
UD07HE5-1 / UD09HE5-1
•
Ensure the colour of wires of Outdoor Unit and the terminal no.
are the same to the Tank Unit respectively.
•
Earth wire shall be longer than the other wires as shown in the
fi gure for the electrical safety in case of the slipping out of the
cord from the Holder (Clamper).
2. An isolating device must be connected to the power supply cable.
•
Isolating device (disconnecting means) should have minimum
3.0 mm contact gap.
•
Connect the approved polychloroprene sheathed power supply
1 cord and power supply 2 cord and type designation 60245 IEC
57 or heavier cord to the terminal board, and to the other end of
the cord to isolating device (Disconnecting means). See below
table for cable size requirement.
Model Power
Supply
Tank Unit Outdoor Unit
Cord
1
UD03HE5-1 /
UD05HE5-1
2
ADC0309H3E5
1
UD07HE5-1 /
UD09HE5-1
2
3. To avoid the cable and cord being damaged by sharp edges, the
cable and cord must be passed through a bushing (located at the
bottom of Control Board) before terminal board. The bushing must
be used and must not be removed.
Terminals on the Outdoor Unit
Colour of wires (Connecting cables)
Terminals on the Tank unit L N
(Power Supply Cord)
Terminals on the isolating
L N
devices from power supply
(Disconnecting means)
Power Supply 1
2
2
An example illustrations of setup for
refrigerant leak detection.
Connecting Cable
Size
2
4 x 1.5 mm
2
4 x 2.5 mm
Isolating Recommended
Cable Size
Devices RCD
3 x 1.5 mm 2 15/16A 30mA, 2P, type A
2
3 x 1.5 mm 15/16A 30mA, 2P, type AC
2
3 x 2.5 mm 25A 30mA, 2P, type A
3 x 1.5 mm 2 15/16A 30mA, 2P, type AC
1 2 3
L N 1 2 3
1 1
Tank Unit/
L N
1 1
Outdoor Unit
connection
Power Supply 2
Terminal Board
*1
Holder (Clamper)
Connecting Cable
Terminal screw Tightening torque cN•m {kgf•cm}
M4
M5
*1 - Earth wire must be longer than other cables for safety reasons
WIRE STRIPPING AND CONNECTING REQUIREMENT
Wire stripping
No loose strand
(gap between wires)
when insert
Conductor Conductor
fully insert over insert
ACCEPT PROHIBITED
CONNECTING REQUIREMENT
For Tank Unit with UD03HE5-1/UD05HE5-1
•
The equipment's Power Supply 1 complies with IEC/EN 61000-3-2.
•
The equipment's Power Supply 1 complies with IEC/EN 61000-3-3
and can be connected to current supply network.
•
The equipment's Power Supply 2 complies with IEC/EN 61000-3-2.
•
The equipment's Power Supply 2 complies with IEC/EN 61000-
3-11 and shall be connected to suitable supply network, with the
following maximum permissible system impedance Z
ohm () at the interface. Please liaise with supply authority to
ensure that the Power Supply 2 is connected only to a supply of
that impedance or less.
For Tank Unit with UD07HE5-1/UD09HE5-1
•
This equipment's Power Supply 1 complies with IEC61000-3-12
provided that the short circuit power S
to 400.00kW at the interface point between the user's supply and
the public system. It is the responsibility of the installer or user
of the equipment to ensure, by consultation with the distribution
network operator if necessary, that the equipment is connected
only to a supply with a short circuit power S
equal to 400.00kW.
•
The equipment's Power Supply 1 complies with IEC/EN 61000-
3-11 and shall be connected to a suitable supply network, having
services current capacity  100A per phase. Please liaise with
supply authority that the service current capacity at the interface
point is suffi cient for the installation of the equipment.
•
The equipment's Power Supply 2 complies with IEC/EN 61000-3-2.
•
The equipment's Power Supply 2 complies with IEC/EN 61000-
3-11 and shall be connected to suitable supply network, with the
following maximum permissible system impedance Z
ohm () at the interface. Please liaise with supply authority to
ensure that the Power Supply 2 is connected only to a supply of
that impedance or less.
RCCB/ELCB
*1
Bushing
Power Supply Cable
157~196 {16~20}
196~245 {20~25)
Indoor/outdoor
connecting
terminal board
5mm or more
Conductor not
fully insert
PROHIBITED
max
is greater than or equal
sc
greater than or
sc
= 0.445
max
= 0.445
7
