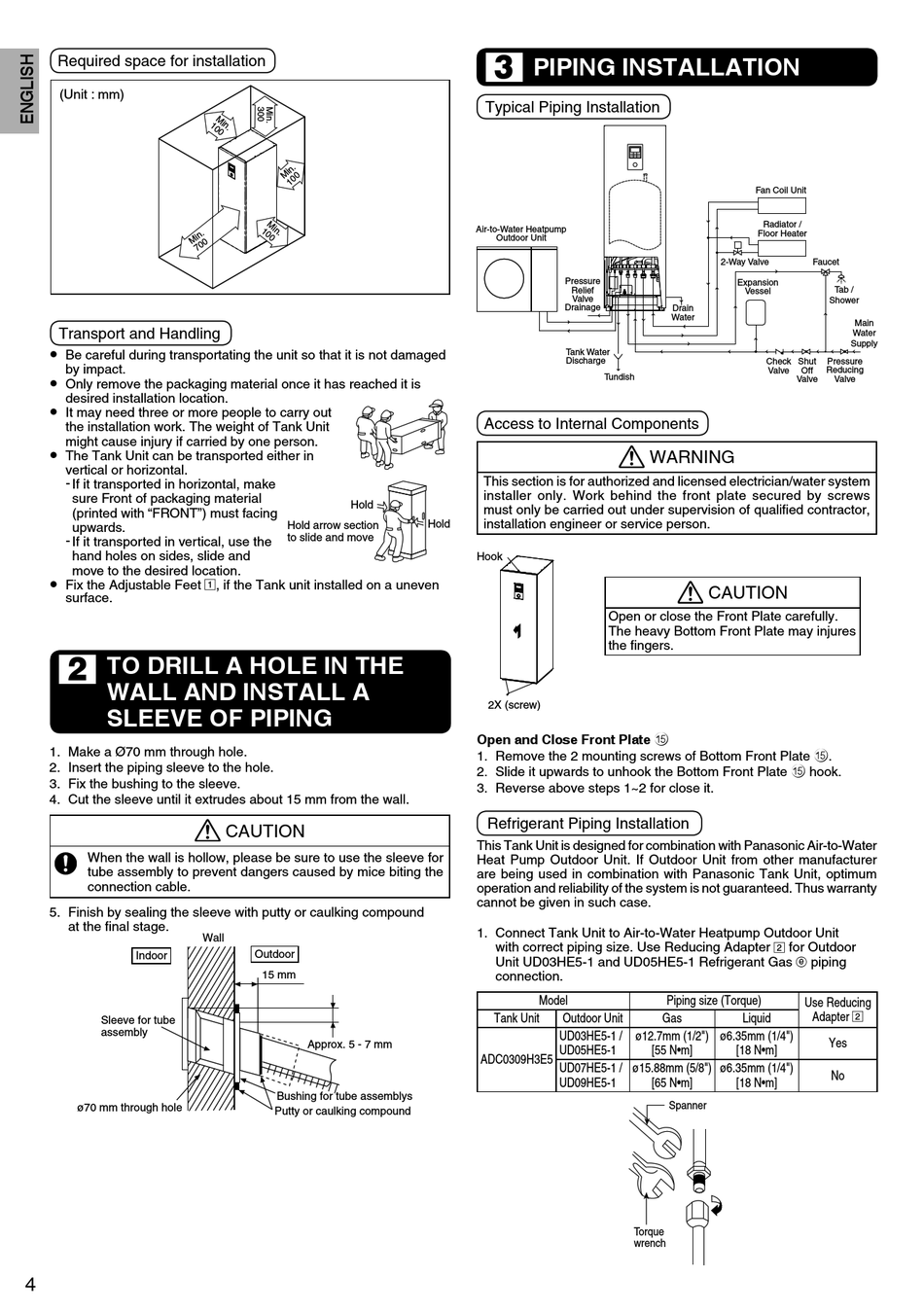

Panasonic ADC0309H3E5 Installationshandbuch Seite 4

Required space for installation
(Unit : mm)
Transport and Handling
•
Be careful during transportating the unit so that it is not damaged
by impact.
•
Only remove the packaging material once it has reached it is
desired installation location.
•
It may need three or more people to carry out
the installation work. The weight of Tank Unit
might cause injury if carried by one person.
•
The Tank Unit can be transported either in
vertical or horizontal.
- If it transported in horizontal, make
sure Front of packaging material
(printed with "FRONT") must facing
upwards.
- If it transported in vertical, use the
hand holes on sides, slide and
move to the desired location.
•
Fix the Adjustable Feet 1 , if the Tank unit installed on a uneven
surface.
TO DRILL A HOLE IN THE
2
WALL AND INSTALL A
SLEEVE OF PIPING
1. Make a Ø70 mm through hole.
2. Insert the piping sleeve to the hole.
3. Fix the bushing to the sleeve.
4. Cut the sleeve until it extrudes about 15 mm from the wall.
When the wall is hollow, please be sure to use the sleeve for
tube assembly to prevent dangers caused by mice biting the
connection cable.
5. Finish by sealing the sleeve with putty or caulking compound
at the fi nal stage.
Indoor
Sleeve for tube
assembly
ø70 mm through hole
4
Hold
Hold arrow section
to slide and move
CAUTION
Wall
Outdoor
15 mm
Approx. 5 - 7 mm
Bushing for tube assemblys
Putty or caulking compound
PIPING INSTALLATION
3
Typical Piping Installation
Air-to-Water Heatpump
Outdoor Unit
Pressure
Relief
Valve
Drainage
Tank Water
Discharge
Access to Internal Components
This section is for authorized and licensed electrician/water system
installer only. Work behind the front plate secured by screws
must only be carried out under supervision of qualifi ed contractor,
installation engineer or service person.
Hold
Hook
2X (screw)
Open and Close Front Plate e
1. Remove the 2 mounting screws of Bottom Front Plate e.
2. Slide it upwards to unhook the Bottom Front Plate e hook.
3. Reverse above steps 1~2 for close it.
Refrigerant Piping Installation
This Tank Unit is designed for combination with Panasonic Air-to-Water
Heat Pump Outdoor Unit. If Outdoor Unit from other manufacturer
are being used in combination with Panasonic Tank Unit, optimum
operation and reliability of the system is not guaranteed. Thus warranty
cannot be given in such case.
1. Connect Tank Unit to Air-to-Water Heatpump Outdoor Unit
with correct piping size. Use Reducing Adapter 2 for Outdoor
Unit UD03HE5-1 and UD05HE5-1 Refrigerant Gas k piping
connection.
Model
Tank Unit Outdoor Unit
UD03HE5-1 /
UD05HE5-1
ADC0309H3E5
UD07HE5-1 /
UD09HE5-1
Fan Coil Unit
Radiator /
Floor Heater
2-Way Valve
Expansion
Vessel
Drain
Water
Check
Valve
Tundish
WARNING
CAUTION
Open or close the Front Plate carefully.
The heavy Bottom Front Plate may injures
the fi ngers.
Piping size (Torque)
Gas Liquid
ø12.7mm (1/2") ø6.35mm (1/4")
[55 N•m] [18 N•m]
ø15.88mm (5/8") ø6.35mm (1/4")
[65 N•m] [18 N•m]
Spanner
Torque
wrench
Faucet
Tab /
Shower
Main
Water
Supply
Shut Pressure
Off Reducing
Valve Valve
Use Reducing
Adapter 2
Yes
No
