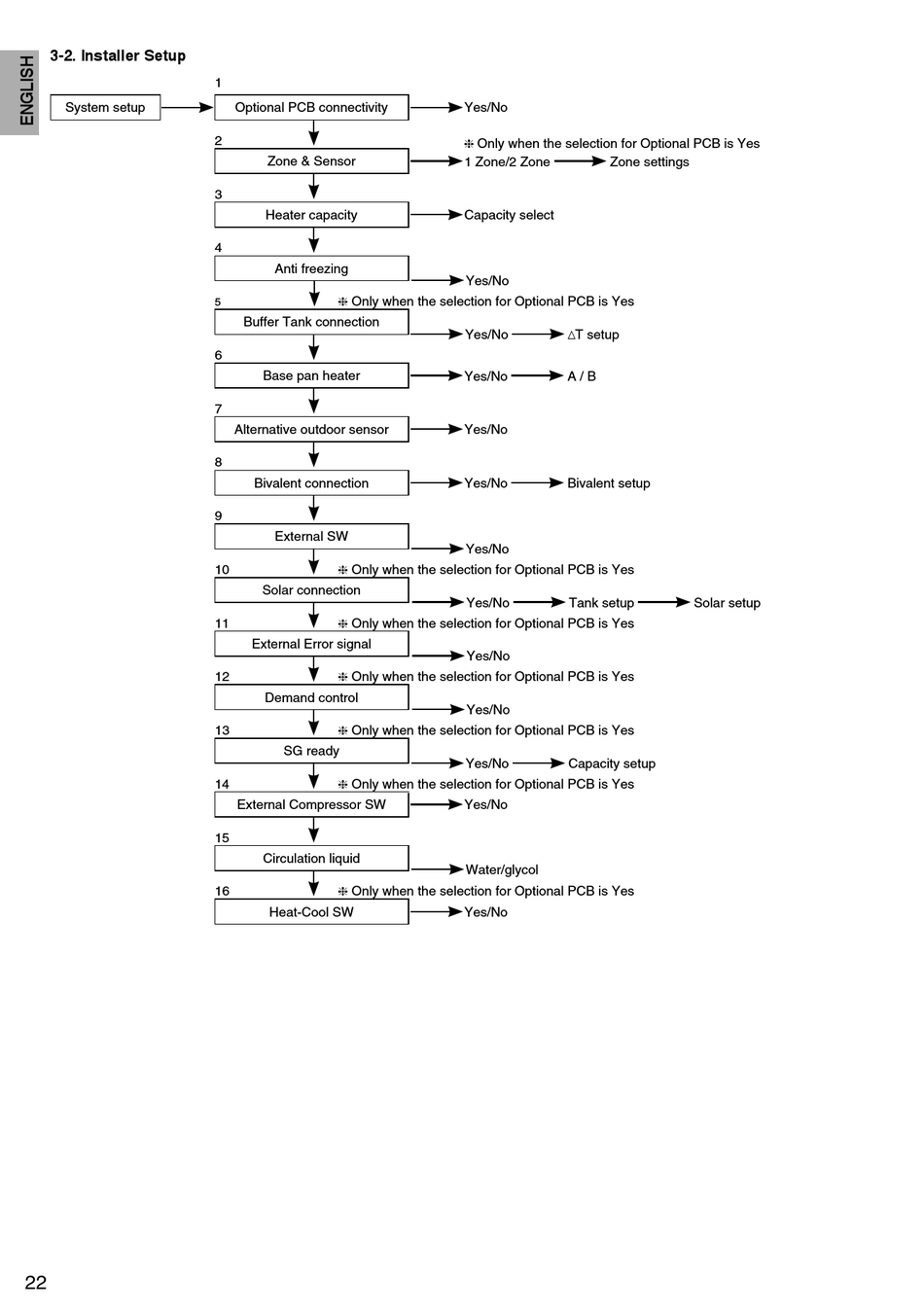

3-2. Installer Setup
System setup
22
1
Optional PCB connectivity
2
Zone & Sensor
3
Heater capacity
4
Anti freezing

Only when the selection for Optional PCB is Yes
5
Buffer Tank connection
6
Base pan heater
7
Alternative outdoor sensor
8
Bivalent connection
9
External SW
10  Only when the selection for Optional PCB is Yes
Solar connection
11  Only when the selection for Optional PCB is Yes
External Error signal

12 Only when the selection for Optional PCB is Yes
Demand control

13 Only when the selection for Optional PCB is Yes
SG ready

14 Only when the selection for Optional PCB is Yes
External Compressor SW
15
Circulation liquid
16  Only when the selection for Optional PCB is Yes
Heat-Cool SW
Yes/No
 Only when the selection for Optional PCB is Yes
1 Zone/2 Zone Zone settings
Capacity select
Yes/No


Yes/No T setup
Yes/No A / B
Yes/No
Yes/No Bivalent setup
Yes/No
Yes/No  Tank setup
Yes/No
Yes/No
Yes/No  Capacity setup
Yes/No
Water/glycol
Yes/No
 Solar setup
