12

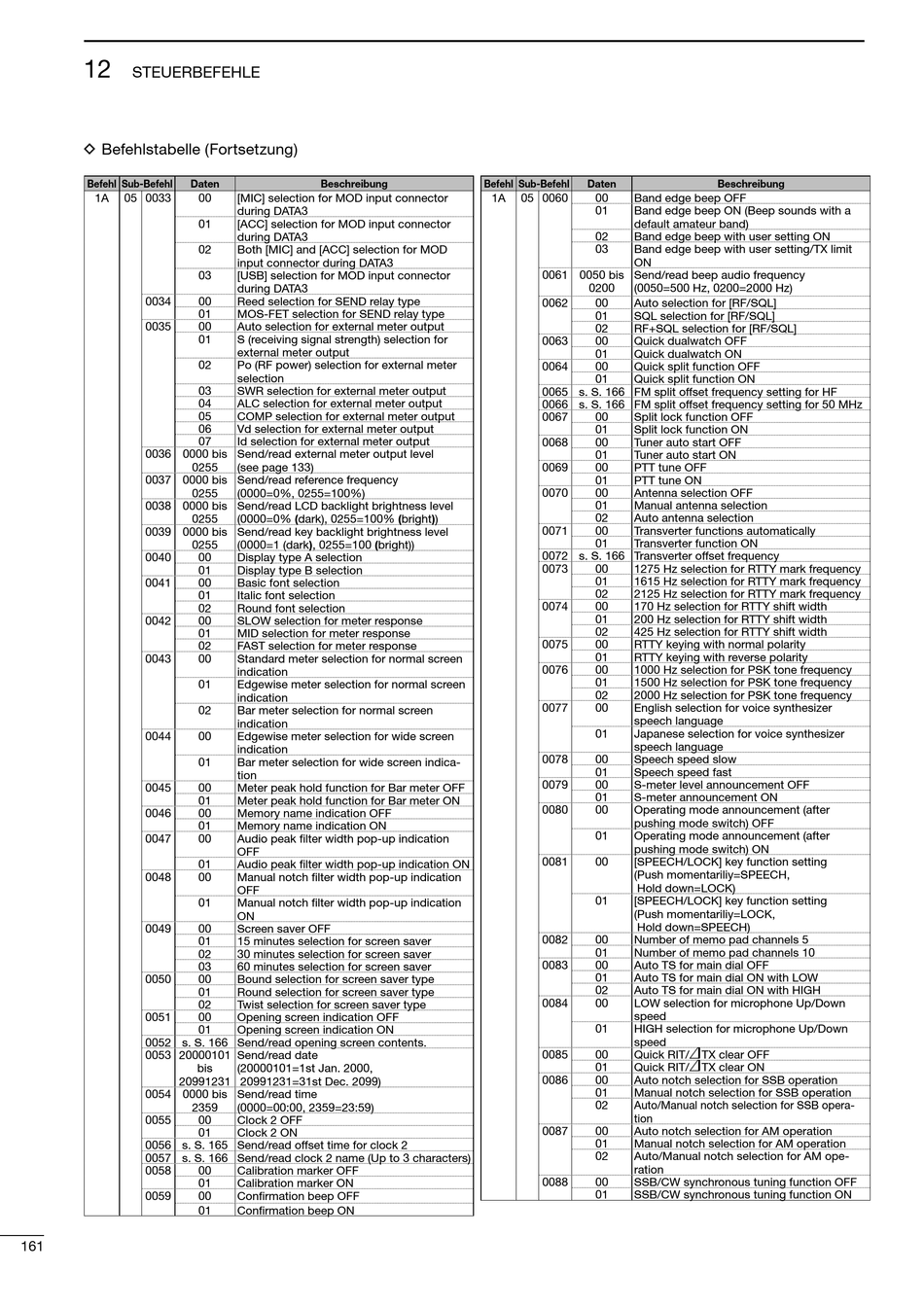

STEUERBEFEHLE
D Befehlstabelle (Fortsetzung)
Befehl Sub-Befehl
Daten
1A
05 0033
0034
0035
0036 0000 bis
0255
0037 0000 bis
0255
0038 0000 bis
0255
0039 0000 bis
0255
0040
0041
0042
0043
0044
0045
0046
0047
0048
0049
0050
0051
0052 s. S. 166 Send/read opening screen contents.
0053 20000101
20991231
0054 0000 bis
2359
0055
0056 s. S. 165 Send/read offset time for clock 2
0057 s. S. 166 Send/read clock 2 name (Up to 3 characters)
0058
0059
161
Beschreibung
00
[MIC] selection for MOD input connector
during DATA3
01
[ACC] selection for MOD input connector
during DATA3
02
Both [MIC] and [ACC] selection for MOD
input connector during DATA3
03
[USB] selection for MOD input connector
during DATA3
00
Reed selection for SEND relay type
01
MOS-FET selection for SEND relay type
00
Auto selection for external meter output
01
S (receiving signal strength) selection for
external meter output
02
Po (RF power) selection for external meter
selection
03
SWR selection for external meter output
04
ALC selection for external meter output
05
COMP selection for external meter output
06
Vd selection for external meter output
07
Id selection for external meter output
Send/read external meter output level
(see page 133)
Send/read reference frequency
(0000=0%, 0255=100%)
Send/read LCD backlight brightness level
(0000=0% (dark), 0255=100% (bright))
Send/read key backlight brightness level
(0000=1 (dark), 0255=100 (bright))
00
Display type A selection
01
Display type B selection
00
Basic font selection
01
Italic font selection
02
Round font selection
00
SLOW selection for meter response
01
MID selection for meter response
02
FAST selection for meter response
00
Standard meter selection for normal screen
indication
01
Edgewise meter selection for normal screen
indication
02
Bar meter selection for normal screen
indication
00
Edgewise meter selection for wide screen
indication
01
Bar meter selection for wide screen indica-
tion
00
Meter peak hold function for Bar meter OFF
01
Meter peak hold function for Bar meter ON
00
Memory name indication OFF
01
Memory name indication ON
00
Audio peak filter width pop-up indication
OFF
01
Audio peak filter width pop-up indication ON
00
Manual notch filter width pop-up indication
OFF
01
Manual notch filter width pop-up indication
ON
00
Screen saver OFF
01
15 minutes selection for screen saver
02
30 minutes selection for screen saver
03
60 minutes selection for screen saver
00
Bound selection for screen saver type
01
Round selection for screen saver type
02
Twist selection for screen saver type
00
Opening screen indication OFF
01
Opening screen indication ON
Send/read date
bis
( 20000101=1st Jan. 2000,
20991231=31st Dec. 2099)
Send/read time
(0000=00:00, 2359=23:59)
00
Clock 2 OFF
01
Clock 2 ON
00
Calibration marker OFF
01
Calibration marker ON
00
Confirmation beep OFF
01
Confirmation beep ON
Befehl Sub-Befehl
Daten
1A
05 0060
00
Band edge beep OFF
01
Band edge beep ON (Beep sounds with a
default amateur band)
02
Band edge beep with user setting ON
03
Band edge beep with user setting/TX limit
ON
0061 0050 bis
Send/read beep audio frequency
0200
(0050=500 Hz, 0200=2000 Hz)
0062
00
Auto selection for [RF/SQL]
01
SQL selection for [RF/SQL]
02
RF+SQL selection for [RF/SQL]
0063
00
Quick dualwatch OFF
01
Quick dualwatch ON
0064
00
Quick split function OFF
01
Quick split function ON
0065 s. S. 166 FM split offset frequency setting for HF
0066 s. S. 166 FM split offset frequency setting for 50 MHz
0067
00
Split lock function OFF
01
Split lock function ON
0068
00
Tuner auto start OFF
01
Tuner auto start ON
0069
00
PTT tune OFF
01
PTT tune ON
0070
00
Antenna selection OFF
01
Manual antenna selection
02
Auto antenna selection
0071
00
Transverter functions automatically
01
Transverter function ON
0072 s. S. 166 Transverter offset frequency
0073
00
1275 Hz selection for RTTY mark frequency
01
1615 Hz selection for RTTY mark frequency
02
2125 Hz selection for RTTY mark frequency
0074
00
170 Hz selection for RTTY shift width
01
200 Hz selection for RTTY shift width
02
425 Hz selection for RTTY shift width
0075
00
RTTY keying with normal polarity
01
RTTY keying with reverse polarity
0076
00
1000 Hz selection for PSK tone frequency
01
1500 Hz selection for PSK tone frequency
02
2000 Hz selection for PSK tone frequency
0077
00
English selection for voice synthesizer
speech language
01
Japanese selection for voice synthesizer
speech language
0078
00
Speech speed slow
01
Speech speed fast
0079
00
S-meter level announcement OFF
01
S-meter announcement ON
0080
00
Operating mode announcement (after
pushing mode switch) OFF
01
Operating mode announcement (after
pushing mode switch) ON
0081
00
[SPEECH/LOCK] key function setting
( Push momentariliy=SPEECH,
Hold down=LOCK)
01
[SPEECH/LOCK] key function setting
( Push momentariliy=LOCK,
Hold down=SPEECH)
0082
00
Number of memo pad channels 5
01
Number of memo pad channels 10
0083
00
Auto TS for main dial OFF
01
Auto TS for main dial ON with LOW
02
Auto TS for main dial ON with HIGH
0084
00
LOW selection for microphone Up/Down
speed
01
HIGH selection for microphone Up/Down
speed
0085
00
Quick RIT/:TX clear OFF
01
Quick RIT/:TX clear ON
0086
00
Auto notch selection for SSB operation
01
Manual notch selection for SSB operation
02
Auto/Manual notch selection for SSB opera-
tion
0087
00
Auto notch selection for AM operation
01
Manual notch selection for AM operation
02
Auto/Manual notch selection for AM ope-
ration
0088
00
SSB/CW synchronous tuning function OFF
01
SSB/CW synchronous tuning function ON
Beschreibung
