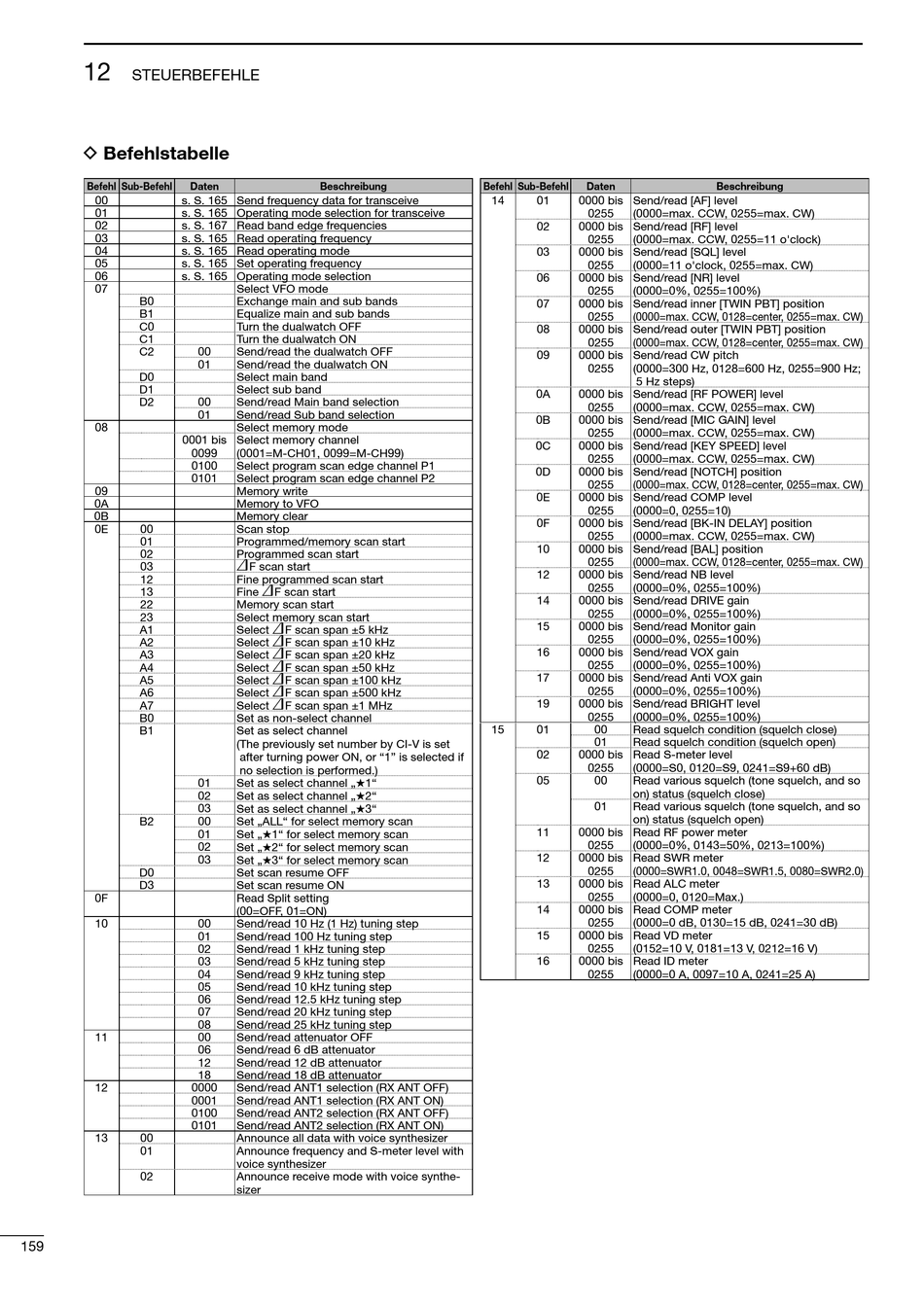

STEUERBEFEHLE
D Befehlstabelle
Befehl Sub-Befehl
Daten
00
s. S. 165 Send frequency data for transceive
01
s. S. 165 Operating mode selection for transceive
02
s. S. 167 Read band edge frequencies
03
s. S. 165 Read operating frequency
04
s. S. 165 Read operating mode
05
s. S. 165 Set operating frequency
06
s. S. 165 Operating mode selection
07
B0
B1
C0
C1
C2
D0
D1
D2
08
0001 bis
0099
0100
0101
09
0A
0B
0E
00
01
02
03
12
13
22
23
A1
A2
A3
A4
A5
A6
A7
B0
B1
B2
D0
D3
0F
10
11
12
0000
0001
0100
0101
13
00
01
02
159
Beschreibung
Select VFO mode
Exchange main and sub bands
Equalize main and sub bands
Turn the dualwatch OFF
Turn the dualwatch ON
00
Send/read the dualwatch OFF
01
Send/read the dualwatch ON
Select main band
Select sub band
00
Send/read Main band selection
01
Send/read Sub band selection
Select memory mode
Select memory channel
(0001=M-CH01, 0099=M-CH99)
Select program scan edge channel P1
Select program scan edge channel P2
Memory write
Memory to VFO
Memory clear
Scan stop
Programmed/memory scan start
Programmed scan start
:F scan start
Fine programmed scan start
Fine :F scan start
Memory scan start
Select memory scan start
Select :F scan span ±5 kHz
Select :F scan span ±10 kHz
Select :F scan span ±20 kHz
Select :F scan span ±50 kHz
Select :F scan span ±100 kHz
Select :F scan span ±500 kHz
Select :F scan span ±1 MHz
Set as non-select channel
Set as select channel
( The previously set number by CI-V is set
after turning power ON, or "1" is selected if
no selection is performed.)
01
Set as select channel „★1"
02
Set as select channel „★2"
03
Set as select channel „★3"
00
Set „ALL" for select memory scan
01
Set „★1" for select memory scan
02
Set „★2" for select memory scan
03
Set „★3" for select memory scan
Set scan resume OFF
Set scan resume ON
Read Split setting
(00=OFF, 01=ON)
00
Send/read 10 Hz (1 Hz) tuning step
01
Send/read 100 Hz tuning step
02
Send/read 1 kHz tuning step
03
Send/read 5 kHz tuning step
04
Send/read 9 kHz tuning step
05
Send/read 10 kHz tuning step
06
Send/read 12.5 kHz tuning step
07
Send/read 20 kHz tuning step
08
Send/read 25 kHz tuning step
00
Send/read attenuator OFF
06
Send/read 6 dB attenuator
12
Send/read 12 dB attenuator
18
Send/read 18 dB attenuator
Send/read ANT1 selection (RX ANT OFF)
Send/read ANT1 selection (RX ANT ON)
Send/read ANT2 selection (RX ANT OFF)
Send/read ANT2 selection (RX ANT ON)
Announce all data with voice synthesizer
Announce frequency and S-meter level with
voice synthesizer
Announce receive mode with voice synthe-
sizer
Befehl Sub-Befehl
Daten
14
01
0000 bis
Send/read [AF] level
0255
(0000=max. CCW, 0255=max. CW)
02
0000 bis
Send/read [RF] level
0255
(0000=max. CCW, 0255=11 o'clock)
03
0000 bis
Send/read [SQL] level
0255
(0000=11 o'clock, 0255=max. CW)
06
0000 bis
Send/read [NR] level
0255
(0000=0%, 0255=100%)
07
0000 bis
Send/read inner [TWIN PBT] position
0255
(0000=max. CCW, 0128=center, 0255=max. CW)
08
0000 bis
Send/read outer [TWIN PBT] position
0255
(0000=max. CCW, 0128=center, 0255=max. CW)
09
0000 bis
Send/read CW pitch
0255
( 0000=300 Hz, 0128=600 Hz, 0255=900 Hz;
5 Hz steps)
0A
0000 bis
Send/read [RF POWER] level
0255
(0000=max. CCW, 0255=max. CW)
0B
0000 bis
Send/read [MIC GAIN] level
0255
(0000=max. CCW, 0255=max. CW)
0C
0000 bis
Send/read [KEY SPEED] level
0255
(0000=max. CCW, 0255=max. CW)
0D
0000 bis
Send/read [NOTCH] position
0255
(0000=max. CCW, 0128=center, 0255=max. CW)
0E
0000 bis
Send/read COMP level
0255
(0000=0, 0255=10)
0F
0000 bis
Send/read [BK-IN DELAY] position
0255
(0000=max. CCW, 0255=max. CW)
10
0000 bis
Send/read [BAL] position
0255
(0000=max. CCW, 0128=center, 0255=max. CW)
12
0000 bis
Send/read NB level
0255
(0000=0%, 0255=100%)
14
0000 bis
Send/read DRIVE gain
0255
(0000=0%, 0255=100%)
15
0000 bis
Send/read Monitor gain
0255
(0000=0%, 0255=100%)
16
0000 bis
Send/read VOX gain
0255
(0000=0%, 0255=100%)
17
0000 bis
Send/read Anti VOX gain
0255
(0000=0%, 0255=100%)
19
0000 bis
Send/read BRIGHT level
0255
(0000=0%, 0255=100%)
15
01
00
Read squelch condition (squelch close)
01
Read squelch condition (squelch open)
02
0000 bis
Read S-meter level
0255
(0000=S0, 0120=S9, 0241=S9+60 dB)
05
00
Read various squelch (tone squelch, and so
on) status (squelch close)
01
Read various squelch (tone squelch, and so
on) status (squelch open)
11
0000 bis
Read RF power meter
0255
(0000=0%, 0143=50%, 0213=100%)
12
0000 bis
Read SWR meter
0255
( 0000=SWR1.0, 0048=SWR1.5, 0080=SWR2.0)
13
0000 bis
Read ALC meter
0255
(0000=0, 0120=Max.)
14
0000 bis
Read COMP meter
0255
(0000=0 dB, 0130=15 dB, 0241=30 dB)
15
0000 bis
Read VD meter
0255
(0152=10 V, 0181=13 V, 0212=16 V)
16
0000 bis
Read ID meter
0255
(0000=0 A, 0097=10 A, 0241=25 A)
